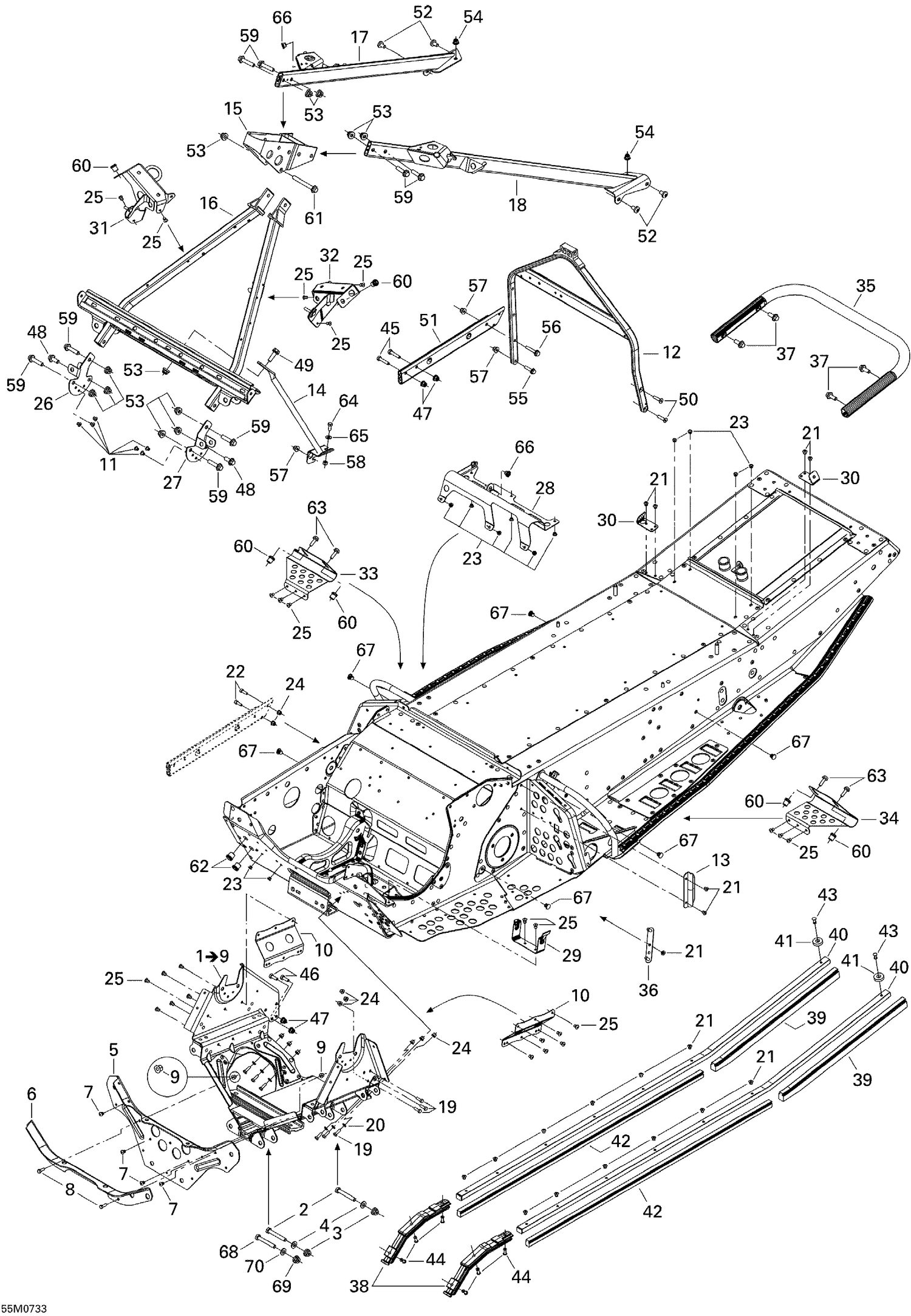

09- Frame and Components
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207085544 | Hex. Screw M8 X 55 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 234081410 | Flat Washer 8 mm |
| 5 | 518325422 | FRONT PLATE - Call your local BRP dealership |
| 6 | 518324107 | Plate Reinforcement |
| 7 | 390909100 | Avex Rivet |
| 8 | 207151644 | Hex. Screw M5 X 16 |
| 9 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 10 | 518324181 | CORNER REINFORCEMENT - Call your local BRP dealership |
| 11 | 390402200 | Pop Rivet 3/16" |
| 12 | 518324505 | HANDLE SUPPORT - Call your local BRP dealership |
| 13 | 518317504 | CABLE PROTECTOR - Call your local BRP dealership |
| 14 | 518323472 | BRACE, BLACK - Call your local BRP dealership |
| 15 | 518323854 | BRACKET BLOCK - Call your local BRP dealership |
| 16 | 518324574 | UPPER CROSS MEMBER - Call your local BRP dealership |
| 17 | 518324182 | RH MEMBER - Call your local BRP dealership |
| 18 | 518324183 | LH Member |
| 19 | 207151644 | Hex. Screw M5 X 16 |
| 20 | 234051410 | Flat Washer M5 |
| 21 | 390402200 | Pop Rivet 3/16" |
| 22 | 205051644 | Socket Screw M5 X 16 |
| 23 | 390402400 | Pop Rivet 3/16" |
| 24 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 25 | 390909200 | Avex Rivet |
| 26 | 518325014 | RH SHOCK BRACKET - Call your local BRP dealership |
| 27 | 518325015 | LH SHOCK BRACKET - Call your local BRP dealership |
| 28 | 518323532 | INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership |
| 29 | 518322726 | GUARD BELT BRACKET, BLACK - Call your local BRP dealership |
| 30 | 518323274 | Trunk Bracket, Black |
| 31 | 518323535 | RH Console Support |
| 32 | 518323536 | LH Console Support |
| 33 | 518324391 | RH TOE HOLD - Call your local BRP dealership |
| 34 | 518324392 | LH TOE HOLD - Call your local BRP dealership |
| 35 | 518324465 | REAR BUMPER - Call your local BRP dealership |
| 36 | 518323896 | TRUNK BRACKET, BLACK - Call your local BRP dealership |
| 37 | 236282084 | Hex. Screw M8 X 20 |
| 38 | 518324071 | Front Protector |
| 39 | 518325020 | Protector |
| 40 | 518325016 | FRAME PROTECTOR - Call your local BRP dealership |
| 41 | 510004418 | WASHER - Call your local BRP dealership |
| 42 | 518325017 | Protector |
| 43 | 390407200 | Pop Rivet 3/16” |
| 44 | 390410100 | Pop Rivet 3/16” |
| 45 | 207063044 | Hex. Screw M6 X 30 |
| 46 | 207161844 | Hex. Screw M6 X 18 |
| 47 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 48 | 207682044 | Hex. Flange Screw M8 X 20 |
| 49 | 207682544 | Hex. Flange Screw M8 X 25 |
| 50 | 205862044 | Socket Head Screw M6 X 20, Scotch Grip |
| 51 | 518324096 | RH Tunnel Stiffener |
| 52 | 250000887 | Pan Head Torx Screw M8 X 12 This part replaces 250000154. |
| 53 | 233281414 | Hex. Flange Elastic Nut M8 |
| 54 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 55 | 207662544 | Hex. Flange Screw M6 X 25 |
| 56 | 207663544 | Hex. Flange Screw M6 X 35 |
| 57 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 58 | 232561414 | Elastic Stop Nut M6 |
| 59 | 207683544 | Hex. Flange Screw M8 X 35 |
| 60 | 293450275 | Insert This part replaces 415107300. |
| 61 | 207687044 | Hex. Flange Screw M8 X 70 |
| 62 | 293450166 | Insert |
| 63 | 207662044 | Hex. Flange Screw M6 X 20 |
| 64 | 207161444 | Hex. Screw M6 X 14 |
| 65 | 224061121 | Flat Washer |
| 66 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 67 | 518321954 | Panel Fastener |
| 68 | 207085544 | Hex. Screw M8 X 55 |
| 69 | 233281414 | Hex. Flange Elastic Nut M8 |
