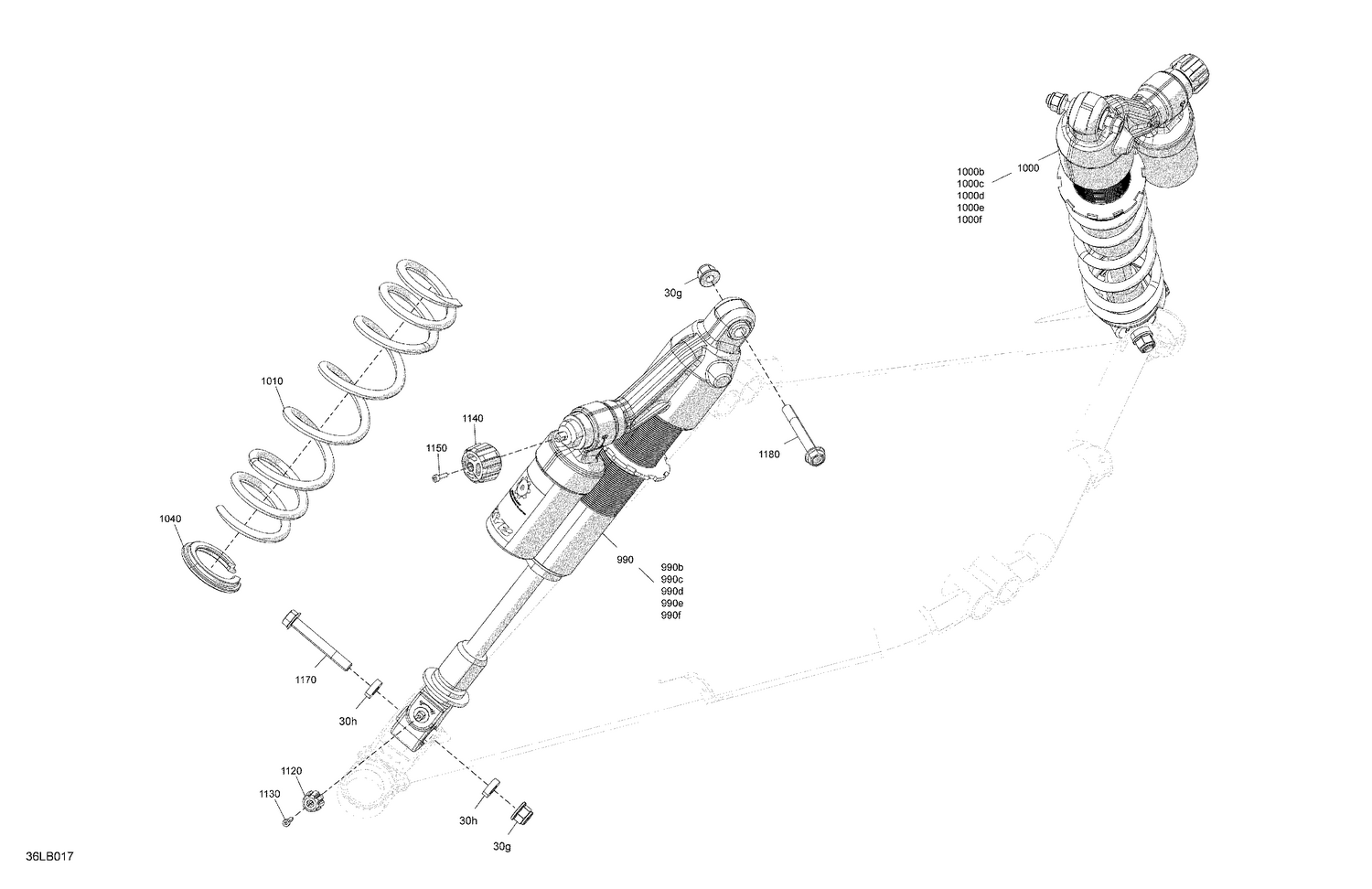

05- Suspension - Front Shocks
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 30g | 233281466 | Elastic Flang Nut M8 |
| 30h | 505073892 | Spacer |
| 990b | 415093807 | O-Ring |
| 990c | 415093806 | Piston Ring |
| 990d | 505070400 | O-Ring |
| 990e | 505070399 | Screw |
| 990f | 415093804 | O-Ring |
| 1000b | 415093807 | O-Ring |
| 1000c | 415093806 | Piston Ring |
| 1000d | 505070400 | O-Ring |
| 1000e | 505070399 | Screw |
| 1000f | 415093804 | O-Ring |
| 1010 | 505074548 | Black, Spring 280 MM 22 N/MM |
| 1040 | 503194270 | Spring Stopper |
| 1120 | 505072753 | Adjustment Knob |
| 1130 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1140 | 503193033 | Shock Adjuster Knob |
| 1150 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1170 | 250000824 | Hexagonal Flange Screw M8 X 58 |
