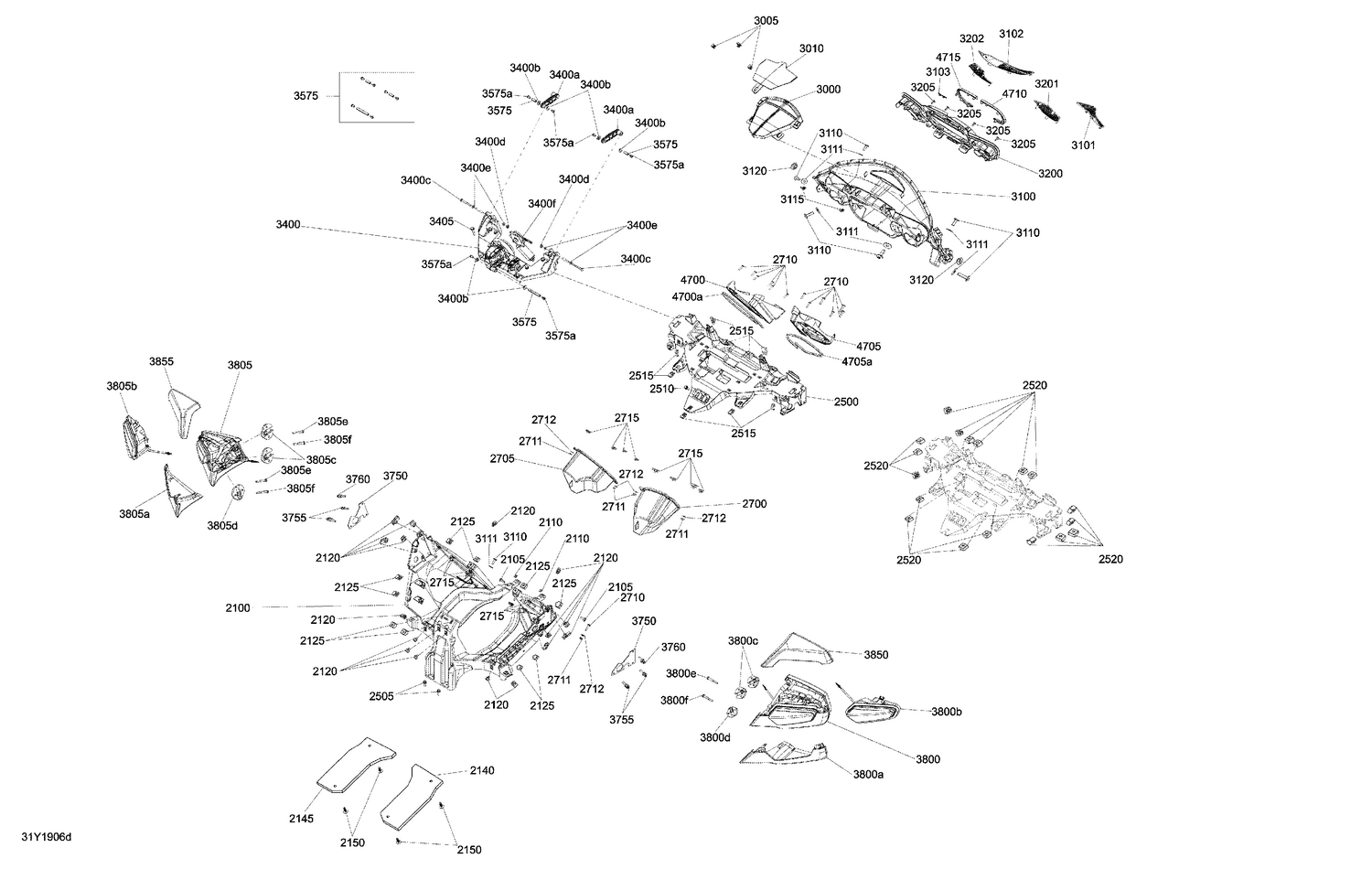

09- System Console - Front Console, Mirrors & Supports
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 2100 | 705002743 | Console Support |
| 2105 | 250000712 | Torx Screw M6 X 20 |
| 2110 | 232862412 | Square Nut M6 |
| 2120 | 250100198 | Panel Nut M6 X 1.0 |
| 2125 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 2140 | 707800349 | LH Acoustic Foam |
| 2145 | 707800341 | RH Acoustic Foam |
| 2150 | 293730006 | Black, Dart |
| 2500 | 705012150 | Console Cross-support |
| 2505 | 210261650 | Hex. Flange Screw M6 X 16 |
| 2510 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2515 | 250100198 | Panel Nut M6 X 1.0 |
| 2520 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 2700 | 705011996 | LH Speaker Housing Ass'y |
| 2705 | 705011997 | RH Speaker Housing Ass'y |
| 2710 | 250000762 | Torx Screw M5 X 25 |
| 2711 | 250100071 | Hex. Flange Nut M5 |
| 2712 | 250200025 | Washer M5 |
| 2715 | 250000958 | Panel Nut M5 X 0.8 |
| 3000 | 705002746 | Guide Chart Support |
| 3005 | 517302785 | Edge Clip |
| 3010 | 705009360 | Guide Chart |
| 3100 | 705006656 | Dashboard |
| 3101 | 705011416 | LH Lower Speaker Grille |
| 3102 | 705011417 | RH Lower Speaker Grille |
| 3110 | 250000722 | Torx Screw M6 X 20 |
| 3111 | 250200164 | Flat washer M6 |
| 3115 | 250000958 | Panel Nut M5 X 0.8 |
| 3120 | 705000321 | Oval Washer |
| 3200 | 705011418 | Dashboard Bezel |
| 3201 | 705011603 | LH Upper Speaker Grille |
| 3202 | 705011605 | RH Upper Speaker Grille |
| 3205 | 250000742 | Torx Screw M5 X 14 |
| 3400b | 705003267 | Sleeve |
| 3400c | 207065060 | Hex. Screw M6 X 50 |
| 3400d | 232561200 | Brass Elastic Stop Nut M6 |
| 3400e | 234061600 | Stainless Flat Washer M6 |
| 3400f | 278002579 | Windshield Motor |
| 3405 | 207663544 | Hex. Flange Screw M6 X 35 |
| 3560 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 3575a | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 3750 | 705003779 | Console Support Plate |
| 3755 | 705004322 | Spherical Head Stud |
| 3760 | 705004323 | Spherical Head Stud |
| 3800a | 705003148 | LH Lower Mirror Shell |
| 3800b | 710001510 | LH Front Flasher Unit |
| 3800c | 219800156 | Housing with Spring |
| 3800d | 219800158 | Housing with Spring |
| 3800e | 219800118 | Screw |
| 3800f | 219800157 | Screw 2.9 X 12.5 |
| 3805a | 705003159 | RH Lower Mirror Shell |
| 3805b | 710001511 | RH Front Flasher Unit |
| 3805c | 219800156 | Housing with Spring |
| 3805d | 219800158 | Housing with Spring |
| 3805e | 219800118 | Screw |
| 3805f | 219800157 | Screw 2.9 X 12.5 |
| 3850 | 705007405 | Vegas White Pearl, LH Upper Mirror Shell |
| 3855 | 705007406 | TRIM_REAR VIEW MIRROR UP R B-313 - Call your local BRP dealership |
| 4700a | 219704373 | Seal 1000Mm Long |
| 4705a | 219704373 | Seal 1000Mm Long |
| 4710 | 705012349 | Deep Black, LH Trim Gauge |
