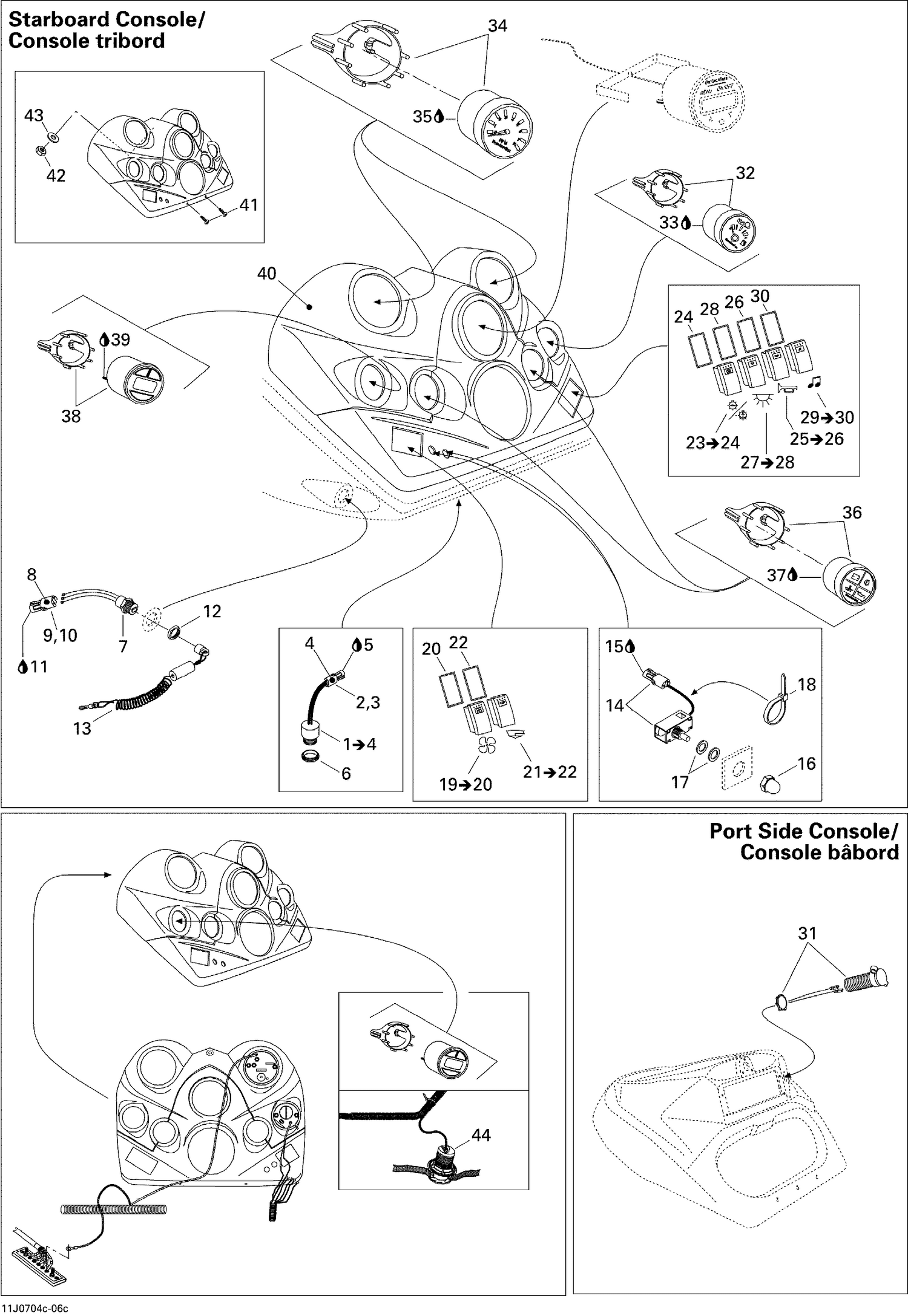

| Ref | Part Number | Description |
|---|
| 2 |
278000222 |
Male Terminal |
| 3 |
278000218 |
Wire Seal |
| 4 |
278000217 |
Female Housing, 2 Circuits |
| 5 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 6 |
278000707 |
Buzzer Nut |
| 7 |
278002773 |
Safety Switch This part replaces 278001734. |
| 8 |
278000273 |
Male Housing, 3 Circuits |
| 9 |
278000218 |
Wire Seal |
| 10 |
278000223 |
Female Terminal |
| 11 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 12 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 13 |
204471206 |
Safety Lanyard This part replaces 204471099. |
| 14 |
278000621 |
IGNITION SWITCH - Call your local BRP dealership |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 16 |
278000565 |
IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 17 |
204100027 |
FLAT WASHER - Call your local BRP dealership |
| 18 |
293750002 |
Tie Wrap 142 mm |
| 20 |
204470132 |
Gasket |
| 22 |
204470132 |
Gasket |
| 24 |
204470132 |
Gasket |
| 26 |
204470132 |
Gasket |
| 28 |
204470132 |
Gasket |
| 30 |
204470132 |
Gasket |
| 31 |
710001248 |
DC Outlet This part replaces 204470907. |
| 32 |
204471128 |
FUEL GAUGE - Call your local BRP dealership |
| 33 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 34 |
204470958 |
TACHOMETER GAUGE - Call your local BRP dealership |
| 35 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 36 |
204471130 |
ENGINE WARNING GAUGE - Call your local BRP dealership |
| 37 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 38 |
204470917 |
DEPTH GAUGE - Call your local BRP dealership |
| 39 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 40 |
204471150 |
Fascia |
| 41 |
202000203 |
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
| 42 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 43 |
234082600 |
Flat Washer 8 mm, Stainless |
