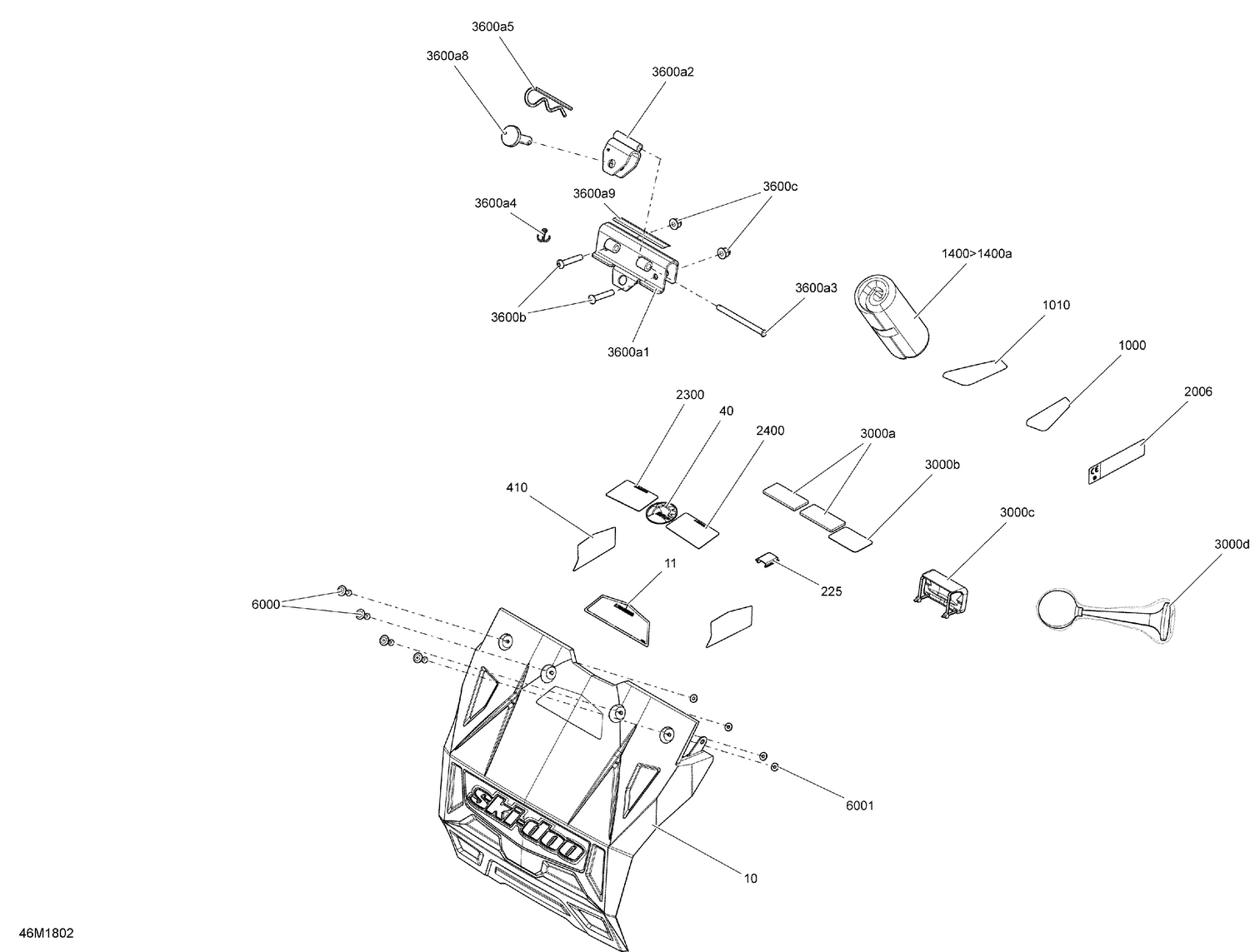

09- Utilities Expedition 600 ACE & 900 ACE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001340 | Snow Guard |
| 11 | 516005175 | Warning Decal, Track |
| 40 | 516008738 | BRP Logo 48mm |
| 225 | 520000829 | Radiator Trim |
| 1000 | 520001237 | Yellow, RH Front Reflector |
| 1010 | 520001236 | Yellow, LH Front Reflector |
| 1400a | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 2300 | 516006908 | Warning Decal |
| 2400 | 516005587 | RH Warning Decal, Safety |
| 3600a3 | 511001451 | Lock Pin This part replaces 511000520. |
| 3600a4 | 371800200 | Cotter Pin |
| 3600a9 | 516004568 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 3600b | 205484546 | Socket Head Screw M8 X 45 |
| 6000 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
