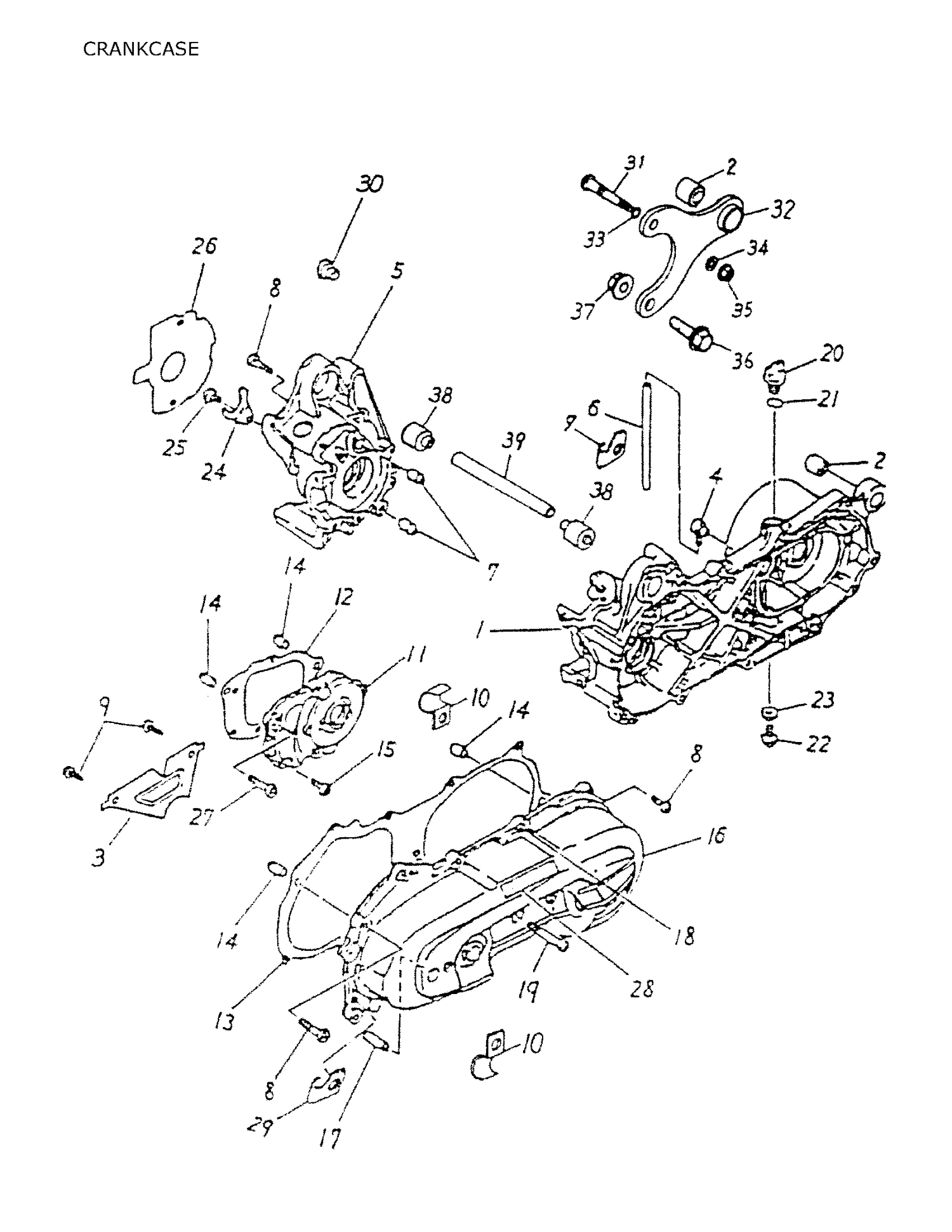

01- Crankcase — Parts Catalog

Parts (38)

Ref	Part Number	Description
1	A11201116000	Left Crankcase
2	A96400082020	Rubber Bushing
3	A11342116000	Plate L Cover
4	A1661010400A	Breather Hose Head
5	A11101116000	Right Crankcase
6	A944000408A130	Breather Hose
7	A9430112160	Dowel Pin
8	A9100006035	Hex. Socket Bolt M6 X 35
9	A9390304008	Tapping Screw Truss Head Phillips M4 X 8
10	A1135112000A	Clamper
11	A21301116000	MISSION COVER - Call your local BRP dealership
12	A21395116000	Mission Cover Gasket
13	A11359116000	Crankcase Cover Gasket
14	A9430110140	Dowel Pin
15	205062044	Socket Head Screw M6 X 20 This part replaces A9100006020.
16	A1134111600B	LEFT CRANKCASE COVER - Call your local BRP dealership
17	A96300080320	SHAFT IDLER - Call your local BRP dealership
18	V9100006025LL	Hexagonal Bolt M6 X 25 This part replaces A9100006025.
19	420240373	ALLEN SCREW M6 X 60 - Call your local BRP dealership This part replaces A9100006060.
20	A15650110000	OIL PLUG - Call your local BRP dealership
21	A91312104000	OIL RING - Call your local BRP dealership
22	A960000801512	Hex. Washer Face Bolt M8 X 15
23	A941010813010	COPPER PLAIN WASHER M8 - Call your local BRP dealership
24	A11111104000	Oil Seal Bracket
25	A9100006010	Hex. Socket Bolt M6 X 10
26	A11121116000	GENERATOR GASKET - Call your local BRP dealership
27	205063044	Socket Head Screw M6 X 30 This part replaces A9100006030.
28	704900289	Bombardier Label
29	A11351104000	Carburetor Tube Bracket
30	A11102116000	Protect Shroud
31	A45110145000	Fix Shaft
32	A11202145000	Crankcase Bracket
33	A91307101000	OIL RING - Call your local BRP dealership
34	A941010815015	Plain Washer, 8 X 15 X 1.5
35	233081416	Hex. Flange Nut M8 This part replaces A9405008000.
36	A960001204017	Hex. Washer Face Bolt M12 X 40
