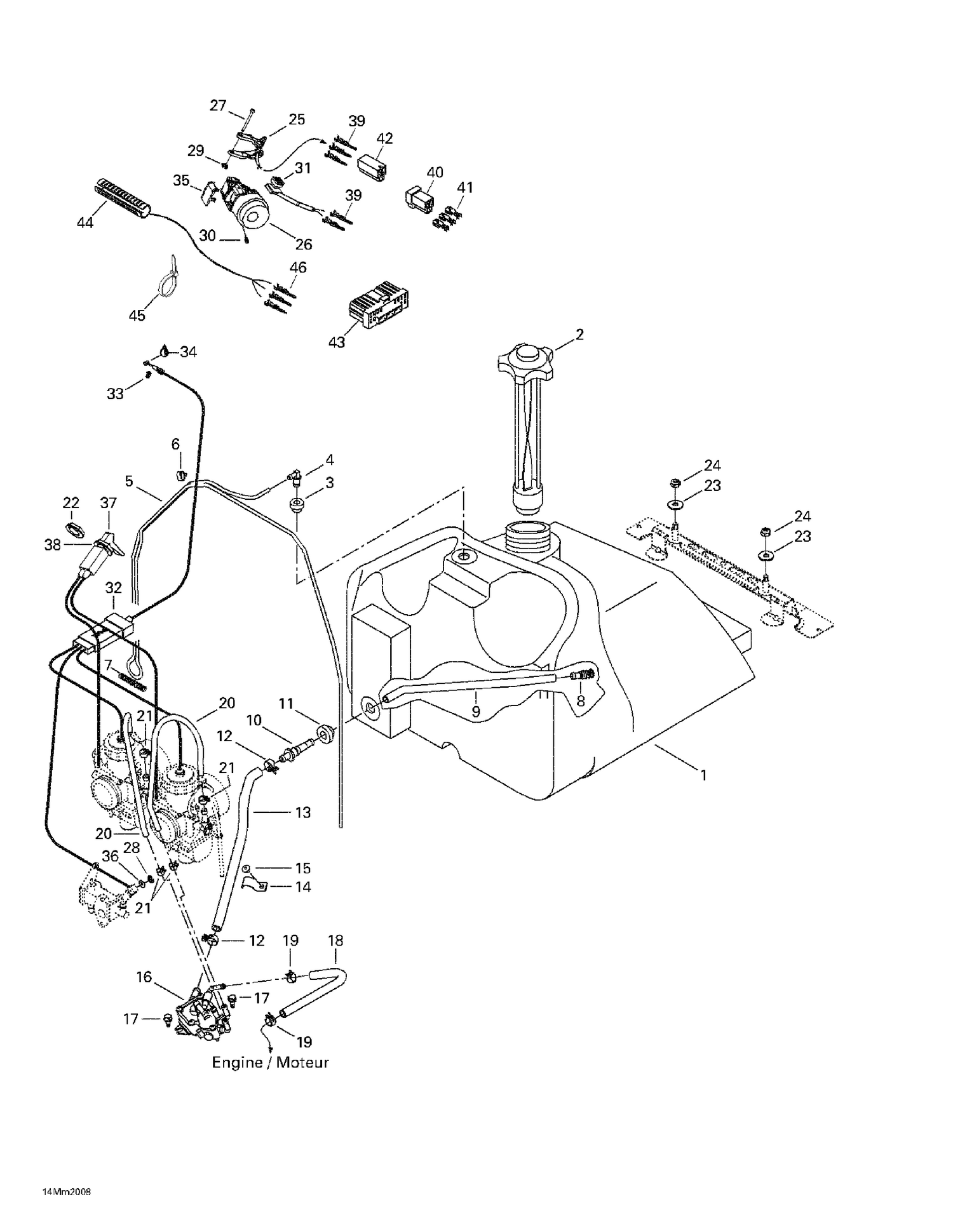

02- Fuel System
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513032987 | Fuel Tank |
| 2 | 513033020 | Fuel Tank Cap This part replaces 513032901. |
| 3 | 513032908 | Grommet |
| 4 | 414814100 | Male Connector |
| 5 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 6 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 7 | 414818200 | SPRING - Call your local BRP dealership |
| 8 | 414872100 | Fuel Filter Strainer |
| 9 | 415005700 | Hose |
| 10 | 414872700 | Male Connector |
| 11 | 707800347 | Grommet This part replaces 570273900. |
| 12 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 13 | 513032903 | Formed Hose |
| 14 | 415018200 | CLIP - Call your local BRP dealership |
| 15 | 390406500 | Pop Rivet 3/16" |
| 16 | 403901800 | Fuel Pump |
| 17 | 210361280 | HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 18 | 219704549 | Hose This part replaces 219704439. |
| 19 | 414415200 | Spring Clamp |
| 20 | 415117800 | Tube |
| 21 | 414420700 | Spring Clamp |
| 22 | 512059094 | PLASTIC NUT - Call your local BRP dealership |
| 23 | 234082410 | Flat Washer 8 mm |
| 24 | 232581414 | Hex. Elastic Stop Nut M8 |
| 25 | 572101900 | Handle Ass'y 40 mm |
| 26 | 572100900 | Throttle Handle Housing |
| 27 | 414438700 | Lever Pin |
| 28 | 414753500 | Circlip |
| 29 | 414439000 | Circlip |
| 30 | 414440800 | Socket Set Screw M8 X 10 |
| 31 | 515175410 | Kill Switch |
| 32 | 512058902 | Throttle Cable |
| 33 | 414274500 | Circlip |
| 34 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 35 | 572100901 | Switch Cover |
| 36 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 38 | 394103300 | Lock Washer, Interior Teeth |
| 39 | 515175232 | Male Terminal |
| 40 | 515175495 | Female Housing, 3 Circuits |
| 41 | 515175231 | Female Terminal |
| 42 | 515175494 | Male Housing, 3 Circuits |
| 43 | 515175352 | MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 44 | 515175573 | Heating Grip This part replaces 515175389. |
