| Ref | Part Number | Description |
|---|
| 1 |
0432761 |
NEEDLE VALVE, Slow speed This part replaces 0332917. |
| 3 |
0329513 |
SCREW, Float bowl |
| 17 |
0315232 |
RETAINER , Needle valve stbd |
| 18 |
0439383 |
FLOAT CHAMBER This part replaces 0393131. |
| 19 |
0328544 |
ORIFICE PLUG, (No. 63D) |
| 25 |
0329594 |
SCREW, Cam follower |
| 26 |
0313329 |
LOCKWASHER, Carburetor link |
| 27 |
0325092 |
GASKET |
| 28 |
0316355 |
BUT, Carburetor mounting |
| 29 |
0328063 |
ADJUSTING KNOB, Slow speed |
| 30 |
0328907 |
COLLIER, amorçage vers support |
| 31 |
0331036 |
VIS, attache de palier |
| 0398079 |
0398079 |

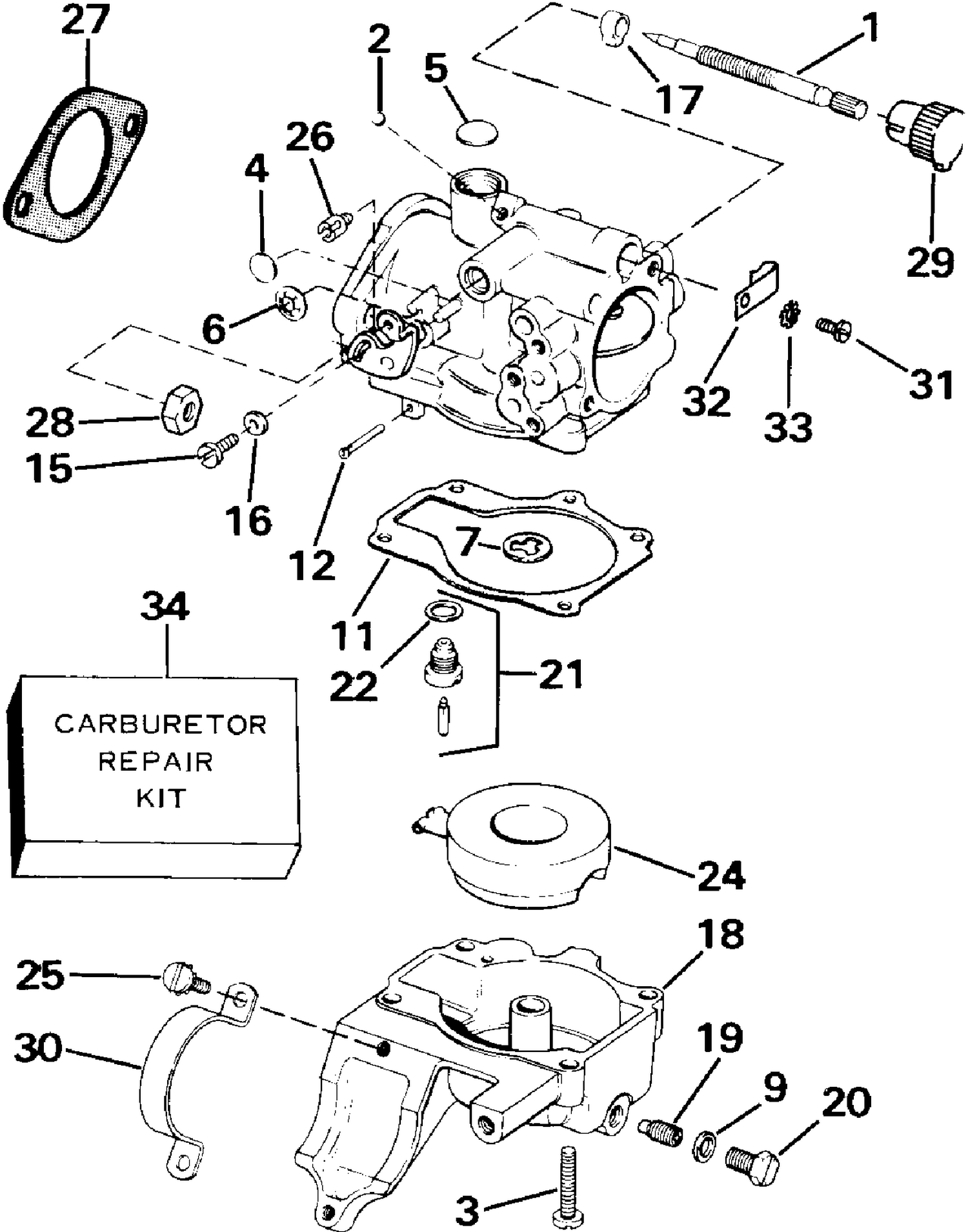

CARBURETOR ASSY. |
