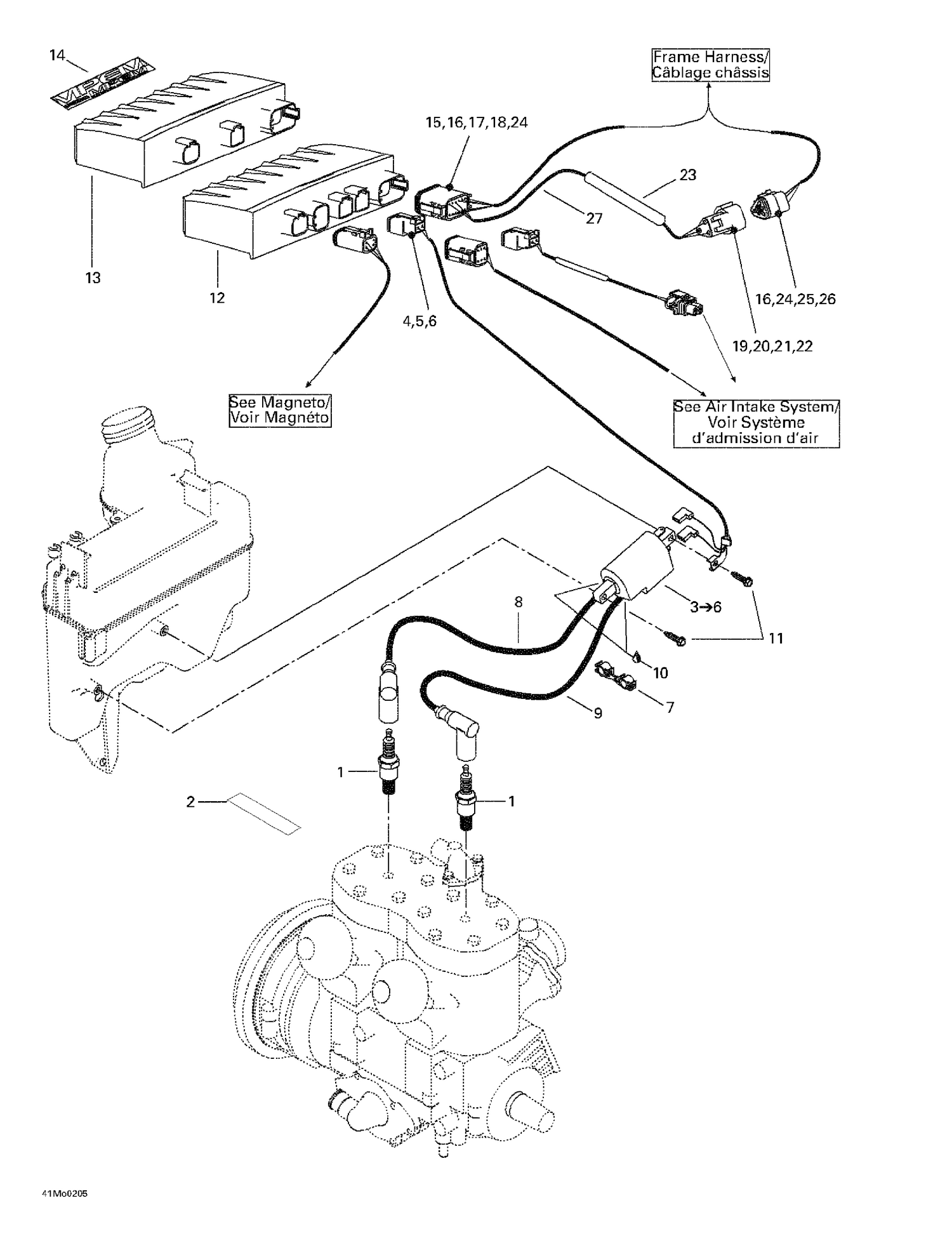

| Ref | Part Number | Description |
|---|
| 2 |
516000986 |
Spark Plug Decal |
| 4 |
409207300 |
Female Connector, 2 Circuits |
| 5 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 6 |
278000632 |
Female Terminal |
| 7 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 8 |
512059696 |
Cable Ass’y, 375 mm This part replaces 512059485. |
| 9 |
512059486 |
CABLE ASSY, 455 MM - Call your local BRP dealership |
| 10 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 14 |
516000245 |
Electrical Box Decal |
| 15 |
515175704 |
FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership |
| 16 |
278000632 |
Female Terminal |
| 17 |
515175679 |
FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership |
| 18 |
293000052 |
Sealing Cap |
| 19 |
515175666 |
Male Housing |
| 20 |
278000631 |
Male Terminal |
| 21 |
515175823 |
Male Terminal |
| 22 |
409207600 |
Male Lock, 3 Circuits |
| 23 |
409901300 |
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership |
| 24 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 25 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 26 |
409207200 |
Female Lock |
