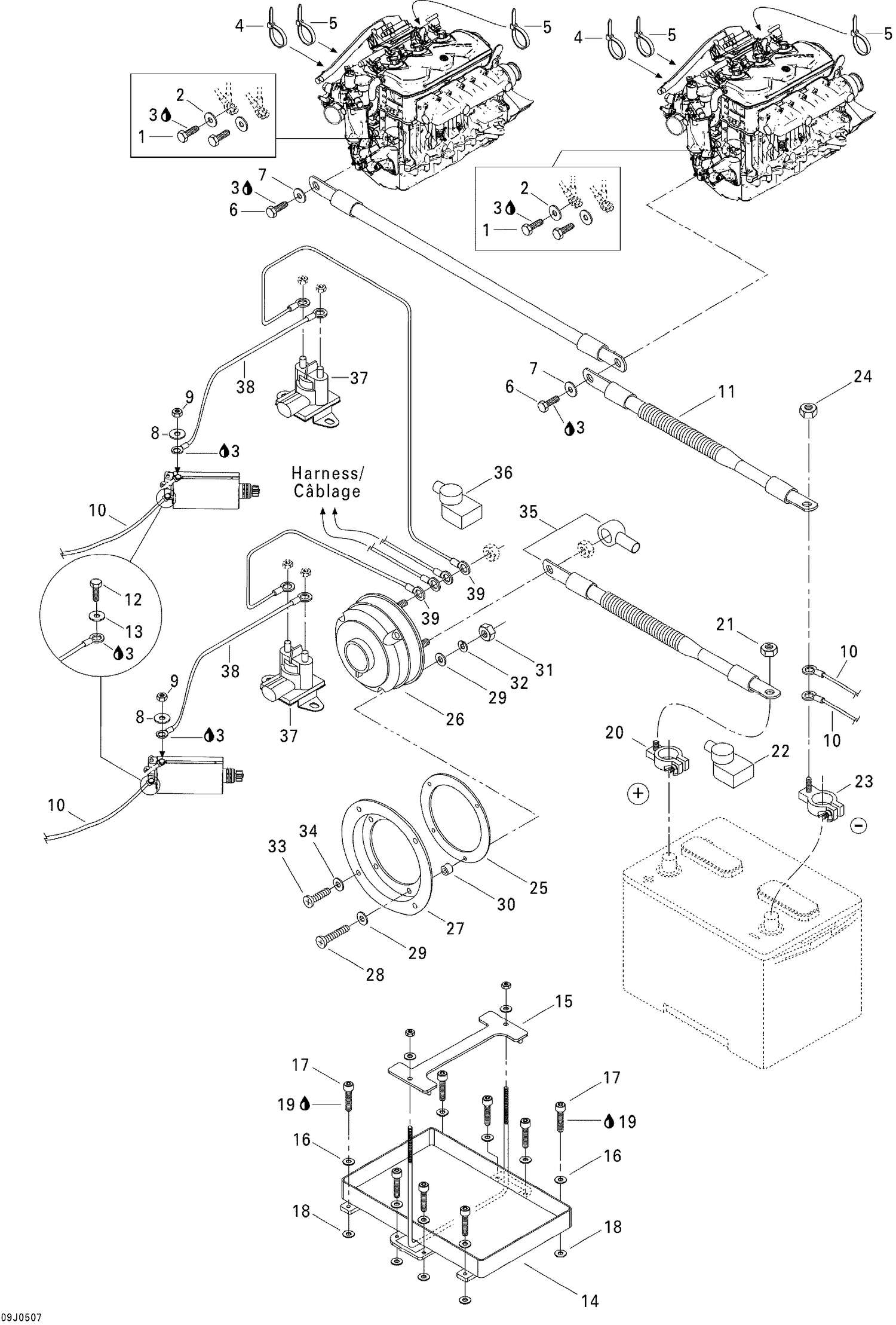

| Ref | Part Number | Description |
|---|
| 1 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 2 |
234061600 |
Stainless Flat Washer M6 |
| 3 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 4 |
414115200 |
Tie-Rap 180 mm |
| 5 |
293750002 |
Tie Wrap 142 mm |
| 6 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 7 |
234062600 |
Flat Washer M6, Stainless |
| 8 |
234061600 |
Stainless Flat Washer M6 |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
204470840 |
GROUND CABLE, STARBOARD - Call your local BRP dealership |
| 10 |
204470854 |
GROUND CABLE, PORT SIDE - Call your local BRP dealership |
| 11 |
204470839 |
GROUND CABLE - Call your local BRP dealership |
| 12 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 13 |
234061600 |
Stainless Flat Washer M6 |
| 14 |
204471008 |
BATTERY SUPPORT - Call your local BRP dealership |
| 15 |
204471290 |
TOP BATTERY SUPPORT - Call your local BRP dealership This part replaces 204470909. |
| 16 |
204100069 |
FLAT WASHER - Call your local BRP dealership |
| 17 |
205062560 |
Socket Head Screw M6 X 25 |
| 18 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 20 |
204470349 |
POSITIVE BATTERY POLE - Call your local BRP dealership |
| 21 |
211100063 |
HEX. NUT 3/8-16 - Call your local BRP dealership |
| 22 |
204470269 |
RED BOOT - Call your local BRP dealership |
| 23 |
204470348 |
NEGATIVE BATTERY POLE - Call your local BRP dealership |
| 24 |
204100052 |
HEX. NUT 5/16?-18 - Call your local BRP dealership |
| 25 |
204470813 |
SWITCH ADAPTOR - Call your local BRP dealership |
| 26 |
204470814 |
BATTERY SWITCH - Call your local BRP dealership |
| 27 |
204470259 |
SWITCH SUPPORT - Call your local BRP dealership |
| 28 |
205455060 |
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership |
| 29 |
234051600 |
Flat Washer M5, Stainless |
| 30 |
204470330 |
NYLON SPACER - Call your local BRP dealership |
| 31 |
232051600 |
Hex. Nut M5 |
| 32 |
234151601 |
Helical Lock Washer M5 |
| 33 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 34 |
234041600 |
Flat Washer 4 mm, Stainless |
| 35 |
204470250 |
POSITIVE SWITCH CABLE - Call your local BRP dealership |
| 36 |
204470269 |
RED BOOT - Call your local BRP dealership |
| 37 |
278003012 |
Starter Relay This part replaces 278001802. |
| 38 |
204470852 |
Red Cable |
| 39 |
204470853 |
RED CABLE - Call your local BRP dealership |
