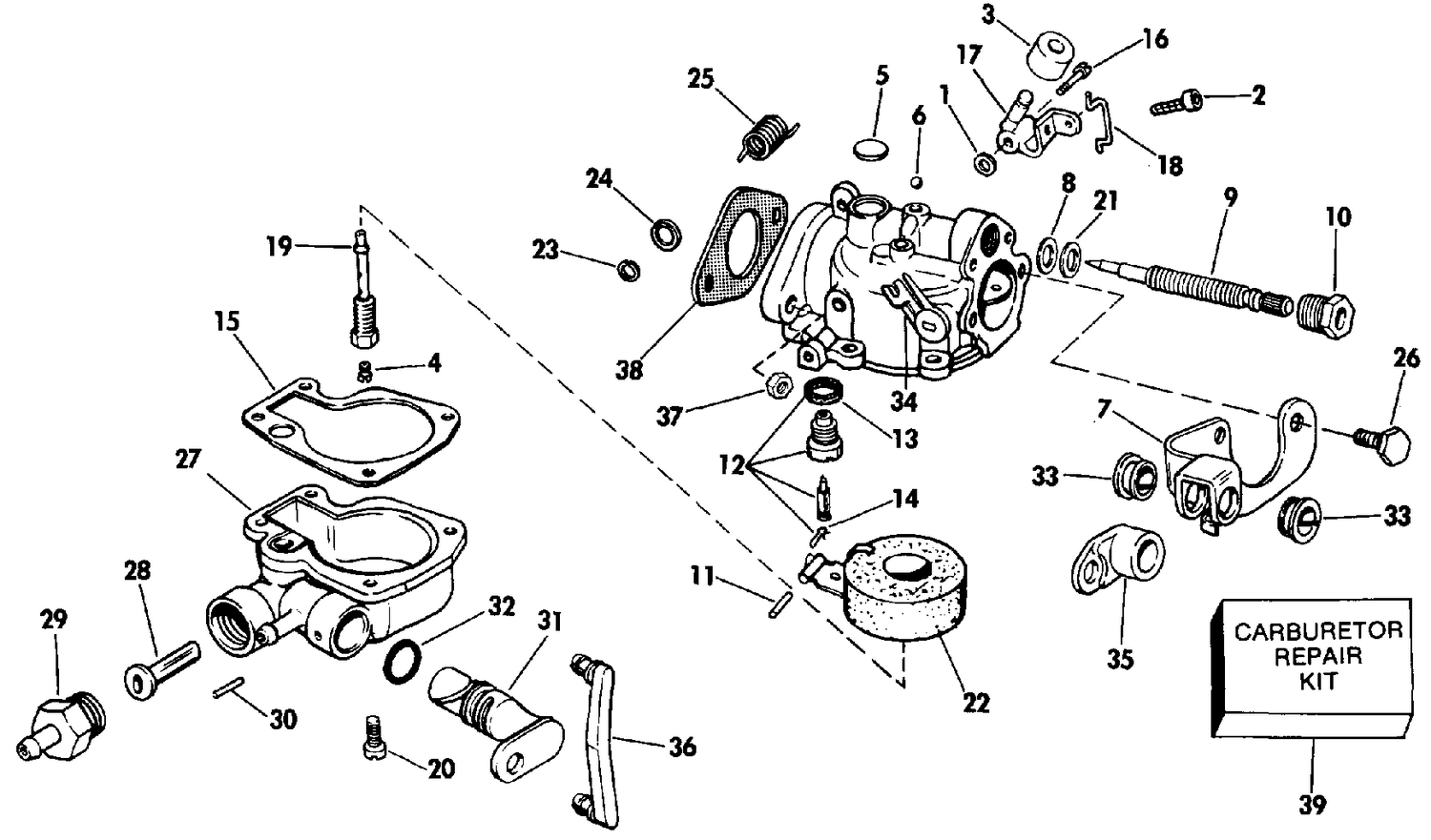

| Ref | Part Number | Description |
|---|
| 7 |
0325050 |
ADAPTER, Choke plate to carb |
| 9 |
0431634 |
NEEDLE VALVE ASSY., Slow speed adjustment This part replaces 0332119. |
| 14 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 15 |
0338878 |
GASKET This part replaces 0331499. |
| 18 |
0330192 |
LINK, Cam follower |
| 19 |
0323410 |
NOZZLE, High speed |
| 20 |
0330133 |
SCREW, Breaker plate |
| 23 |
0203949 |
E RING LINK This part replaces 0202755. |
| 26 |
0322285 |
PLATE & SLEEVE ASSY. |
| 27 |
0330881 |
FLOAT CHAMBER |
| 33 |
0318194 |
BUSHING |
| 34 |
0324658 |
LEVER, Choke shaft |
| 37 |
0328742 |
NUT This part replaces 0306338. |
| 38 |
0323452 |
GASKET |
| 0397413 |
0397413 |
CARBURETOR ASSY. |
