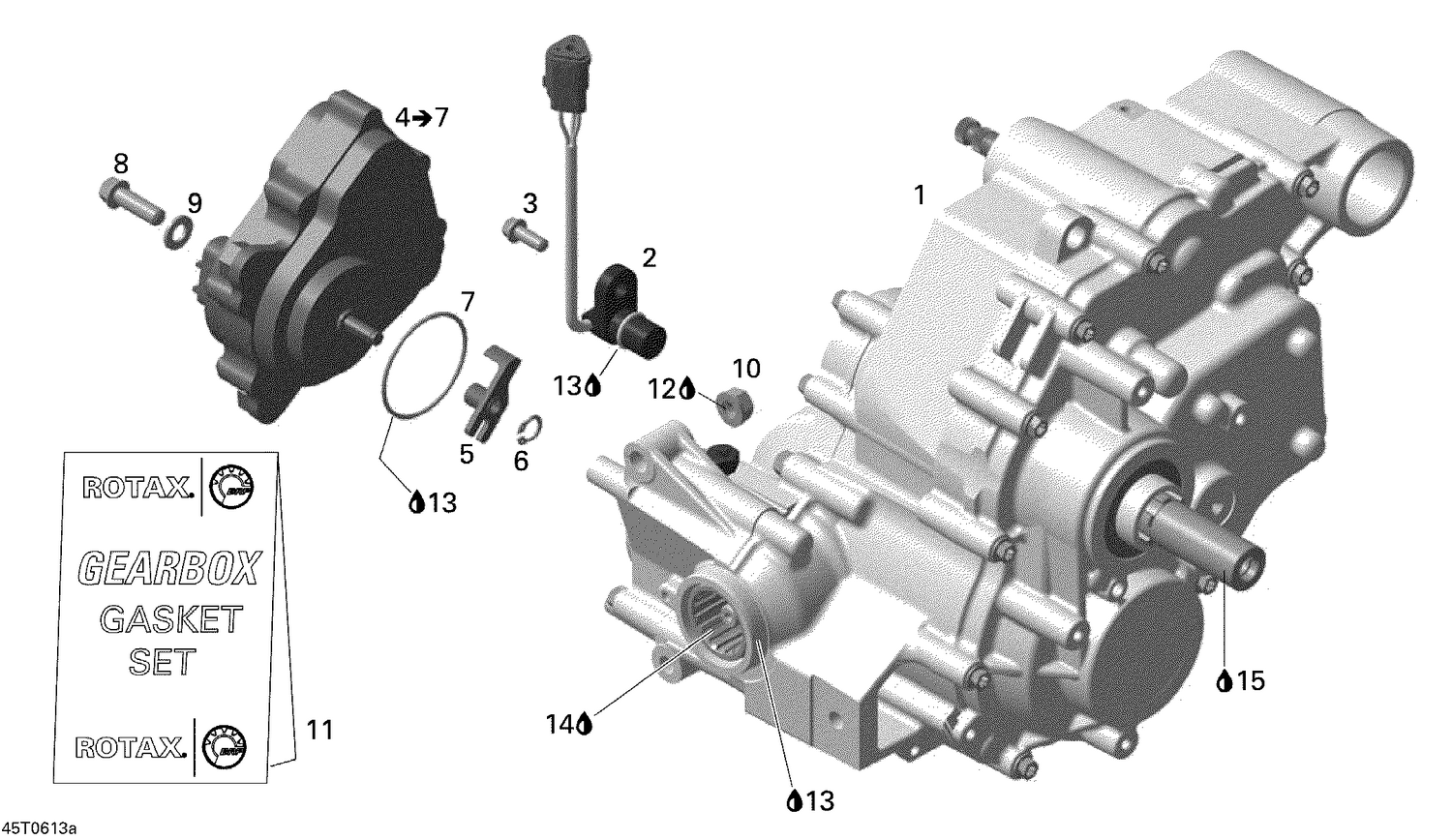

| Ref | Part Number | Description |
|---|
| 1 |
420684780 |
Gear Box |
| 2 |
420265727 |
Camshft Position Sensor Ass'y This part replaces 420265622. |
| 3 |
420641048 |
Torx Flange Screw M6 X 16 This part replaces 420440167. |
| 5 |
415129175 |
Shifting Fork |
| 6 |
293370042 |
Circlip This part replaces 415129176. |
| 7 |
293300117 |
O-Ring |
| 8 |
420440372 |
Torx Flange Screw M8 X 25 |
| 9 |
420250315 |
Flat Washer 8.4 mm This part replaces 420250311. |
| 10 |
420842616 |
Hex. Nut M8 |
| 11 |
420684134 |
Gasket Set, Gearbox This part replaces 420684135. |
| 12 |
293800060 |
Loctite 243, 10 ml |
| 13 |
293550030 |
Grease, Super Lube |
| 14 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039. |
