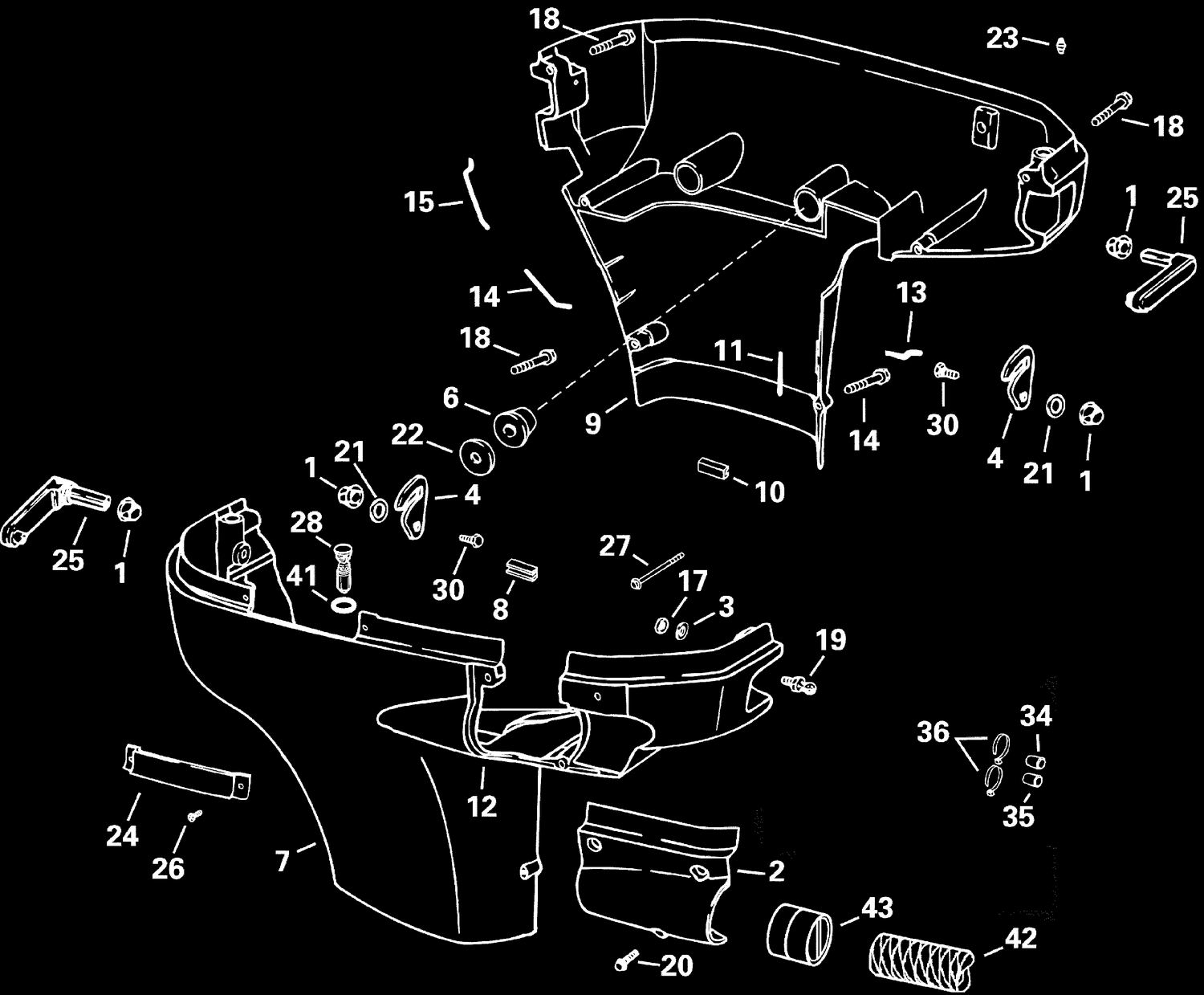

LOWER ENGINE COVER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0341913 | COVER, Cable entry |
| 6 | 0349557 | MOUNT This part replaces 0328584. |
| 7 | 5006414 | COVER Assy, Lower - Stbd This part replaces 5004760. |
| 9 | 5004759 | COVER Assy, Lower- Port |
| 18 | 0325115 | SCREW, Oil tank/EMM mount |
| 22 | 0349556 | Washer This part replaces 0329749. |
| 27 | 0317972 | ACREW,Exh manf to cyl.,4-1/4" long |
| 35 | 0331649 | CAP, Connector - fuel |
| 36 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 42 | 0343912 | Braided Sleeve Max Dia. (in.) 1.75 |
