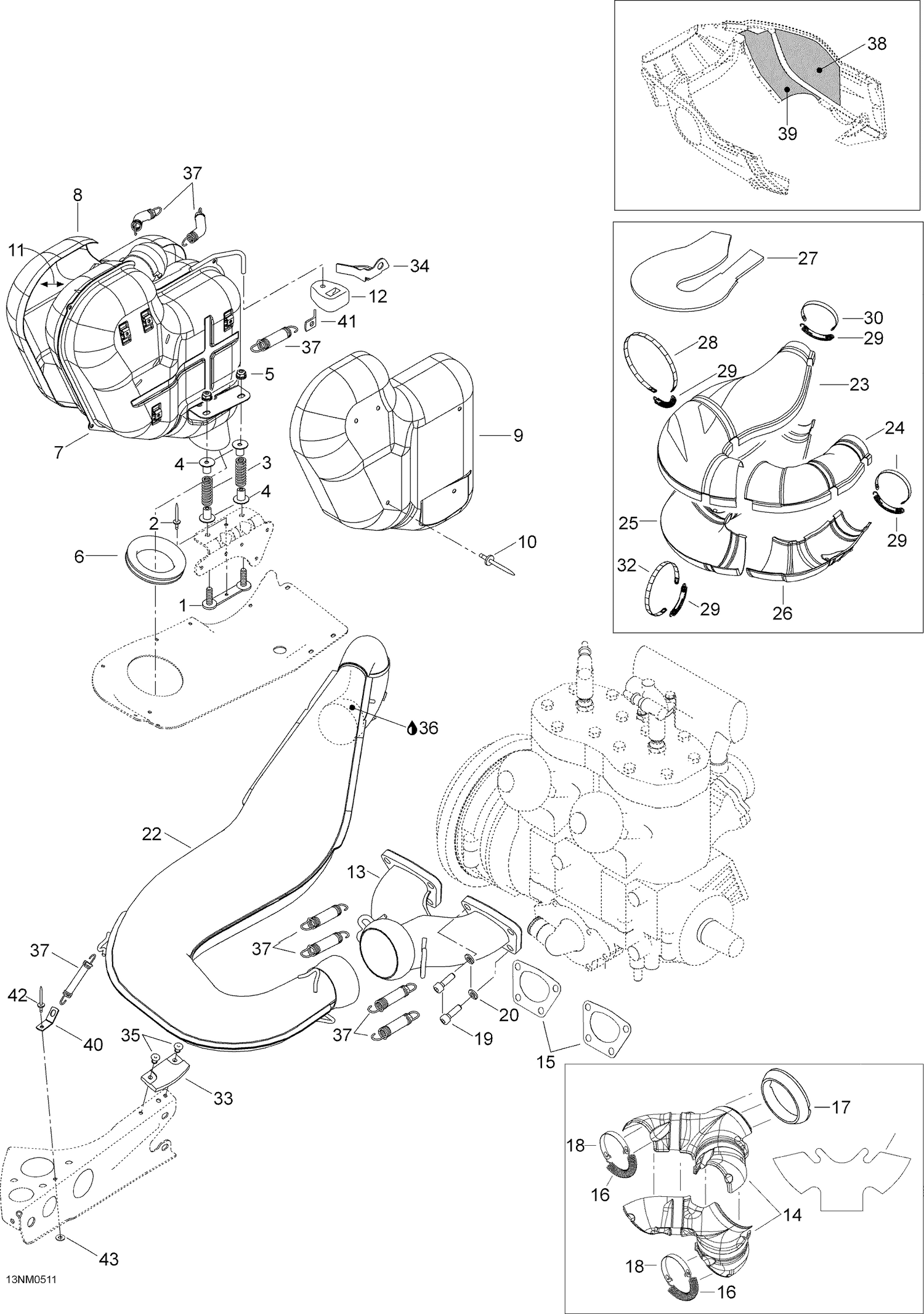

01- Exhaust System
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5447628 | Bracket |
| 2 | 36083 | Rivet |
| 3 | 414913700 | SPRING - Call your local BRP dealership |
| 4 | 514053343 | GUIDE - Call your local BRP dealership |
| 5 | 33029 | Stop nut VM8 |
| 6 | 514053064 | Exhaust grommet |
| 8 | 514053606 | R.H. heat shield |
| 9 | 514053516 | LH HEAT SHIELD - Call your local BRP dealership |
| 10 | 390910000 | Rivet |
| 11 | 514053294 | R.H. insulating wool |
| 11 | 514053295 | L.H. insulating wool |
| 12 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 13 | 420973714 | Exhaust manifold |
| 14 | 514053593 | Heat shield |
| 15 | 420931850 | Gasket |
| 16 | 514053643 | Spring |
| 17 | 514053487 | Exhaust Gasket |
| 18 | 514053603 | RETAINING STRAP - Call your local BRP dealership |
| 19 | 40052 | Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 20 | 20052 | Lock washer |
| 21 | 514053588 | INSULATING WOOL - Call your local BRP dealership |
| 23 | 514053724 | Upper enveloppe |
| 24 | 514053313 | REAR UPPER ENVELOPE - Call your local BRP dealership |
| 25 | 514053691 | Lower enveloppe |
| 26 | 514053314 | REAR LOWER ENVELOPE - Call your local BRP dealership |
| 27 | 514053696 | Isolation |
| 28 | 514053498 | Norma gear clamp |
| 29 | 514053643 | Spring |
| 30 | 514053492 | Norma gear clamp |
| 31 | 514053500 | RETAINING STRAP - Call your local BRP dealership |
| 32 | 514052512 | Norma gear clamp |
| 33 | 570044100 | Rubber damper |
| 34 | 514053442 | SUPPORT - Call your local BRP dealership |
| 35 | 36037 | Rivet |
| 36 | 293800090 | Loctite, 80ml |
| 37 | 415107100 | Spring |
| 38 | 514052718 | Isolering |
| 39 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 40 | 5447086 | Spring bracket |
| 41 | 514053436 | Spring bracket |
| 42 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
