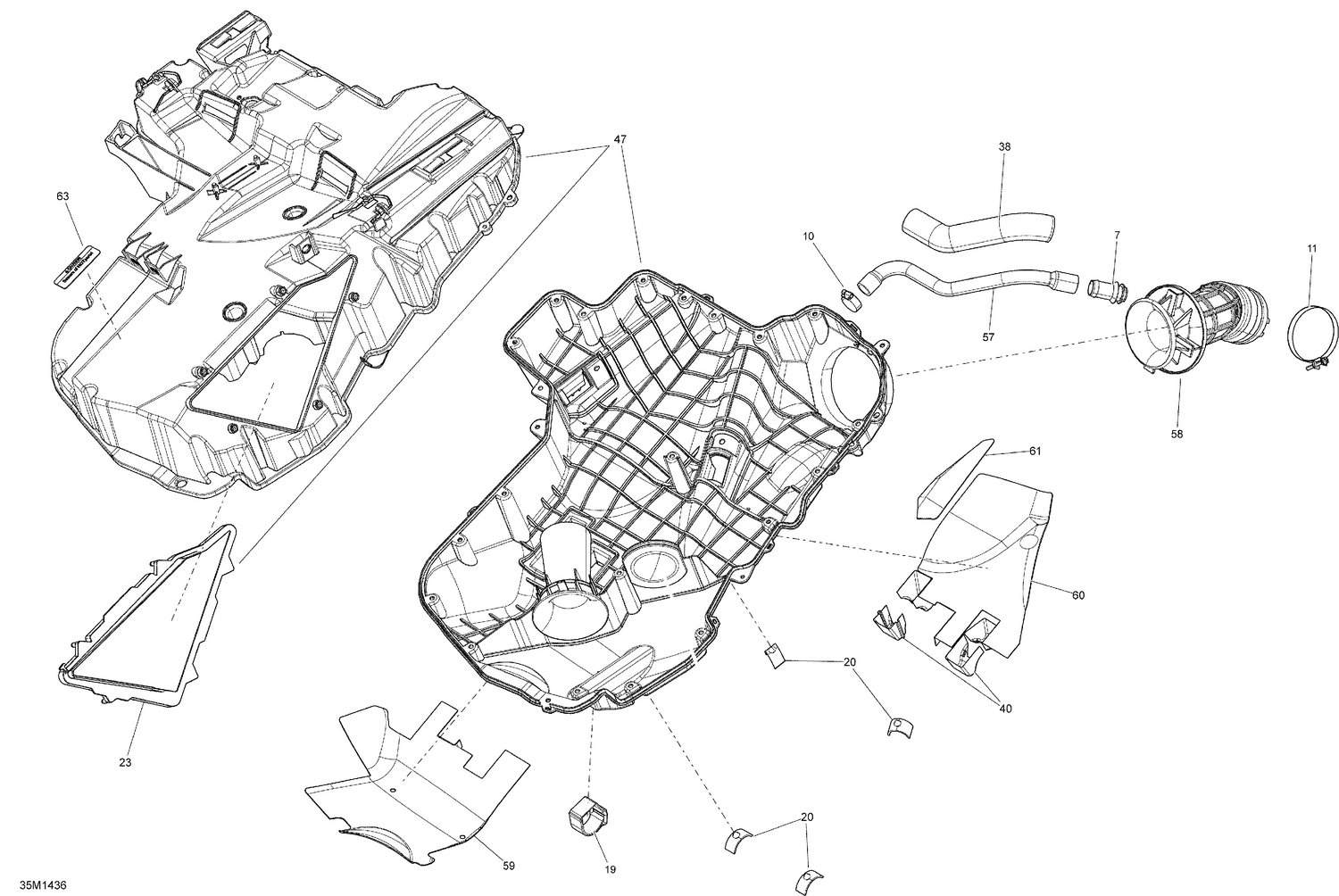

02- Air Intake System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 273000234 | Breather Valve |
| 10 | 293650172 | Tridon Gear Clamp |
| 11 | 293650229 | Gemi Clamp |
| 19 | 508000820 | Velcro Strip This part replaces 508000532. |
| 20 | 508000537 | Stopper |
| 23 | 508000546 | Air Filter |
| 38 | 508000648 | Tube Isolator |
| 40 | 508000677 | Heat Shield |
| 47 | 508000778 | Secondary Chamber Ass'y This part replaces 508000694. |
| 57 | 508000746 | Hose Vent |
| 58 | 508000757 | Flute |
| 59 | 508000793 | HEAT SHIELD - Call your local BRP dealership This part replaces 508000775. |
| 60 | 508000776 | HEAT SHIELD - Call your local BRP dealership |
| 61 | 508000777 | HEAT SHIELD - Call your local BRP dealership |
