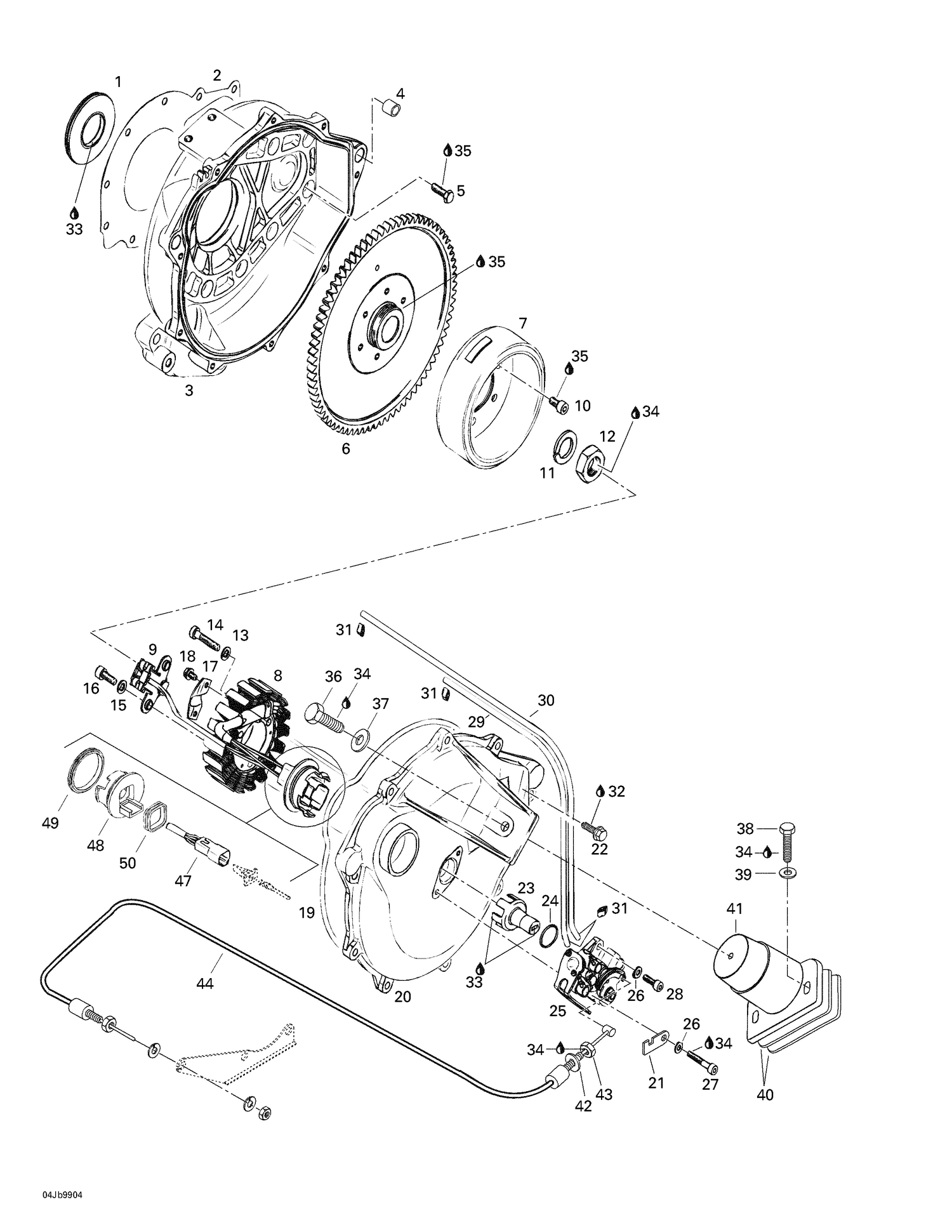

| Ref | Part Number | Description |
|---|
| 1 |
420830749 |
Oil Seal This part replaces 290830749. |
| 2 |
290931470 |
Gasket |
| 4 |
290229153 |
Dowel Tube |
| 5 |
420240034 |
Hex. Screw M6 X 25 This part replaces 420240031. |
| 6 |
290966442 |
Flywheel Hub |
| 7 |
290886598 |
MAGNETO FLYWHEEL - Call your local BRP dealership |
| 8 |
290886588 |
STATOR PLATE ASS'Y - Call your local BRP dealership |
| 9 |
420966832 |
Sensor Ass'y This part replaces 290965641. |
| 10 |
205061260 |
Socket Head Screw M6 X 12 |
| 12 |
420942220 |
HEX. NUT M18 - Call your local BRP dealership |
| 13 |
290445330 |
Lock Washer |
| 14 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 16 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 17 |
290853080 |
Retainer Plate |
| 18 |
207150844 |
HEX. SCREW M5 X 8 - Call your local BRP dealership |
| 19 |
420950360 |
O-RING - Call your local BRP dealership |
| 20 |
290810722 |
Ignition Cover (Silver) |
| 21 |
204250045 |
Link |
| 22 |
290240033 |
Hex. Flange Screw M6 x 25 |
| 23 |
290837392 |
Shaft Oil Pump |
| 24 |
293300018 |
O-RING - Call your local BRP dealership |
| 25 |
420887333 |
PUMP-OIL ASSY. - Call your local BRP dealership This part replaces 290887333. |
| 27 |
290940883 |
Socket Head Screw M5 x 30 |
| 28 |
215951660 |
Cylindrical Slotted Screw M5 x 16 |
| 29 |
219704404 |
Oil Hose 1500Mm Long |
| 30 |
219704404 |
Oil Hose 1500Mm Long |
| 31 |
290256408 |
Clamp |
| 32 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 33 |
413707000 |
Dow Corning 111, 150 g |
| 34 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 35 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 36 |
207181860 |
Hex. Screw M8 X 18 |
| 37 |
234082600 |
Flat Washer 8 mm, Stainless |
| 38 |
207184060 |
Hex. Screw M8 X 40 |
| 39 |
234081600 |
Stainless, Flat Washer 8 mm |
| 40 |
0460868 |
NEEDS DESCRIPTION This part replaces 204250048. |
| 41 |
270000422 |
Rubber Mount, Black |
| 42 |
234161601 |
Lock Washer Helical M6 |
| 43 |
232160600 |
Hex. Nut M6 |
| 44 |
270000384 |
Injection Cable |
| 45 |
290886390 |
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 46 |
290886396 |
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 47 |
710001539 |
Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 48 |
270000138 |
Adaptor |
| 49 |
293300033 |
Gasket |
