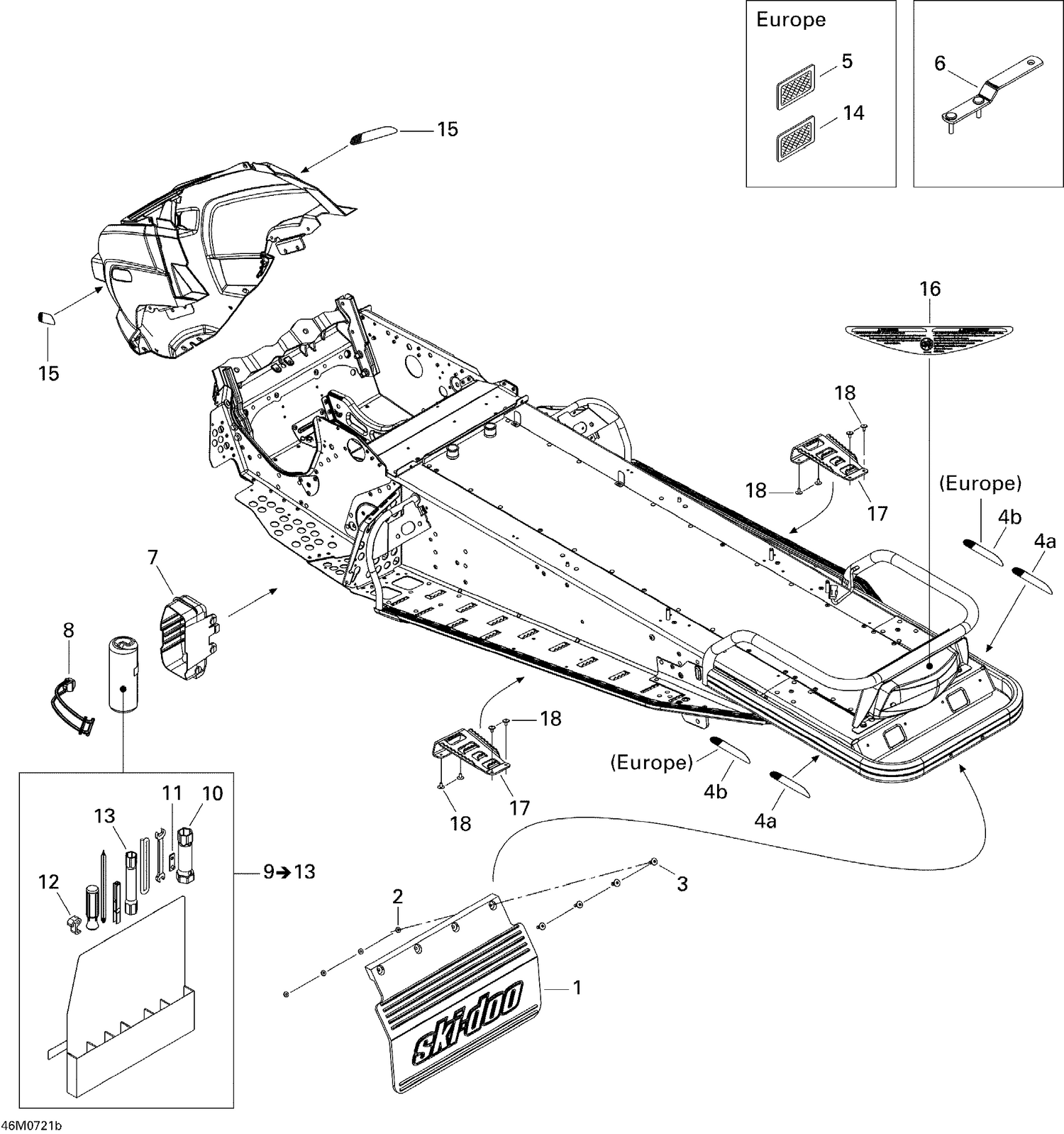

09- Utilities Touring
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000606 | SNOW GUARD - Call your local BRP dealership |
| 2 | 517225900 | Flat Washer |
| 3 | 293150100 | Pop Rivet 3/16" |
| 4a | 520000523 | REFLECTOR - Call your local BRP dealership |
| 6 | 520000126 | Adjustment Wrench |
| 7 | 520000322 | TRUNK - Call your local BRP dealership |
| 8 | 520000528 | Latch |
| 10 | 529014800 | Socket Wrench 21/26 mm |
| 11 | 529024400 | ROPE ADAPTOR - Call your local BRP dealership |
| 12 | 529000060 | Starter Grip This part replaces 529019400. |
| 13 | 295000175 | Socket Wrench 16/18 mm |
| 15 | 520000525 | REFLECTOR - Call your local BRP dealership |
| 16 | 520000611 | SECURITY LABEL - Call your local BRP dealership |
| 17 | 520000492 | Footrest |
