Parts Catalog

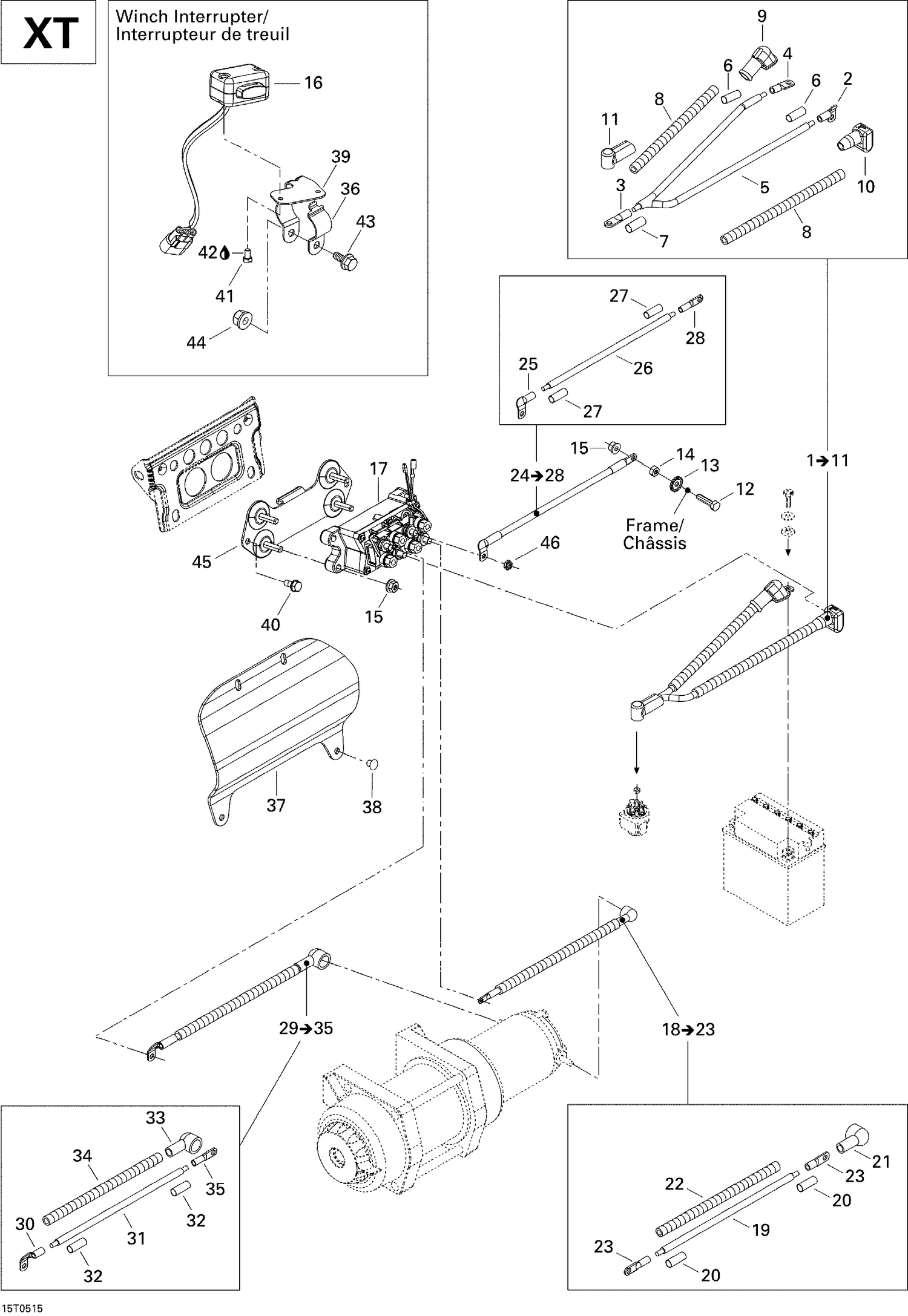

10- Winch, Electrical XT

Parts (41)

Ref	Part Number	Description
2	710000475	TERMINAL_FEMALE - Call your local BRP dealership
3	710000478	FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership
4	710000479	Flat Open Barel 6.6 mm
5	Not	Available As Spare Part - Wire
6	219704447	Was 710000483 Heat Shrink Tubing
7	275500578	Shrink Tubing
8	710000497	PROTECTOR TUBE, 9 MM - Call your local BRP dealership
9	710000495	Protector Cap
10	710000523	Protector Cap
11	710000527	Protector Cap
12	207162044	Hex. Screw M6 X 20
13	234461608	External Serrated Lock Washer 6 mm
14	232061414	Hex. Nut M6
15	233261414	Hex. Flange Elastic Nut M6 x 1.0
16	710001001	WINCH INTERRUPTER - Call your local BRP dealership This part replaces 710000827.
17	710001000	Winch Solenoid This part replaces 710000826.
19	Not	Available As Spare Part - Ground Wire
20	219704447	Was 710000483 Heat Shrink Tubing
21	710000494	Protector Cap
22	710000497	PROTECTOR TUBE, 9 MM - Call your local BRP dealership
23	710000530	Open Barrel
25	710000475	TERMINAL_FEMALE - Call your local BRP dealership
26	Not	Available As Spare Part - Ground Wire
27	219704447	Was 710000483 Heat Shrink Tubing
28	710000530	Open Barrel
30	710000476	OPEN BARREL, 6.6 MM - Call your local BRP dealership
31	Not	Available As Spare Part - Ground Wire
32	219704447	Was 710000483 Heat Shrink Tubing
33	710000494	Protector Cap
34	710000497	PROTECTOR TUBE, 9 MM - Call your local BRP dealership
35	710000530	Open Barrel
36	710000566	Collar
37	710000511	Protector Pad
38	293730011	Black, Dart
39	710000564	Support, Black
40	210261050	Hex. Forming Screw M6 X 10 This part replaces 210261080.
41	250000153	Hex. Cap Screw 6-32 X 1/4"
42	293800060	Loctite 243, 10 ml
43	207661654	Hex. Flange Screw M6 X 16 This part replaces 207661684.
44	233261494	Hex. Flange Elastic Nut M6
45	710000535	SOLENOID SUPPORT, BLACK - Call your local BRP dealership
