Parts Catalog

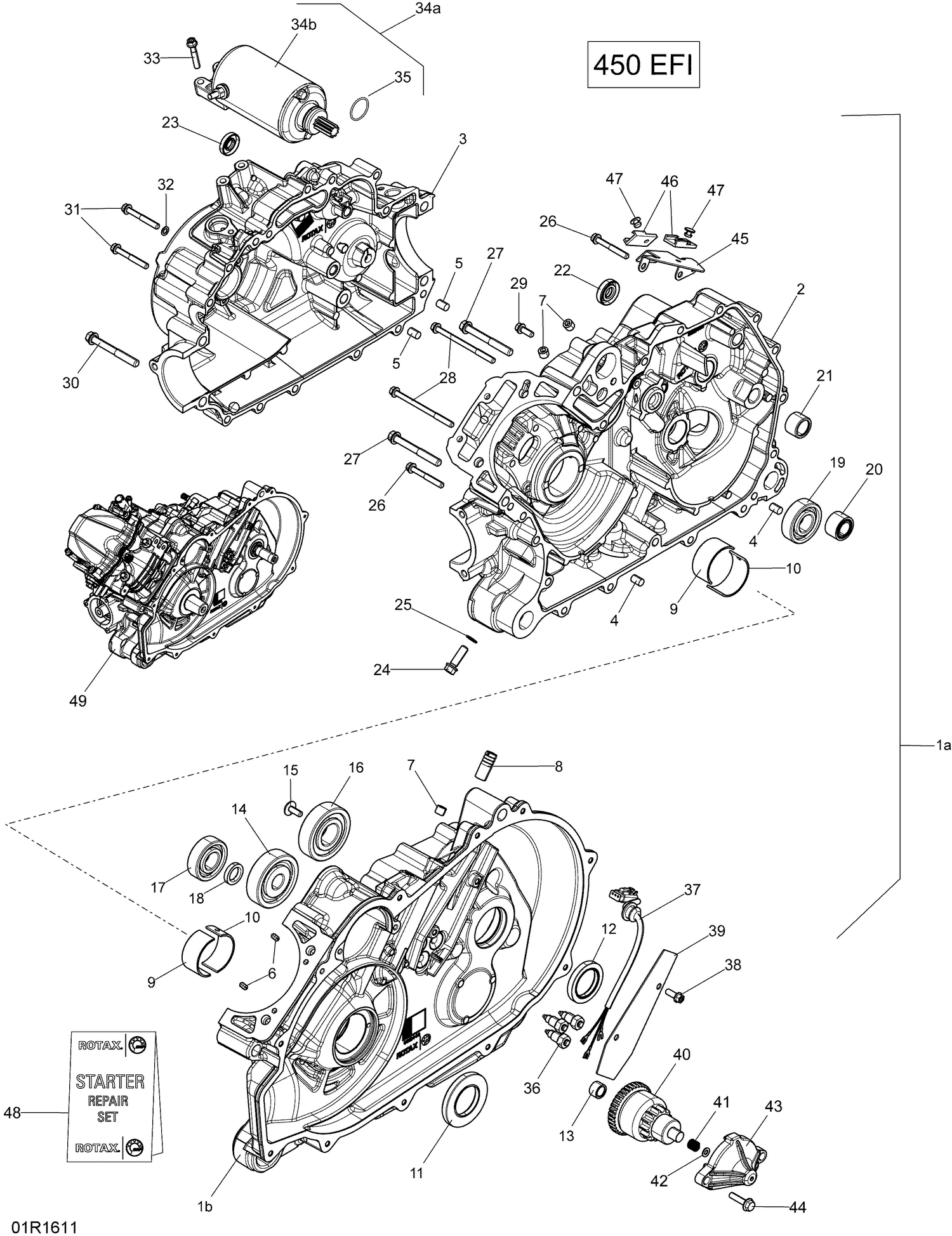

01- Crankcase - 450 EFI

Parts (49)

Ref	Part Number	Description
1b	Not	Available As Spare Part - Crankcase, CVT Side
2	Not	Available As Spare Part - Crankcase, MAG Side
3	Not	Available As Spare Part - Magneto Cover
4	420632010	Center Pin 8 X 12
5	420632010	Center Pin 8 X 12
6	420929650	Drive Pin 5 X 10
7	420641323	Plug Screw M10 X 1
8	420256332	Hose Nipple
9	420233960	Plain Bearing
10	420233965	Plain Bearing
11	420630152	Oil Seal
12	420950089	Oil Seal
13	420232482	Needle Bushing
14	420632295	Ball Bearing This part replaces 420632290.
15	420241522	Torx Screw M6 X 16 This part replaces 420241529.
16	420932822	Ball Bearing This part replaces 420932825.
17	420932433	Ball Bearing 6204
18	420250130	Oil Seal
19	420932433	Ball Bearing 6204
20	420232085	Needle Bushing
21	420832240	Needle Bushing
22	420250450	Oil Seal
23	420650315	Oil Seal
24	420440372	Torx Flange Screw M8 X 25
25	420950141	Sealing Ring
26	420440324	Torx Flange Screw M6 X 45
27	420440207	Torx Flange Screw M6 X 20
27	420440402	Torx Flange Screw M8 X 65
28	420641228	Torx Flange Screw M6 X 85 This part replaces 420440347.
29	420440162	Torx Flange Screw M6 X 16
30	420440402	Torx Flange Screw M8 X 65
31	420440324	Torx Flange Screw M6 X 45
32	420230415	Seal Washer
33	420440274	Torx Flange Screw M6 X 35
34b	Not	Available As Spare Part - Electrical Starter
35	Not	Available As Spare Part - O-Ring
36	420241856	Position Switch
37	420265831	Wiring Harness
38	420440162	Torx Flange Screw M6 X 16
39	420251290	Cover Sheet
40	420294811	Starter Drive Ass'y This part replaces 420684054.
41	420938204	Spring
42	420927574	Washer 5.3 This part replaces 420927571.
43	420610891	Reduction Cover Gear
44	420240034	Hex. Screw M6 X 25
45	420251491	Retaining Plate
46	420260590	Connector Bracket
47	420243010	Blind Rivet
48	420685125	Gasket Set ( Engine)
