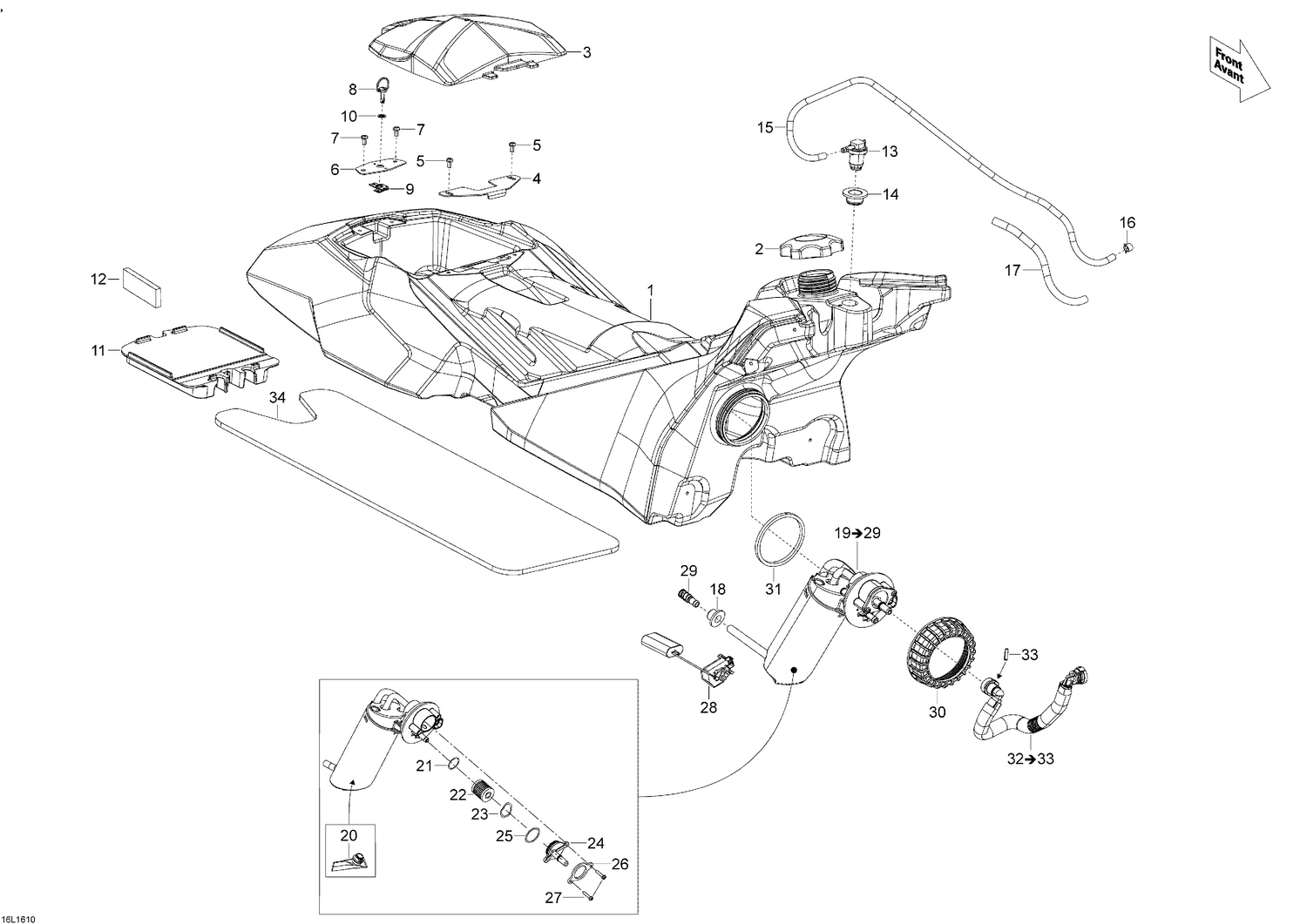

02- Fuel System
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033725 | Fuel Tank |
| 2 | 513033723 | Cap |
| 3 | 513033705 | Battery Cover |
| 4 | 513033775 | Lock Plate |
| 5 | 205951046 | Socket HD Screw M5 x 10 |
| 6 | 513033731 | Lock Plate |
| 7 | 205951046 | Socket HD Screw M5 x 10 |
| 8 | 513033735 | Quarter Turn Fastener |
| 9 | 513033736 | Quarter Turn Fastener Plate |
| 10 | 732610072 | Push Nut |
| 11 | 513033732 | Battery Support |
| 12 | 510006023 | Foam |
| 13 | 513033842 | Check Valve This part replaces 513033188. |
| 14 | 513033596 | Grommet |
| 15 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 16 | 414554800 | Spring Clamp |
| 17 | 504153468 | Protector Tube |
| 18 | 293300184 | O Ring |
| 20 | 415129451 | Fuel Filter (In Tank, Fuel Pump) |
| 21 | 415129511 | O Ring |
| 22 | 415129510 | Fuel Filter |
| 23 | 415129512 | Wave Washer |
| 24 | 415129685 | Cover |
| 25 | 415129509 | O Ring |
| 26 | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 27 | 415129513 | Screw |
| 28 | 415130108 | Fuel Level Sensor This part replaces 415129671. |
| 29 | 414872100 | Fuel Filter (In Tank, Fuel Line) |
| 30 | 513033040 | Fuel Pump Nut |
| 31 | 513033707 | Gasket |
