| Ref | Part Number | Description |
|---|
| 1 |
0908155 |
HOUSING, Inboard |
| 2 |
0908144 |
LEVER, Throttle |
| 3 |
0908152 |
SCREW, Trim step |
| 4 |
0908145 |
APPLIQUE, Throttle lever |
| 5 |
0308873 |
DRIVESCREW, Applique to lever |
| 6 |
0980177 |
KNOB, Shift release |
| 7 |
0908151 |
APPLIQUE, Knob |
| 8 |
0908146 |
TRIGGER, Lockout |
| 9 |
0908147 |
SPRING, Lockout trigger |
| 10 |
0908150 |
KNOB, Throttle lever |
| 11 |
0309072 |
SCREW, Detent spring, up. throt. cable anchr |
| 12 |
0908154 |
PLATE, Neutral lockout |
| 13 |
0908148 |
PIN, Friction |
| 14 |
0908149 |
SPRING, Friction pin |
| 15 |
0908157 |
BUSHING, Control housing |
| 16 |
0307455 |
SPRING |
| 17 |
0908137 |
SHAFT, Throttle |
| 18 |
0908138 |
SHAFT, Shift release |
| 19 |
0908139 |
CAM, Switch assy |
| 20 |
0908140 |
CLUTCH DOG |
| 21 |
0908141 |
RETAINING RING |
| 22 |
0908142 |
BALL, Detent |
| 23 |
0908143 |
PIN, Shift release |
| 24 |
0908153 |
RETAINING RING, Plate to housing |
| 25 |
0172123 |
SWITCH & CONNECTOR ASSEMBLY |
| 27 |
0311741 |
CONECTOR |
| 28 |
0315011 |
PAN HEAD SCREW |
| 29 |
0908161 |
DETENT, Throttle plate |
| 30 |
0908162 |
SPRING, Detent |
| 31 |
0908156 |
HOUSING, Outboard |
| 32 |
0980178 |
LINKAGE ASSY, Throttle |
| 35 |
0311621 |
SCREW, Housing to housing |
| 36 |
0908160 |
BUSHING, Bellcrank |
| 38 |
0908159 |
SCREW, Bearing clamp |
| 39 |
0980329 |
CASING GUIDE & SLEEVE ASSY |
| 41 |
0303887 |
WASHEER, Pin to swivel bracket |
| 43 |
0121761 |
CLIP, Trunnion |
| 45 |
0307063 |
O RING |
| 46 |
0385958 |
CLAMP & SC R.,Casing guide |
| 47 |
0908163 |
SCREW, Mounting |
| 0980501 |
0980501 |

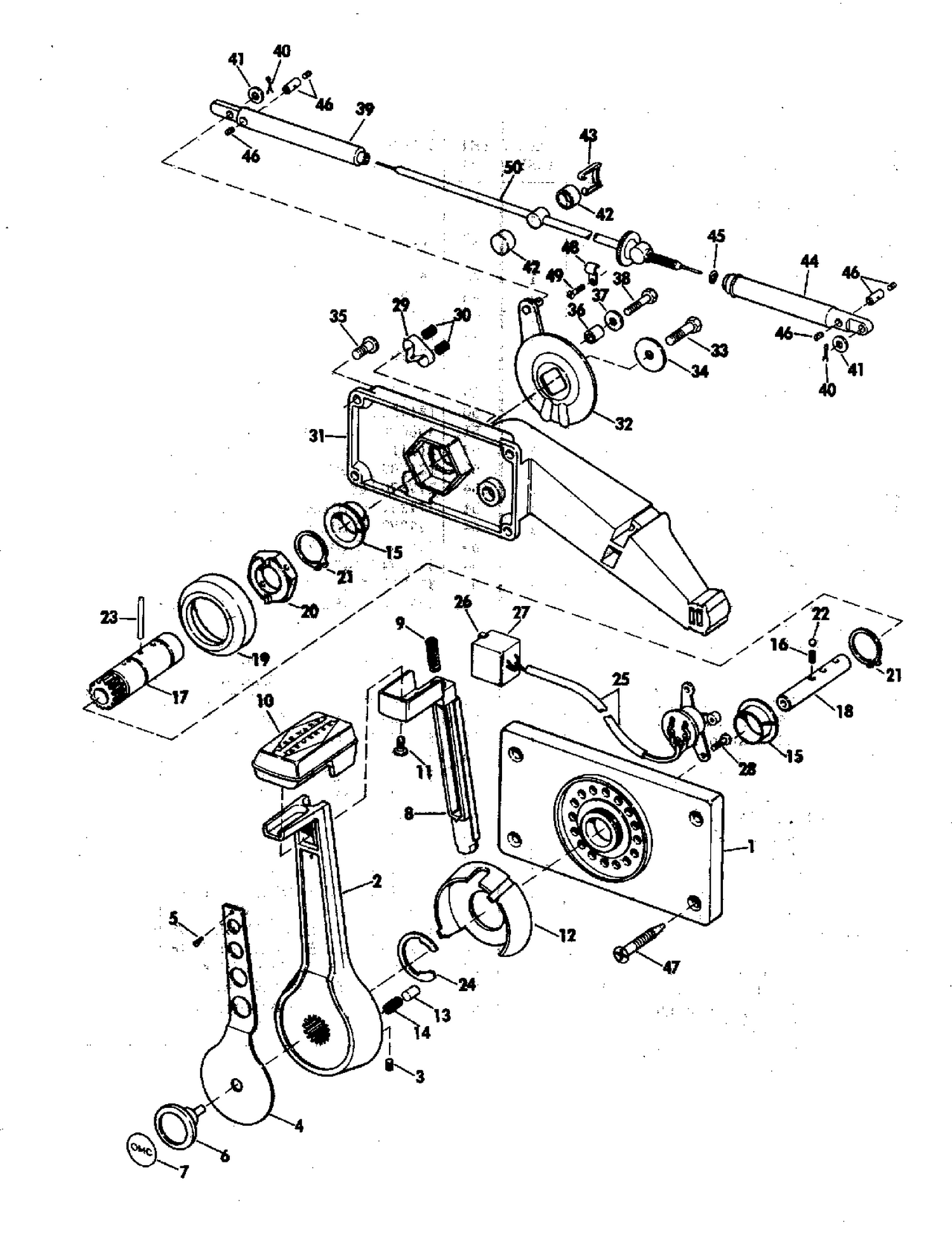

REMOTE CONTROL ASSY |
