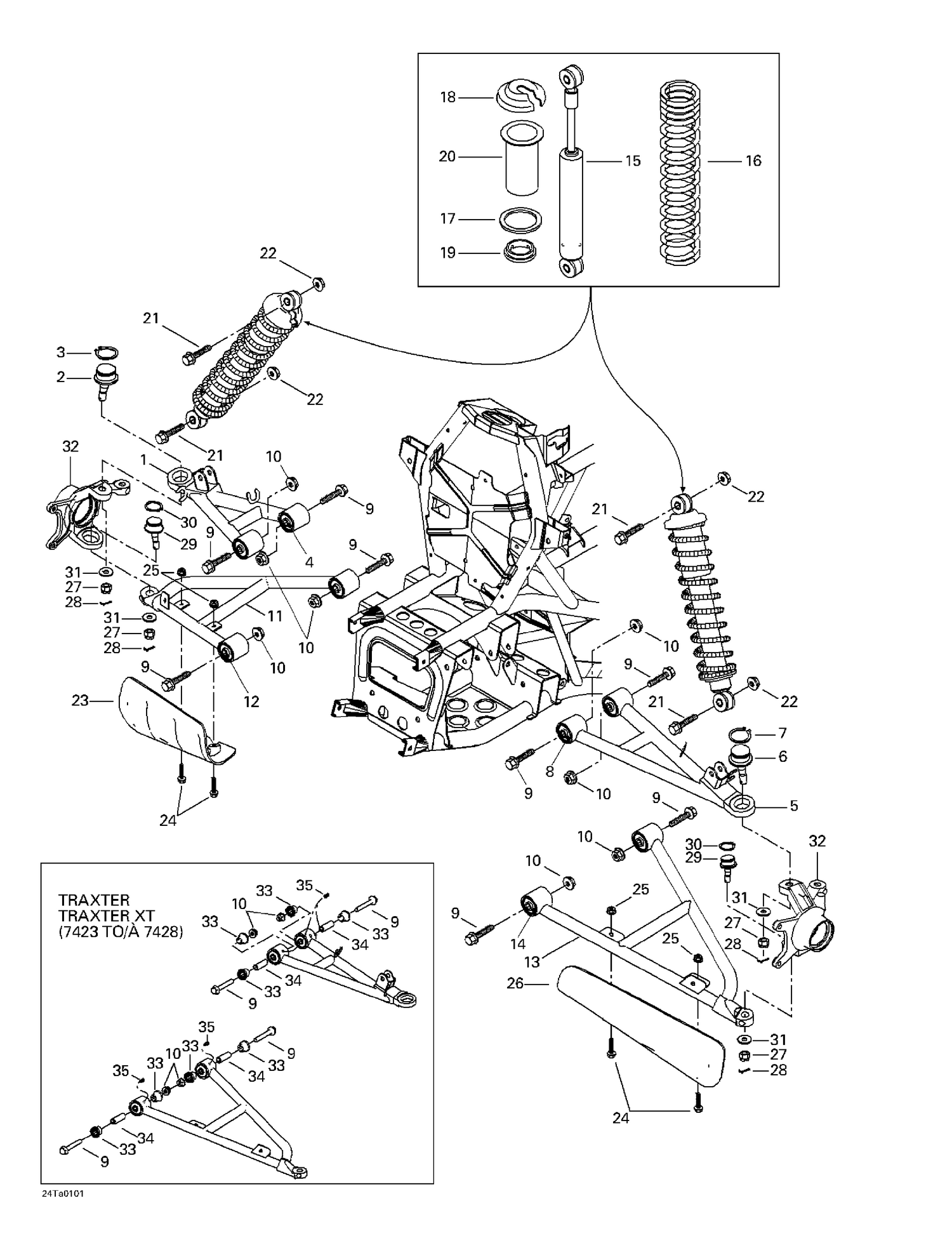

07- Front Suspension
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 706200653 | Ball Joint This part replaces 706200091. |
| 3 | 293370009 | Circlip 32 mm |
| 6 | 706200653 | Ball Joint This part replaces 706200091. |
| 7 | 293370009 | Circlip 32 mm |
| 8 | 706200025 | Cushion |
| 9 | 207607046 | Hex. Flange Screw M10 X 70 |
| 10 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 11 | 706200159 | RH Lower Arm (7431 @ 7434) |
| 12 | 706200025 | Cushion |
| 13 | 706200161 | LH Lower Arm (7431 @ 7434) |
| 14 | 706200025 | Cushion |
| 15 | 706200137 | Front Shock |
| 16 | 706200006 | FRONT SPRING - Call your local BRP dealership |
| 17 | 706000533 | SPRING SEAT - Call your local BRP dealership This part replaces 706000028. |
| 18 | 706200881 | Spring Stopper This part replaces 503140600. |
| 19 | 706000007 | Spring seat |
| 20 | 503139800 | PROTECTOR - Call your local BRP dealership |
| 21 | 207604544 | HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership |
| 22 | 233201414 | Hex. Flange Elastic Nut M10 |
| 23 | 706200007 | Arm Protector R.H |
| 24 | 207661644 | Hex. Flange Screw M6 X 16 |
| 25 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 26 | 706200009 | Arm Protector L.H |
| 27 | 232221414 | Hex. Castellated Nut M12 |
| 28 | 211400017 | Cotter Pin |
| 29 | 706200653 | Ball Joint This part replaces 706200091. |
| 30 | 293370009 | Circlip 32 mm |
| 31 | 503175400 | Hardened Washer |
| 32 | 703500063 | Knuckle Kit RH (7431 @ 7434) |
| 33 | 706200181 | Bushing This part replaces 706200157. |
| 34 | 706201587 | Sleeve This part replaces 706200158. |
| 703500064 | Knuckle | Kit LH(7431 @ 7434) 703500064 |
| 706200152 | RH | Upper Arm 706200152 |
