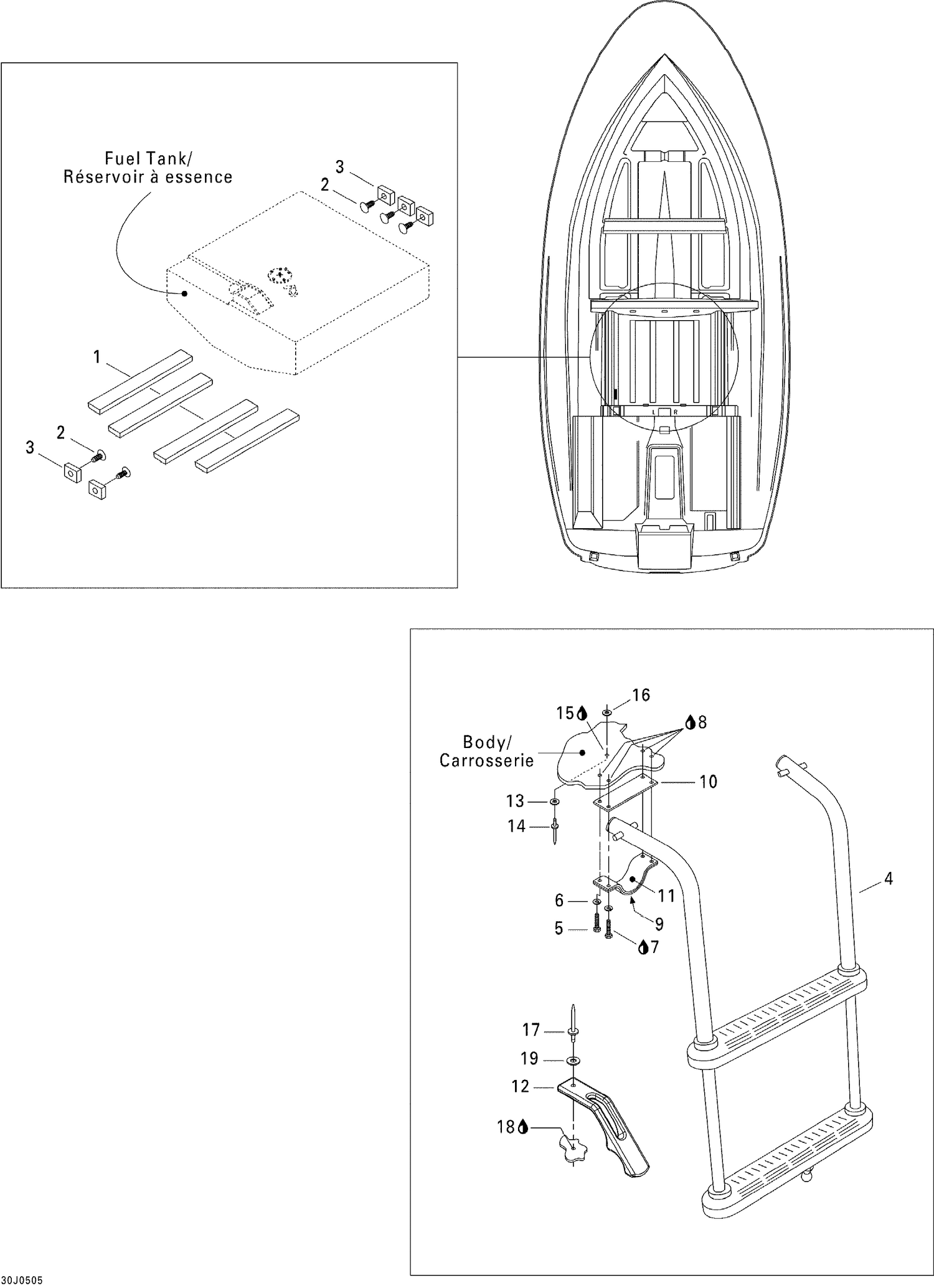

09- Lower Hull And Ladder
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204560115 | PROTECTOR PAD - Call your local BRP dealership |
| 2 | 293730006 | Black, Dart |
| 3 | 204060684 | RUBBER PAD - Call your local BRP dealership |
| 4 | 204060186 | LADDER - Call your local BRP dealership |
| 5 | 207163560 | Hex. Screw M6 X 35 |
| 6 | 234161601 | Lock Washer Helical M6 |
| 7 | 293800060 | Loctite 243, 10 ml |
| 8 | 296000309 | Silicone Sealant 51388, 300 ml |
| 9 | 204060055 | LADDER CLIP - Call your local BRP dealership |
| 10 | 204060057 | PROTECTOR 97 - Call your local BRP dealership |
| 11 | 204060056 | PROTECTOR 158 - Call your local BRP dealership |
| 12 | 570027100 | Hood Latch |
| 13 | 234062600 | Flat Washer M6, Stainless |
| 14 | 293150043 | Pop Rivet 3/16" |
| 15 | 296000309 | Silicone Sealant 51388, 300 ml |
| 16 | 234051600 | Flat Washer M5, Stainless |
| 17 | 293150013 | Pop Rivet 3/16" |
| 18 | 296000309 | Silicone Sealant 51388, 300 ml |
