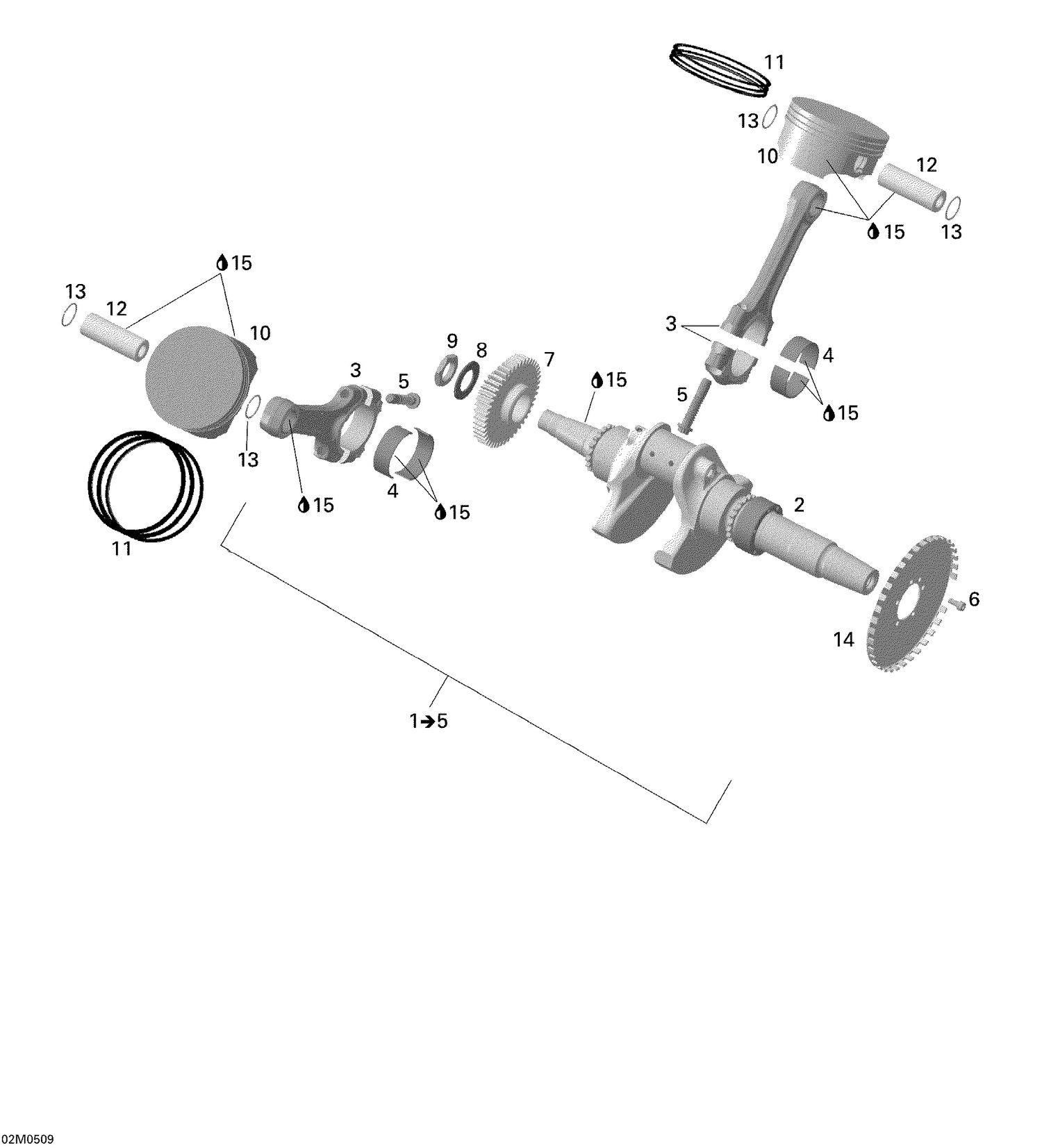

| Ref | Part Number | Description |
|---|
| 2 |
420889440 |
Crankshaft |
| 3 |
420917546 |
CONNECTING ROD ASS?Y - Call your local BRP dealership |
| 4 |
420933523 |
Half-Bearing This part replaces 420933520. |
| 5 |
420640991 |
Connecting rod Screw M10 X 1 This part replaces 420640990. |
| 6 |
420640541 |
SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership |
| 7 |
420834446 |
Drive Gear 45 Teeth |
| 8 |
420245860 |
Spring Washer |
| 9 |
420242879 |
Nut This part replaces 420242871. |
| 10 |
420296565 |
Piston Ass'y, Standard, 99.96 mm |
| 11 |
420890380 |
Piston Set Ring, Standard This part replaces 420888864. |
| 12 |
420216250 |
Piston Pin |
| 13 |
420845580 |
Circlip |
| 14 |
420966850 |
TRIGGER WHEEL - Call your local BRP dealership |
