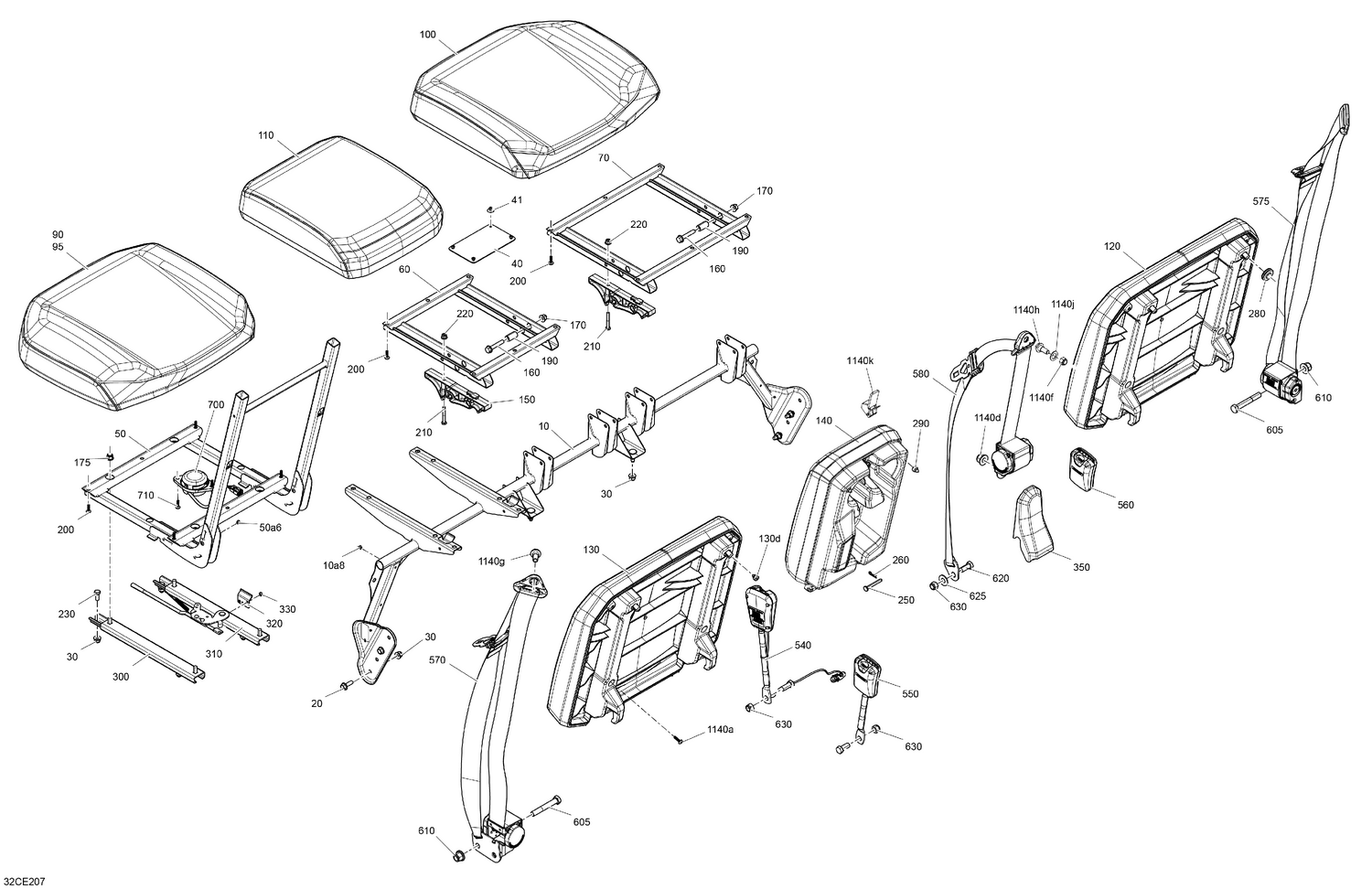

07- Body - Seat - Front Section
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10a8 | 293150293 | Pop Rivet 3/16 X ,425 |
| 20 | 207682544 | Hex. Flange Screw M8 X 25 |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 708002511 | Seat Plate This part replaces 708003674. |
| 41 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 50a6 | 293150293 | Pop Rivet 3/16 X ,425 |
| 60 | 708002815 | Mid Seat Member |
| 70 | 708002821 | Passenger Seat Member |
| 90 | 708002481 | LH Cushion Ass'y |
| 95 | 708002545 | LH Cushion Ass'y |
| 100 | 708001926 | RH Cushion Ass'y |
| 110 | 708001928 | Central Cushion Ass'y |
| 120 | 708001995 | Backrest Ass'y |
| 130d | 293830005 | Rubber Bumper |
| 140 | 708003157 | Backrest Ass'y |
| 150 | 708002581 | Seat Base Pivot |
| 160 | 207684544 | Hex. Flange Screw M8 X 45 |
| 170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 175 | 233281414 | Hex. Flange Elastic Nut M8 |
| 190 | 708003749 | Bushing |
| 200 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 210 | 207064544 | Hex. Screw M6 X 45 |
| 220 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 230 | 207182044 | Hex. Screw M8 X 20 |
| 250 | 250400069 | Pin |
| 260 | 269800431 | Hairpin Cotter |
| 280 | 517303756 | Grommet |
| 290 | 293830005 | Rubber Bumper |
| 300 | 708003314 | LH Seat Rail |
| 310 | 708003315 | RH Seat Rail |
| 320 | 708003672 | Seat Stopper |
| 330 | 293150293 | Pop Rivet 3/16 X ,425 |
| 350 | 708002293 | Cover |
| 540 | 708002331 | Driver Buckle |
| 550 | 708003163 | Middle Buckle |
| 560 | 708002329 | Passenger Buckle |
| 570 | 708003082 | LH Safety Belt |
| 575 | 708003200 | RH Safety Belt |
| 580 | 708003688 | Central Safety Belt |
| 605 | 207028046 | Hex. Screw M12 X 80 |
| 610 | 233221416 | Elastic Flange Nut M12 |
| 620 | 250001316 | Hex. Cap Screw 7/16'' X 1'' |
| 625 | 250200102 | Flat Washer M12 |
| 630 | 250100183 | Lock Nut Nylon 7/16 |
| 700 | 710008103 | Passenger Detection Switch |
| 710 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1140a | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1140d | 233221416 | Elastic Flange Nut M12 |
| 1140f | 250100183 | Lock Nut Nylon 7/16 |
| 1140g | 708002504 | Safety Belt screw |
| 1140h | 708000890 | Safety Belt Screw |
| 1140j | 708000891 | Position Washer |
