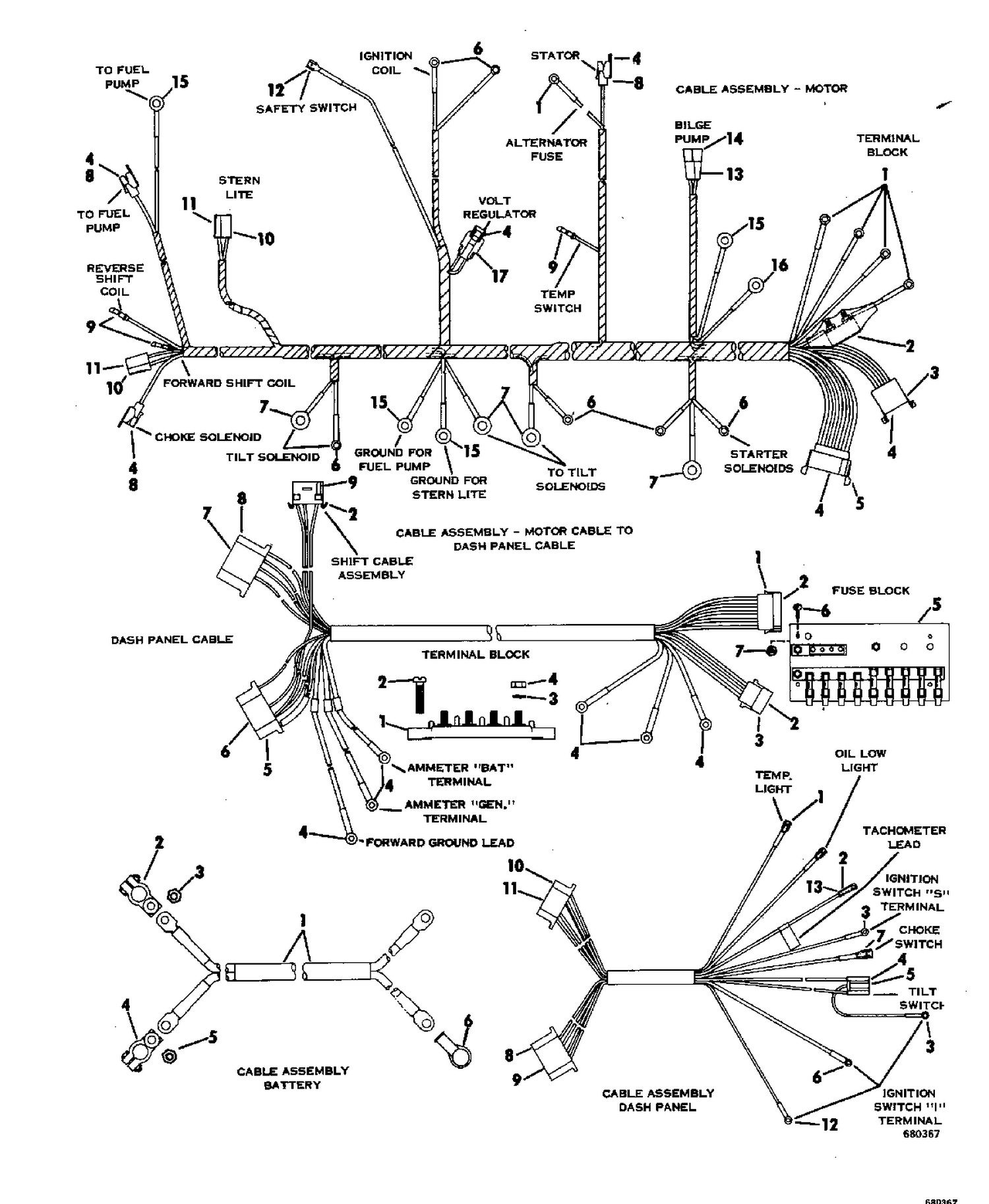

CABLE ASSEMBLY
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0311472 | CONNECTOR |
| 1 | 0379792 | BATTER CABLE ASSEMBLY |
| 1 | 0379793 | TERMINAL BLOCK |
| 2 | 0309953 | SCREW |
| 2 | 0380660 | CIRCUIT BREAKER-30 AMP |
| 2 | 0385407 | BATTERY TERMINAL KIT This part replaces 0277709. |
| 3 | 0311740 | CONNECTOR |
| 3 | 0311741 | CONECTOR |
| 4 | 0385407 | BATTERY TERMINAL KIT This part replaces 0277708. |
| 5 | 0311471 | CONNECTOR |
| 5 | 0510474 | CONNECTOR |
| 5 | 0975097 | FUSE BLOCK ASSY |
| 6 | 0204040 | RING TERMINAL |
| 6 | 0510469 | TAB |
| 7 | 0510475 | CONNECTOR |
| 7 | 0901628 | NUT |
| 8 | 0510475 | CONNECTOR |
| 9 | 0510473 | TAB |
| 10 | 0510471 | CONNECTOR |
| 10 | 0510474 | CONNECTOR |
| 11 | 0510469 | TAB |
| 13 | 0510472 | CONNECTOR |
| 0380388 | 0380388 | CABLE ASEMBLY-17'6" |
| 0380556 | 0380556 | CABLE ASSEMBLY,Complete |
| 0381665 | 0381665 | MOTOR CABLE ASSEMBLY-COMPLETE |
