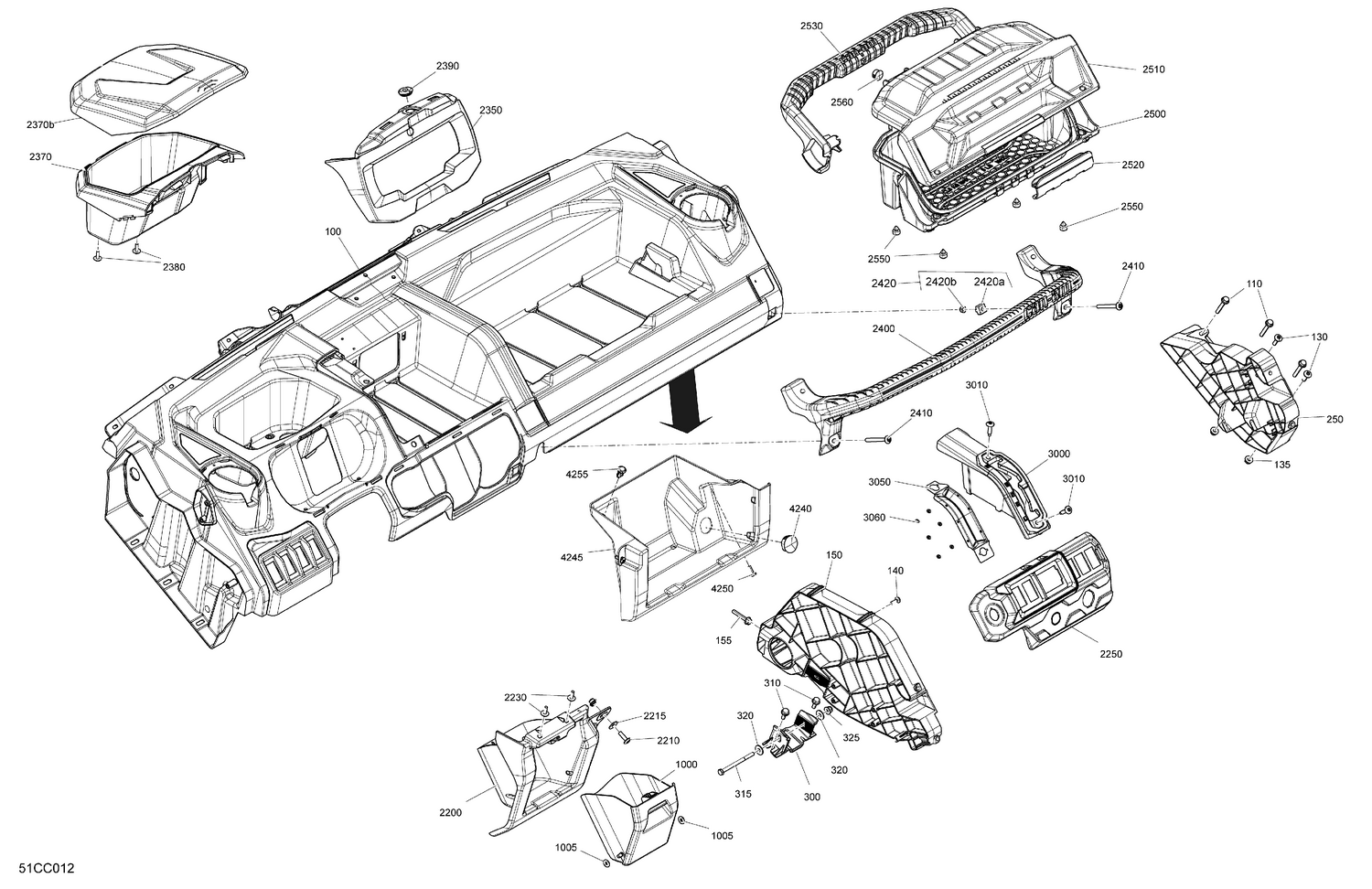

07- Cab Interior - Dashboard
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 130 | 250000712 | Torx Screw M6 X 20 |
| 135 | 233261494 | Hex. Flange Elastic Nut M6 |
| 140 | 250000720 | Torx Screw K50 X 16 |
| 150 | 707901134 | Central Console Support |
| 155 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 250 | 707901126 | RH Console Support |
| 300 | 707900940 | Plier |
| 310 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 315 | 207068044 | Hex. Screw M6 X 80 |
| 320 | 234062670 | Stainless Steel Flat Washer |
| 325 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 707901132 | Cover |
| 1005 | 293300194 | O-Ring |
| 2200 | 707901118 | LH Lower Dashboard This part replaces 707901118. |
| 2210 | 250000722 | Torx Screw M6 X 20 |
| 2215 | 234062670 | Stainless Steel Flat Washer |
| 2230 | 250000959 | Screw PT Type K-50 X 16 |
| 2250 | 715008266 | Switch Support Ass'y |
| 2350 | 707901121 | Gauge Support |
| 2370b | 703501087 | Storage Box Ass'y |
| 2380 | 250000959 | Screw PT Type K-50 X 16 |
| 2390 | 705003264 | Grommet |
| 2400 | 707900248 | Passenger Handhold |
| 2410 | 250000648 | Torx Screw M6 X 60 |
| 2420a | 269500252 | M6 Nut Housing Ass'y |
| 2420b | 232561600 | Hex. Elastic Stop Nut M6 |
| 2500 | 715004344 | Removable Storage Bin |
| 2510 | 715004344 | Removable Storage Bin |
| 2520 | 269501945 | Clip |
| 2530 | 707901116 | Box Handle |
| 2550 | 293830005 | Rubber Bumper |
| 2560 | 293000120 | Cap |
| 3000 | 707900608 | Shifter Gate This part replaces 707901123. |
| 3010 | 250000728 | Torx Screw M6 X 25 |
| 3050 | 707900506 | Shifter Gate Deflector |
| 3060 | 250100178 | Push Nut |
| 4240 | 710004993 | Cap |
| 4245 | 707900993 | Front Lower Storage Box |
| 4250 | 250000720 | Torx Screw K50 X 16 |
