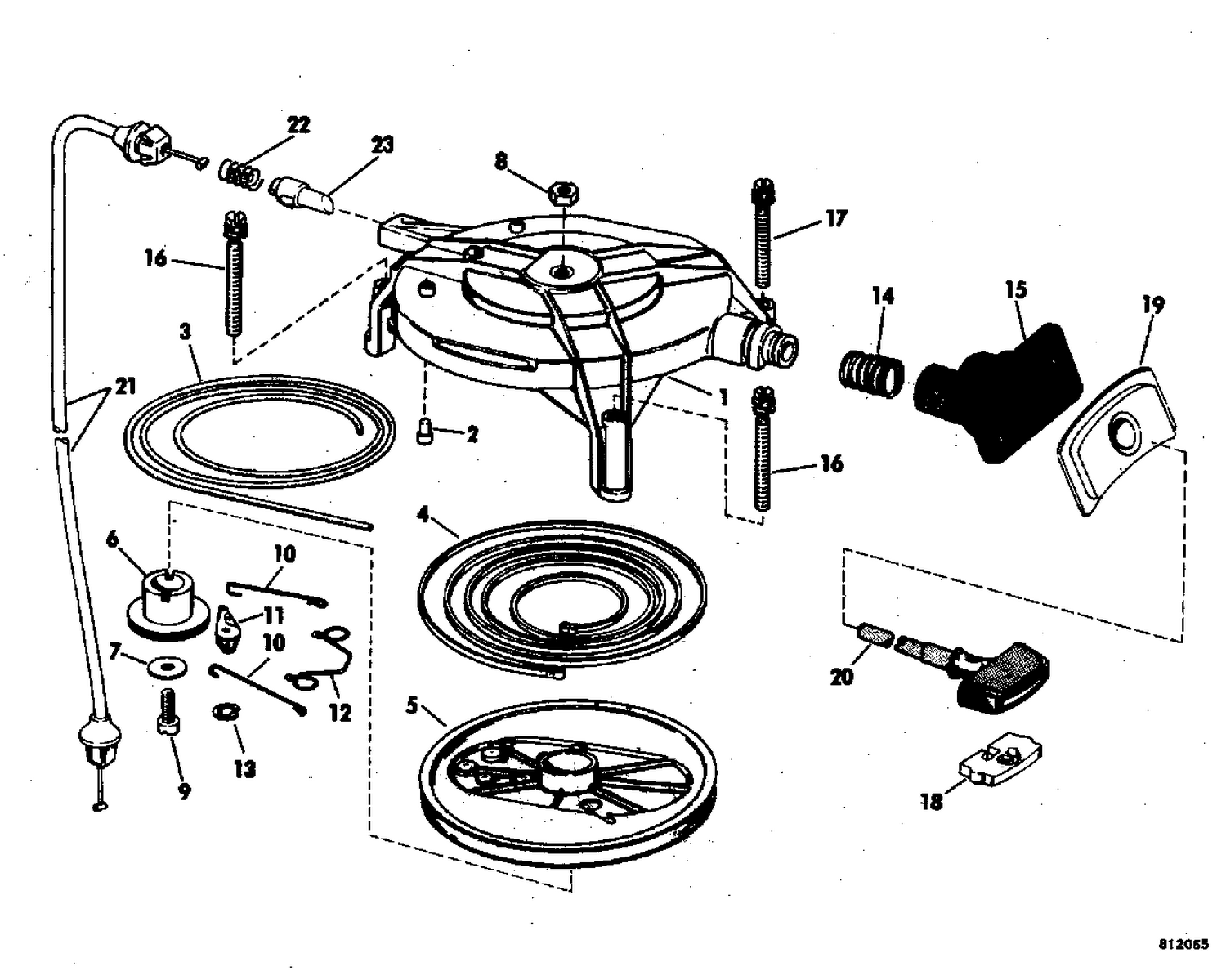

REWIND STARTER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 3 | ROPE | Ref: 4 0395460 **SPRING, Starter This part replaces 0307573. 0395460 |
| 6 | 0323247 | SPINDLE, Starter |
| 7 | 0306823 | SCREW, Upper mount |
| 9 | 0336135 | SCREW, Flywheel This part replaces 0306284. |
| 10 | 0203725 | LINK SPRING TO PAWL |
| 19 | 0326293 | HANDLE, Starter |
| 21 | 0390455 | CABLE Assy, Starter lockout |
| 22 | 0325338 | RESSORT, plongeur |
| 0391456 | 0398036 | REWIND STARTER Assy This part replaces 0391456. |
