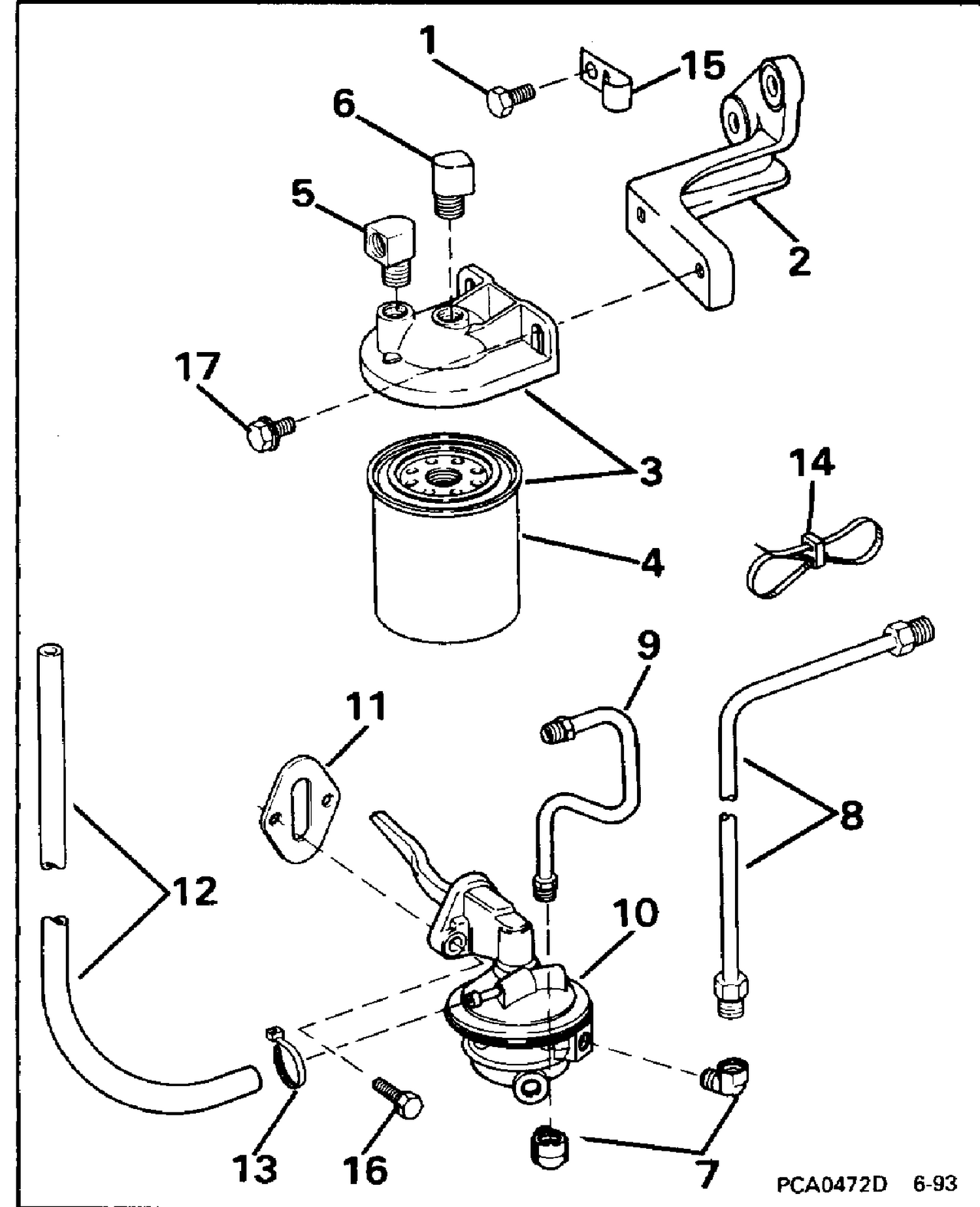

| Ref | Part Number | Description |
|---|
| 1 |
3853558 |
BOLT, Bracket to head |
| 2 |
3853379 |
BRACKET, Fuel filter |
| 3 |
3850861 |
COVER & FUEL FILTER ASSY |
| 4 |
5012363 |
Filter Ay This part replaces 0502906. |
| 5 |
0174180 |
FITTING, Fuel line to filter This part replaces 3852014. |
| 6 |
3852702 |
FITTING, Filter outlet |
| 7 |
3852525 |
FITTING, Fuel pump |
| 8 |
3854058 |
FUEL LINE, Pump to carb |
| 8 |
3854059 |
FUEL LINE, Pump to carb |
| 9 |
3854024 |
FUEL LINE, Filter to pump |
| 9 |
3854039 |
FUEL LINE, Filter to pump |
| 10 |
3854053 |
FUEL PUMP ASSY. |
| 10a |
505075343 |
Ski Blade Viper Red |
| 10b |
505071812 |
Retainer 17mm long |
| 10c |
505075345 |
White, Handle |
| 10d |
505072133 |
Retainer 23mm Long |
| 10f |
860203079 |
Carbide Runner Square Kit This part replaces 860202518. |
| 10g |
233281414 |
Hex. Flange Elastic Nut M8 |
| 11 |
0311064 |
GASKET, Fuel pump This part replaces 3852095. |
| 12 |
0909938 |
HOSE, Fuel overflow This part replaces 3854242. |
| 13 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 15 |
3853261 |
CLAMP, Fuel line |
| 16 |
3853326 |
SCREW, Bracket to engine |
| 200 |
250000703 |
Hex. Screw M10 X 130 |
| 210 |
505073691 |
Ski Axle |
| 300 |
505075575 |
Bright White, LH Ski Leg +10, LYNX |
| 310 |
505075576 |
Bright White, RH Ski Leg +10, LYNX |
| 320 |
505072690 |
Leg Bushing |
| 330 |
505074949 |
Spacer |
| 400 |
505074758 |
LH Lower Suspension Arm |
| 410 |
505074759 |
RH Lower Suspension Arm |
| 420 |
505073330 |
Bushing |
| 430 |
505075323 |
Bushing |
| 440 |
505072634 |
Wear Plate |
| 445 |
505072448 |
O-Ring |
| 450 |
250001024 |
Screw Hex. M10 X 70 |
| 455 |
250001024 |
Screw Hex. M10 X 70 |
| 480 |
505073844 |
Plate |
| 500 |
505074760 |
LH Upper Suspension Arm |
| 510 |
505074761 |
RH Upper Suspension Arm |
| 520 |
505073329 |
Bushing |
| 530 |
505075322 |
Bushing |
| 540 |
250001023 |
Screw Hex. M10 X 60 |
| 545 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 550 |
250001023 |
Screw Hex. M10 X 60 |
| 555 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 660 |
503189564 |
Washer |
| 670 |
505072392 |
Washer |
| 680 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 685 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 690 |
505072448 |
O-Ring |
| 800 |
505074719 |
Stabiliser |
| 810 |
505072064 |
Bushing |
| 830 |
505073731 |
Stabilisator Lever |
| 840 |
207663056 |
Hex Flange Screw M6 X 1.0 X 30 |
| 850 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 860 |
505072204 |
Sway Bar Double Joint Link |
| 870 |
207663056 |
Hex Flange Screw M6 X 1.0 X 30 |
| 880 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 1200 |
505074133 |
Ball Joint |
| 1230 |
503192491 |
Washer |
| 1240 |
232521464 |
Hex Elastic Nut M12 X 1.25 |
| 1300 |
293370070 |
Circlip |
| 1400 |
505072913 |
Upper Ball Joint |
| 1410 |
293370098 |
Snap Ring |
| 1910 |
503192496 |
Washer |
| 1920 |
233201464 |
Hex. Elast. Flanged Nut M10 x 1.5 |
