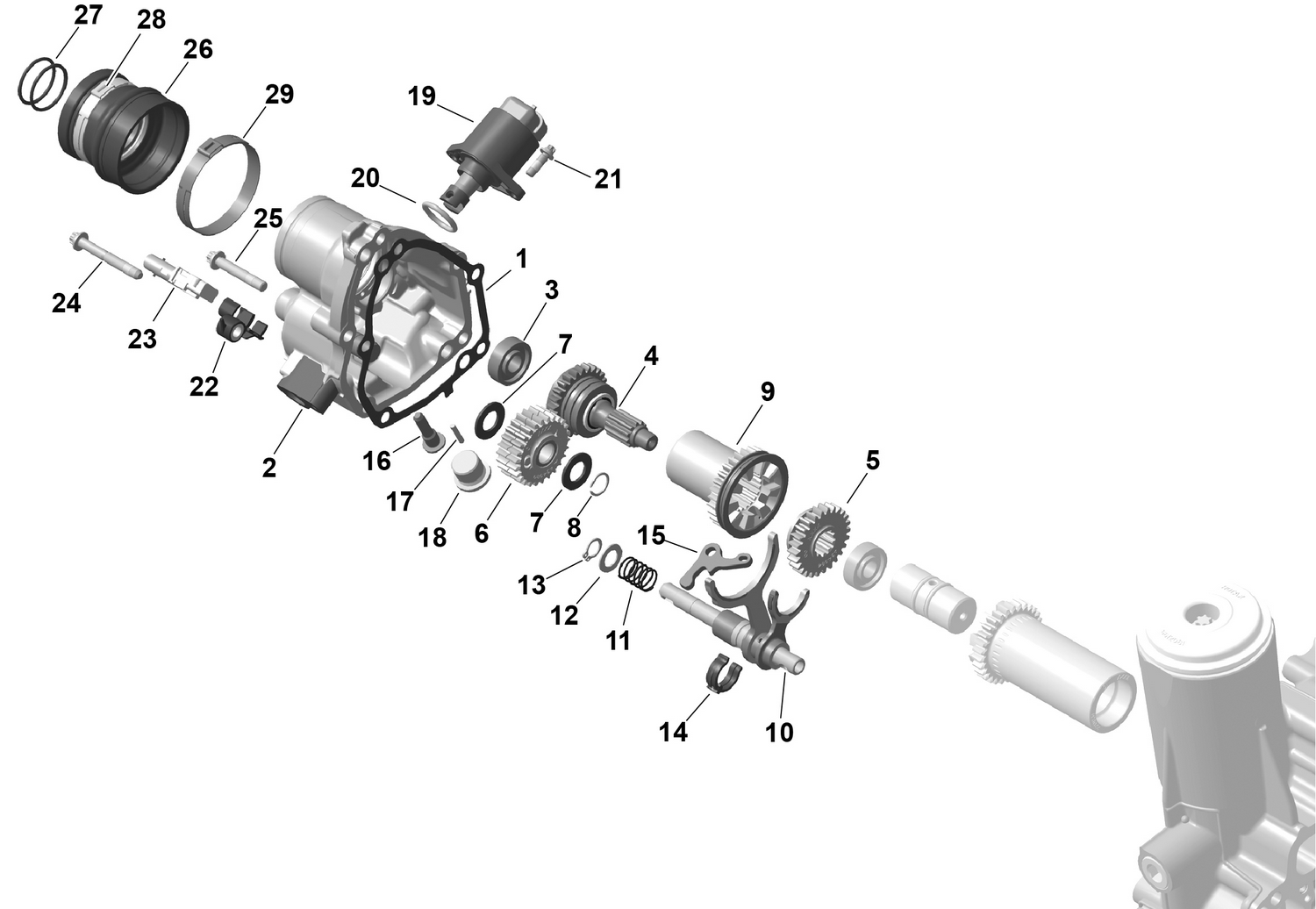

01- ROTAX - iDF Gearbox
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 420232100 | Ball Bearing |
| 5 | 420684272 | Countershaft |
| 6 | 420434984 | Gear |
| 8 | 420926211 | Washer |
| 9 | 420245251 | Groove Ring |
| 10 | 420820468 | Driven Shaft Ass'y |
| 12 | 420638107 | Compression Spring |
| 13 | 420245330 | Snap Ring |
| 14 | 420261241 | Holding Clamp With Magnet |
| 15 | 420253603 | Rocker Arm |
| 16 | 420241151 | Bearing Bolt M8X1 |
| 17 | 420932849 | Needle Pin B 3X15.8 |
| 18 | 420240273 | Plug Screw |
| 19 | 420265844 | Servomotor Ass'y |
| 20 | 420450450 | O-Ring |
| 21 | 420440173 | Torx-Flange Screw M5X15 |
| 22 | 420951361 | Sensor Holder |
| 23 | 420665952 | Linear Position Sensor |
| 24 | 420641198 | Torx Flange Screw M6 X 45 |
| 25 | 420641258 | Torx Flange Screw M6 X 35 |
| 28 | 420853023 | Gear Clamp 46.8-50.0MM |
