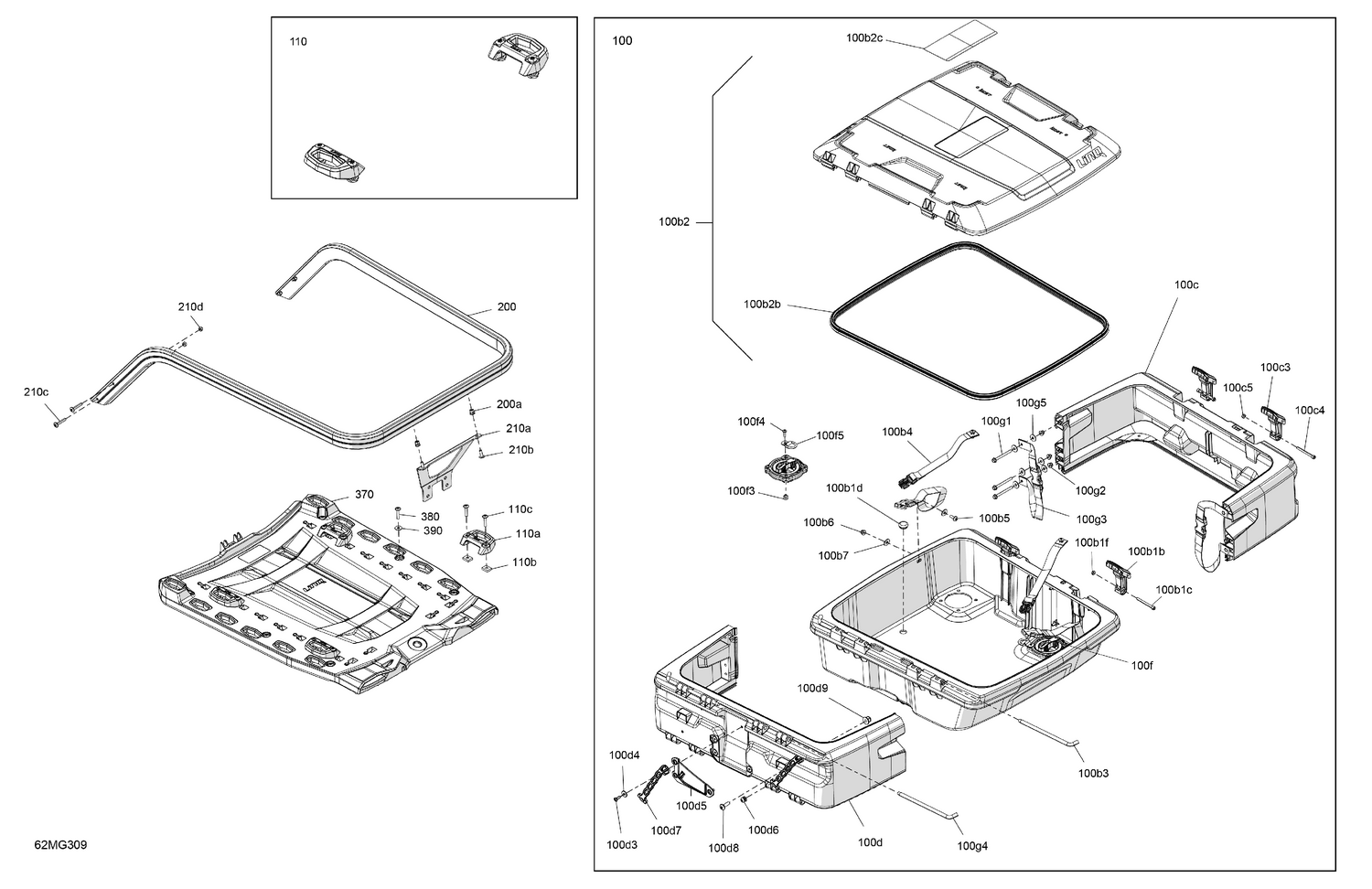

07- Body - Cargo
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 100b1c | 205066560 | Socket Head Screw M6 X 65 |
| 100b1d | 705003464 | Cap |
| 100b1f | 232561200 | Brass Elastic Stop Nut M6 |
| 100b2b | 520003483 | Gasket |
| 100b2c | 520003360 | Warning Label |
| 100b3 | 511002047 | Hinge Pin |
| 100b4 | 520003366 | Retaining Strap |
| 100b5 | 250000712 | Torx Screw M6 X 20 |
| 100b6 | 233261494 | Hex. Flange Elastic Nut M6 |
| 100b7 | 234062670 | Stainless Steel Flat Washer |
| 100c3 | 520003357 | Deep Black, Lid Latch |
| 100c4 | 205066560 | Socket Head Screw M6 X 65 |
| 100c5 | 232561200 | Brass Elastic Stop Nut M6 |
| 100d3 | 250000720 | Torx Screw K50 X 16 |
| 100d4 | 234062670 | Stainless Steel Flat Washer |
| 100d5 | 520003412 | Axe Support |
| 100d6 | 511001453 | Retaining Rod |
| 100d7 | 520002076 | Retaining Strap |
| 100d8 | 250000712 | Torx Screw M6 X 20 |
| 100d9 | 233261494 | Hex. Flange Elastic Nut M6 |
| 100f3 | 293450410 | Specialized Nut |
| 100f4 | 250001369 | Torx-Truss Bolt M/S M5 X 18 Nylon |
| 100f5 | 229000353 | Ring |
| 100g1 | 207667056 | Hex. Flange Screw M6 X 70 |
| 100g2 | 233261494 | Hex. Flange Elastic Nut M6 |
| 100g3 | 520003443 | Retaining Strap |
| 100g4 | 511002047 | Hinge Pin |
| 100g5 | 234062670 | Stainless Steel Flat Washer |
| 110a | 860203055 | Linq Anchorage Kit |
| 110b | 511000822 | Threaded Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 200a | 293450275 | Insert |
| 210a | 511001266 | Rear Support Rack |
| 210b | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 210c | 250001258 | Screw Torx M6 X 35 |
| 210d | 232561414 | Elastic Stop Nut M6 |
| 370 | 511001145 | Multi Purpose Plate |
| 380 | 250000843 | Torx Truss Screw M6 X 30 |
