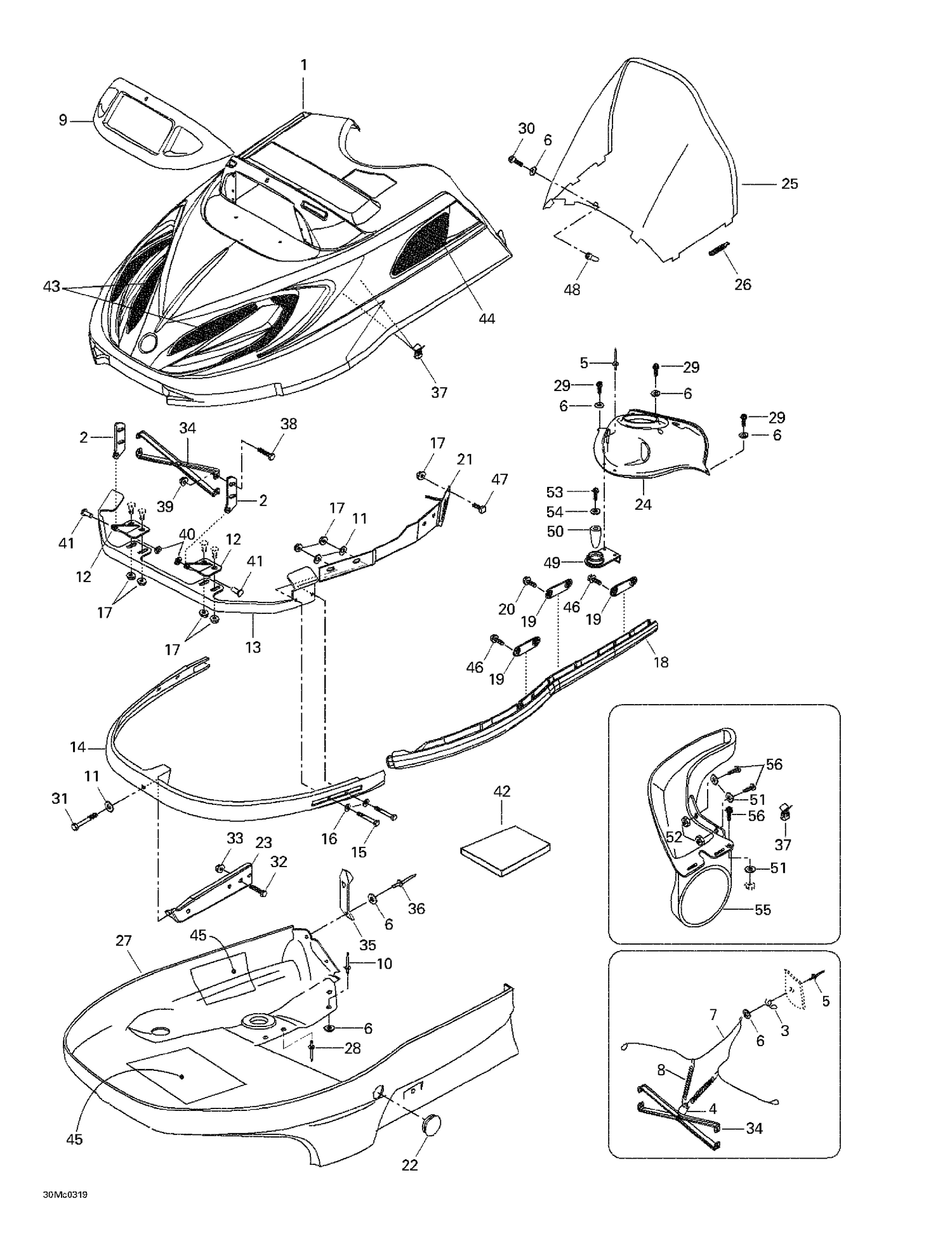

09- Cab, Console, Bottom Pan
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| M5144965 | Pare-Chocs | DR M5144965 |
| M5144965 | RH | Bumper M5144965 |
| M5246262 | Grille | Avant GA M5246262 |
| M5246262 | LH | Front Grill M5246262 |
| M5246400 | RH | Support M5246400 |
| M5246400 | Support | DR M5246400 |
| M5346263 | Grille | Latérale GA M5346263 |
| M5346263 | LH | Side Grill M5346263 |
| 1 | M5146256 | Hood |
| 2 | 517261100 | UPPPER HINGE - Call your local BRP dealership |
| 3 | M5442870 | Cable Keeper |
| 4 | 415058300 | RING - Call your local BRP dealership |
| 5 | 36005 | Rivet This part replaces M36005. |
| 6 | 20008 | Washer 5,3 mm This part replaces M20008. |
| 7 | M5342674 | Retainer Cable |
| 8 | 5442675 | Spring This part replaces M5442675. |
| 9 | 572079200 | Lamp Moulding |
| 10 | 36005 | Rivet This part replaces M36005. |
| 11 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 12 | 517289900 | Welded Lower Hinge |
| 13 | 517265100 | Painted Bracket Hinge |
| 14 | 517265400 | Front Bumper |
| 15 | 207063044 | Hex. Screw M6 X 30 |
| 16 | 224061121 | Flat Washer |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 18 | M5144964 | LH Bumper |
| 19 | M5446213 | Side Bracket |
| 20 | M40322 | Screw |
| 21 | M5246399 | LH Support |
| 22 | 570277300 | Bottom Pan Cap |
| 23 | M5246183 | Front Support |
| 24 | M5146854 | Dash |
| 25 | M5147892 | WINDSHIELD - Call your local BRP dealership |
| 26 | 570023800 | Windshield Latch |
| 27 | M5145054 | Botton Pan |
| 28 | M36036 | Black, Rivet |
| 29 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 30 | M40358 | Screw M5 X 30 |
| 31 | M40867 | Screw |
| 32 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 33 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces M33201. |
| 34 | 517278100 | Hood Reinforcement |
| 35 | 570025900 | BLACK LATCH - Call your local BRP dealership |
| 36 | 36009 | Rivet This part replaces M36009. |
| 37 | 414227300 | Clip |
| 38 | M40864 | Screw M5 x 20 |
| 39 | M33062 | NUT M5 - Call your local BRP dealership |
| 40 | 389804300 | Push Nut |
| 41 | 390906200 | FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 42 | 414632400 | Acoustic Foam |
| 43 | M5246261 | RH Front Grill |
| 44 | M5347250 | RH Side Grille |
| 45 | M5444437 | Sheet-reflector |
| 46 | M40377 | Screw |
| 47 | M5446813 | Screw |
| 48 | 250100018 | NUT M5 - Call your local BRP dealership This part replaces M28050. |
| 49 | M5446875 | Plate guide |
| 50 | M5446857 | Guide Pin |
| 51 | 234051410 | Flat Washer M5 |
| 52 | M33062 | NUT M5 - Call your local BRP dealership |
| 53 | M40375 | Screw |
| 54 | M20038 | WASHER - Call your local BRP dealership |
| 55 | M5246991 | Inlet Duct |
