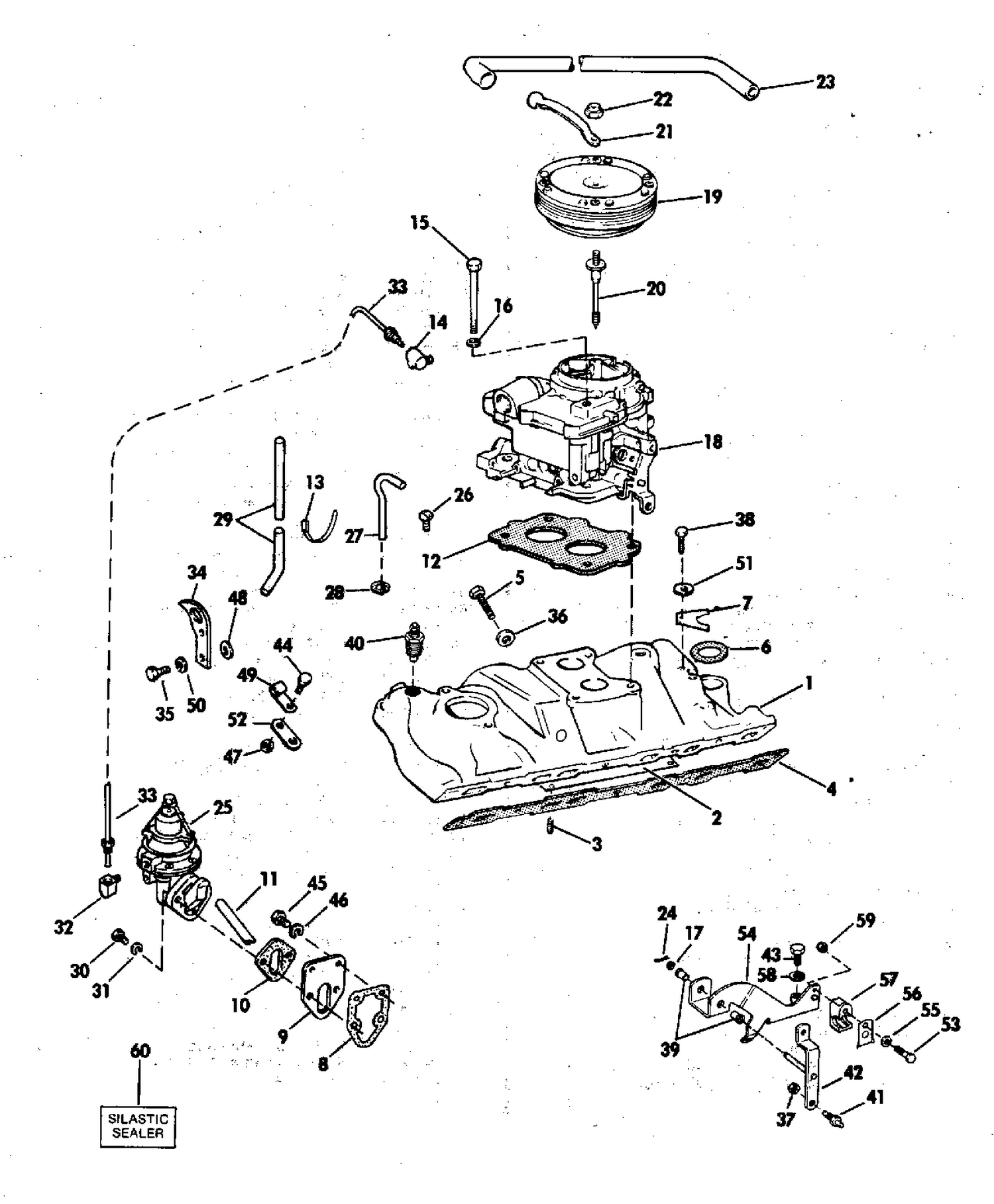

| Ref | Part Number | Description |
|---|
| 1 |
6269731 |
MANIFOLD, Intake |
| 2 |
0461386 |
GUARD, Intake manifold |
| 3 |
3959544 |
STUD, Gaurd |
| 4 |
0471828 |
GASKET, Manifold |
| 5 |
0435611 |
BOLT, Hex, manifold to head, 3/8-16 x 1-1/8" |
| 5 |
3736035 |
BLT, Mnfld to hd (#1, #2, #6 l sde #6 r sde |
| 5 |
3951486 |
STUD, Manifold to head |
| 5 |
9420462 |
BOLT, Manifold to head |
| 6 |
3932344 |
GASKET, Dist. to manifold |
| 7 |
14007385 |
CLAMP, Distributor |
| 8 |
0464632 |
GASKET, Plate to engine |
| 9 |
14006701 |
PLATE, Fuel pump mounting |
| 10 |
3705042 |
GASKET, Fuel pump mounting |
| 11 |
0464603 |
PUSH ROD, Fuel pump |
| 12 |
0909758 |
GASKET, Caarburetor 185 hp |
| 13 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 14 |
0310924 |
CLAMP, Main cable to adapter |
| 15 |
0306435 |
SCREW, Brace to alternator |
| 16 |
0311388 |
ORING |
| 17 |
0303887 |
WASHEER, Pin to swivel bracket |
| 18 |
0983688 |
CARBURETOR ASSY This part replaces 0982359. |
| 19 |
0982303 |
FLAME ARRESTOR |
| 20 |
0909574 |
STUD, Flame arrestor |
| 21 |
3852438 |
CONNECTOR, Crankcase vent This part replaces 0908240. |
| 22 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 23 |
HOSE, |
Crankcase vent |
| 25 |
0982363 |
FULE PUMP ASSY |
| 26 |
0120638 |
LOCKWASHER |
| 27 |
6269950 |
CHOKE TUBE ASSY |
| 28 |
0343615 |
GASKET, Choke tube |
| 29 |
0909938 |
HOSE, Fuel overflow |
| 30 |
0910164 |
SCREW, Pump mounting |
| 31 |
0120177 |
L'WASHER, Alternator to brkt |
| 32 |
3852453 |
FITTING, Cover, return line This part replaces 0908644. |
| 33 |
0982366 |
FUEL LINE ASSY |
| 34 |
0311111 |
LIFT BRACKET |
| 35 |
0306539 |
BOLT, Distributor |
| 36 |
3754153 |
WASHER, Distributor clamp |
| 38 |
0186678 |
BOLT, 3/8-16 x 1 inch |
| 39 |
0908979 |
BUSHING, Pivot bracket |
| 40 |
0171960 |
SENDER, Water temperature |
| 41 |
0910468 |
PIN, Lever |
| 42 |
0982698 |
THROTTLE SHAFT & PIN ASSY |
| 43 |
0306450 |
SCREW |
| 45 |
0306487 |
SCREW |
| 47 |
0311375 |
NUT This part replaces 0316659. |
| 49 |
3852427 |
CLAMP, Fuel line to bracket This part replaces 0907852. |
| 50 |
0120177 |
L'WASHER, Alternator to brkt |
| 51 |
3754153 |
WASHER, Distributor clamp |
| 52 |
0908646 |
BRACKET, Fuel line clamp |
| 53 |
0309654 |
SCREW |
| 54 |
0913563 |
THROTTLE BRACKET This part replaces 0982783. |
| 55 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561. |
| 56 |
0909790 |
RETAINER |
| 57 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 0910641 |
3855104 |
FILTER & GASKET This part replaces 0910641. |
| 0910642 |
0910642 |
BOWL |
| 0910643 |
0910643 |
SPRING, Filter |
| 0982941 |
0982941 |
BOWL RETAINER & SCR |
