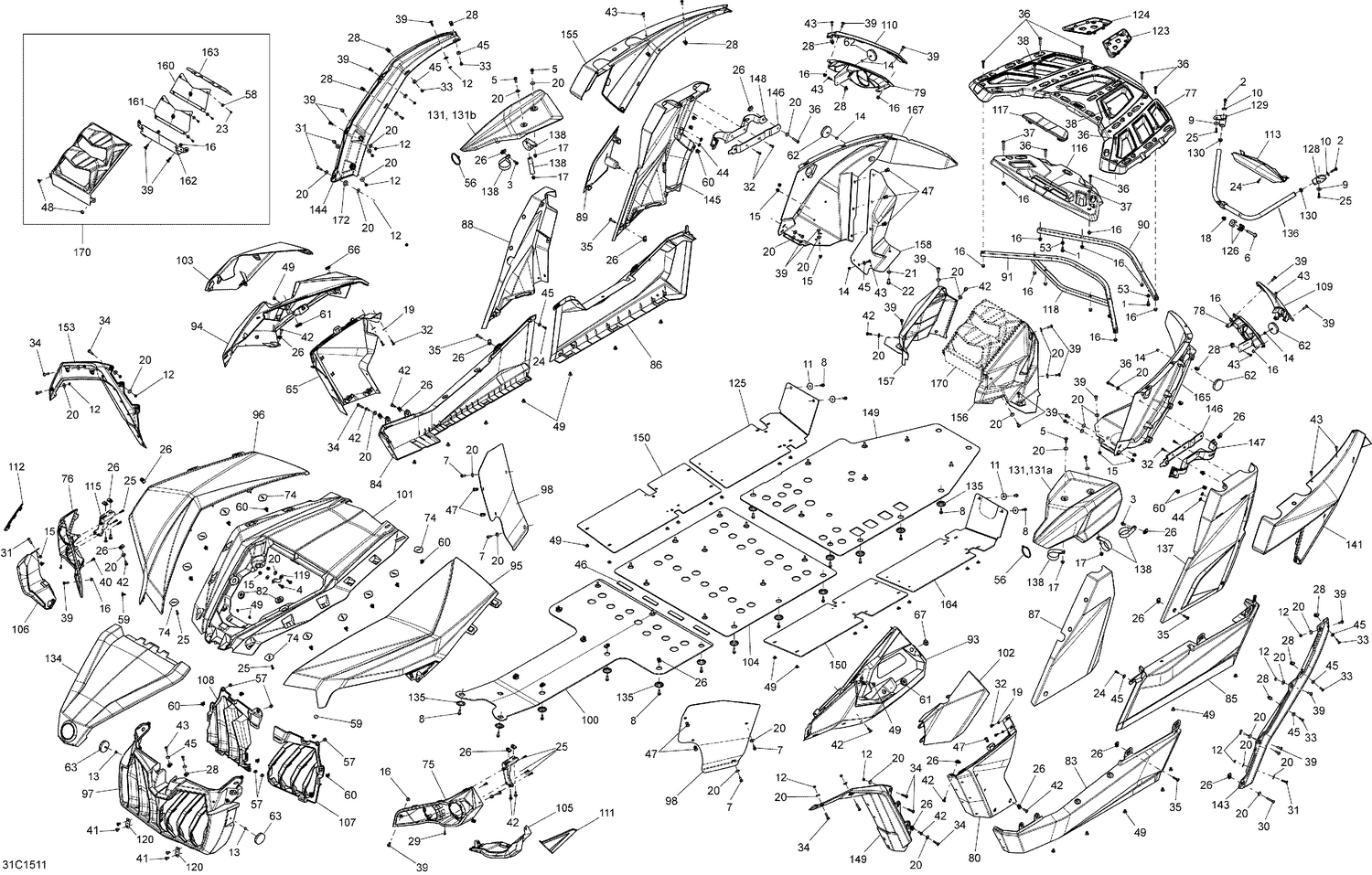

09- Body And Accessories _31C1511
Parts (93)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 |
| 3 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4 | 207662054 | Hex. Flange Screw M6 X 20 |
| 5 | 207662084 | Hex. Flange Screw M6 X 20 |
| 6 | 207687044 | Hex. Flange Screw M8 X 70 |
| 7 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 8 | 210262050 | Hexagonal Head Screw |
| 9 | 224060201 | Flat Washer |
| 10 | 224061201 | Flat Washer |
| 11 | 224081301 | Flat Washer |
| 13 | 233251434 | Flange Elastic Nut M5 |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 233261434 | Flange Elastic Nut M6 |
| 17 | 207662084 | Hex. Flange Screw M6 X 20 |
| 18 | 233281414 | Hex. Flange Elastic Nut M8 |
| 19 | 234051410 | Flat Washer M5 |
| 20 | 234062670 | Stainless Steel Flat Washer |
| 24 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 25 | 241152060 | Hex. Flange Screw K50 X 20 |
| 26 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 28 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 29 | 250000202 | Self Tapping Screw #8 X 5/8 |
| 30 | 250000215 | Torx Screw M6 X 45 |
| 31 | 250000284 | Torx Screw M6 x 25 |
| 32 | 250000297 | Truss Head Torx Screw K50 X 20 |
| 33 | 250000762 | Torx Screw M5 X 25 This part replaces 250000300. |
| 35 | 250000843 | Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 36 | 250000646 | Black, Torx Screw M6 X 35 |
| 39 | 250000712 | Torx Screw M6 X 20 |
| 40 | 250000720 | Torx Screw K50 X 16 |
| 41 | 250000721 | Torx Truss Screw M6 X 16 |
| 42 | 250000722 | Torx Screw M6 X 20 |
| 43 | 250000724 | Torx Screw M5 X 20 |
| 44 | 250100129 | PUSH NUT - Call your local BRP dealership |
| 45 | 250200025 | Washer M5 |
| 46 | 291001932 | Pad |
| 47 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 48 | 293150103 | Pop Rivet 3/16" |
| 49 | 293150104 | Pop Rivet 3/16" |
| 53 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 56 | 293750008 | Tie Wrap 368 mm |
| 57 | 293830005 | Rubber Bumper |
| 59 | 414644300 | Black, Dart |
| 60 | 517302785 | Edge Clip |
| 61 | 517303756 | Grommet |
| 62 | 705011221 | Red Reflector This part replaces 705002408. |
| 63 | 705011222 | Amber Reflector This part replaces 705002409. |
| 66 | 705003264 | Grommet |
| 74 | 705003841 | Support Plate |
| 75 | 705004508 | LH Front Facia |
| 76 | 705004509 | RH Front Facia |
| 77 | 715002367 | REAR RACK KIT - Call your local BRP dealership |
| 78 | 705004731 | LH Rear Facia |
| 79 | 705004732 | RH Rear Facia |
| 82 | 705005156 | Oval Washer |
| 83 | 705005423 | Black, LH Lower Panel |
| 84 | 705005424 | Black, RH Lower Panel |
| 85 | 705005425 | Black, LH Rear Lower Panel |
| 86 | 705005426 | Black, RH Rear Lower Panel |
| 90 | 705016640 | Sectional Bent Tube This part replaces 705005469. |
| 91 | 705016092 | Bent Sectional Tube This part replaces 705005470. |
| 97 | 705005784 | Front Radiator Grille |
| 98 | 705007827 | INNER FENDER - Call your local BRP dealership |
| 100 | 705005798 | Front Skid Plate |
| 101 | 705005821 | Fixe Center Hood |
| 104 | 705009447 | Skid Plate This part replaces 705005939. |
| 105 | 705008611 | TRIM_FENDER FL B-357 - Call your local BRP dealership |
| 106 | 705008612 | TRIM_FENDER FR B-357 - Call your local BRP dealership |
| 107 | 705005983 | LH Rear Radiator Grille |
| 108 | 705005984 | RH Rear Radiator Grille |
| 111 | 705005992 | LH Front Facia Trim |
| 112 | 705005993 | RH Front Facia Trim |
| 113 | 705005994 | LOGO Support |
| 114 | 705006078 | LH Front Facia Support |
| 115 | 705006079 | RH Front Facia Support |
| 119 | 705006623 | Clamp |
| 120 | 705006635 | Radiator Grille Bracket |
| 123 | 705006713 | LH Bagage Rack Cover |
| 124 | 705006714 | RH BAGAGE RACK COVER - Call your local BRP dealership |
| 127 | 705007044 | Rear Support Facia Clip |
| 128 | 705007045 | LH Rear Facia Support |
| 129 | 705007046 | RH Rear Facia Support |
| 130 | 705007047 | TUBE CONNECTOR - Call your local BRP dealership |
| 135 | 705007171 | Cup |
| 136 | 705007299 | Body Tube |
| 138 | 705005626 | Attache en "P", 2" Dia. |
| 146 | 705007917 | Support Plate |
| 147 | 705007918 | LH REAR FENDER SUPPORT - Call your local BRP dealership |
| 148 | 705007919 | RH REAR FENDER SUPPORT - Call your local BRP dealership |
| 149 | 705008958 | Skid Plate |
| 150 | 705008421 | Side Protector Plate |
| 167 | 705009549 | RH Inner Fender |
