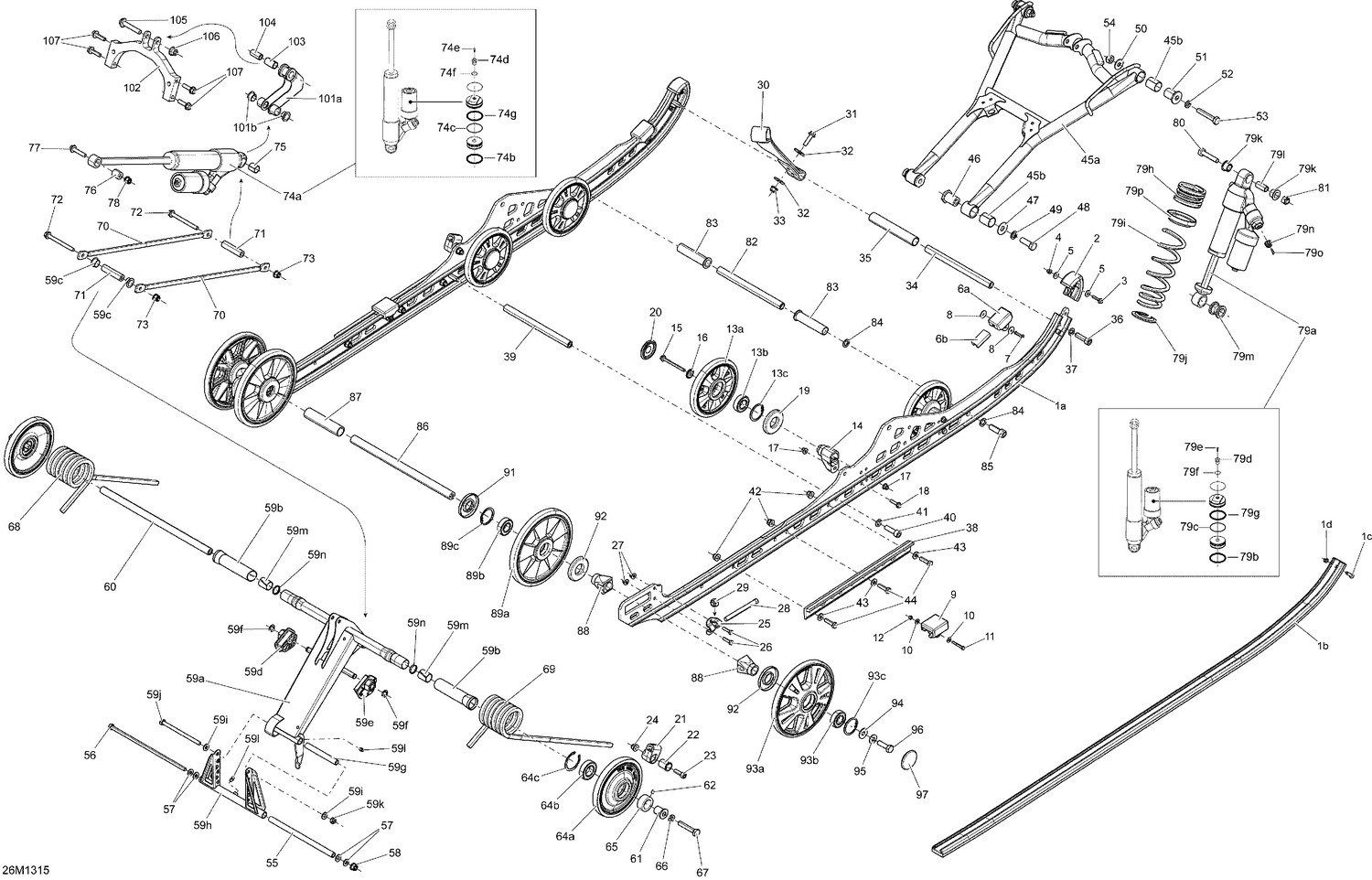

08- Rear Suspension
Parts (142)
| Ref | Part Number | Description |
|---|---|---|
| 1a | 503193382 | Runner 154", Orange |
| 1b | 503191198 | Black, Slider 154 |
| 1c | 208562531 | Phillips Screw M6 X 25 |
| 1d | 232561414 | Elastic Stop Nut M6 |
| 2 | 503192299 | Runner Protector |
| 3 | 207652544 | Hex. Flange Screw M5 X 25 |
| 4 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 5 | 250200140 | Washer |
| 6a | 503195523 | Rubber Stopper Ass'y This part replaces 503193101. |
| 6b | 572084800 | Reinforcement Stopper |
| 7 | 293150142 | Pop Rivet 3/16" |
| 8 | 503191273 | Washer |
| 9 | 503190741 | RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership |
| 10 | 503192493 | WASHER - Call your local BRP dealership |
| 11 | 250000483 | Hex. Cap Screw M5 X 35 |
| 12 | 232551414 | Elastic Stop Nut M5 |
| 13b | 503190396 | Ball Bearing |
| 13c | 415129371 | Retaining Ring |
| 14 | 503193894 | Casted Support This part replaces 503193082. |
| 15 | 207667056 | Hex. Flange Screw M6 X 70 |
| 16 | 503191820 | Wheel Cup M6 |
| 17 | 233261466 | Hex. Flange Elastic Nut M6 |
| 18 | 207662556 | Hex. Flange Screw M6 X 25 |
| 19 | 503190434 | Labyrinth Seal |
| 20 | 503192771 | Black, Wheel Cap |
| 21 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 22 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 23 | 205082554 | Socket Screw M8 X 25 |
| 24 | 233281466 | Elastic Flange Nut M8 |
| 25 | 503192583 | Tensioner This part replaces 503192814. |
| 26 | 250000479 | HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership |
| 27 | 233261466 | Hex. Flange Elastic Nut M6 |
| 28 | 230100054 | Hex Screw M10 x 100 |
| 29 | 233601466 | Elastic Locking Nut M10 |
| 30 | 503192360 | Stopper Strap |
| 31 | 207683044 | Hex. Flange Screw M8 X 30 |
| 32 | 250200128 | Flat Washer 8 mm |
| 33 | 233281466 | Elastic Flange Nut M8 |
| 34 | 503191260 | Axle Strap |
| 35 | 503191448 | Spacer |
| 36 | 205503554 | Socket Head Screw M10 X 35 |
| 37 | 503192496 | Washer |
| 38 | 503193907 | REINFORCEMENT, BLACK - Call your local BRP dealership This part replaces 503192484. |
| 39 | 503193322 | LOWER SHAFT - Call your local BRP dealership |
| 40 | 205503554 | Socket Head Screw M10 X 35 |
| 41 | 503192496 | Washer |
| 42 | 233281466 | Elastic Flange Nut M8 |
| 43 | 503192494 | Washer |
| 44 | 207183054 | Hex. Cap Screw M8 X 30 |
| 45b | 503191554 | Bushing |
| 46 | 503191966 | Lower Axle |
| 47 | 503190656 | Washer |
| 48 | 250000537 | Hex. Cap Screw M12 X 35 |
| 49 | 503192491 | Washer |
| 50 | 503191926 | Washer |
| 51 | 503190698 | Axle |
| 52 | 503192496 | Washer |
| 53 | 207006056 | Hex. Cap Screw M10 X 60 |
| 54 | 233601466 | Elastic Locking Nut M10 |
| 55 | 503189156 | Pivot Arm Axle |
| 56 | 503192440 | Bolt M8 X 248mm |
| 57 | 503192494 | Washer |
| 58 | 233281466 | Elastic Flange Nut M8 |
| 59a | 503192464 | Rear Arm |
| 59b | 572080700 | Bushing |
| 59c | 503191555 | Swivel Bushing |
| 59d | 503191565 | LH Cam Adjuster |
| 59e | 503191566 | RH Cam Adjuster |
| 59f | 293370013 | E-Circlip |
| 59g | 503144300 | Upper Axle, Pivot Arm |
| 59h | 503191209 | Pivot Arm |
| 59i | 503189157 | Washer |
| 59j | 732601197 | Bolt M8, Short |
| 59k | 232581414 | Hex. Elastic Stop Nut M8 |
| 59l | 408200700 | Grease Fitting |
| 59m | 503191556 | Extended Bushing |
| 59n | 503191651 | Washer |
| 60 | 503191215 | Upper Shaft |
| 61 | 503191262 | Bushing |
| 62 | 206260844 | Socket Set Screw M6 X 8 |
| 64b | 503193548 | Ball Bearing This part replaces 503191982. |
| 64c | 415129780 | Retaining Ring |
| 65 | 503168800 | Retaining Ring |
| 66 | 503192496 | Washer |
| 67 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 68 | 503192081 | LH Spring |
| 69 | 503192080 | RH Spring |
| 70 | 503192465 | Link Rod |
| 71 | 503190643 | Axle Bar (Long) |
| 72 | 207688544 | Hex. Flange Screw |
| 73 | 233281466 | Elastic Flange Nut M8 |
| 74b | 415093807 | O-Ring |
| 74c | 415093806 | Piston Ring |
| 74d | 505070398 | Air Valve |
| 74e | 505070399 | Screw |
| 74f | 505070400 | O-Ring |
| 74g | 415093804 | O-Ring |
| 75 | 505072663 | Leg Cushion |
| 76 | 414936000 | Bushing |
| 77 | 207684044 | Hex. Flange Screw M8 X 40 |
| 78 | 233281466 | Elastic Flange Nut M8 |
| 79b | 415093807 | O-Ring |
| 79c | 415093806 | Piston Ring |
| 79d | 505070398 | Air Valve |
| 79e | 505070399 | Screw |
| 79f | 505070400 | O-Ring |
| 79g | 415093804 | O-Ring |
| 79h | 503192744 | Black Spring |
| 79i | 503192724 | Black, Spring |
| 79j | 503194270 | Spring Stopper This part replaces 503192029. |
| 79k | 503189117 | Urethane Bushing |
| 79l | 503189282 | Bushing |
| 79m | 503189271 | Bushing |
| 79n | 505072753 | Adjustment Knob |
| 79o | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 79p | 503192743 | Spring Spacer |
| 80 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 81 | 233601466 | Elastic Locking Nut M10 |
| 82 | 503189272 | CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258. |
| 83 | 503191259 | Center Bushing |
| 84 | 503192491 | Washer |
| 85 | 205523554 | Socket Head Screw M12 X 35 |
| 86 | 503190429 | Rear Axle |
| 87 | 503191263 | Rear Spacer |
| 88 | 503190428 | Rear Wheel Spacer |
| 89b | 503190396 | Ball Bearing |
| 89c | 415129371 | Retaining Ring |
| 91 | 503190682 | Labyrinth Seal |
| 92 | 503190434 | Labyrinth Seal |
| 93b | 503190396 | Ball Bearing |
| 93c | 415129371 | Retaining Ring |
| 94 | 503191910 | Washer |
| 95 | 234201474 | Conical Spring Washer 10 mm |
| 96 | 250000019 | Hex. Screw With Nylon |
| 97 | 503192771 | Black, Wheel Cap |
| 101a | 503192467 | ROCKER - Call your local BRP dealership |
| 101b | 503191555 | Swivel Bushing |
| 102 | 503193384 | Rocker Support |
| 103 | 503193037 | Bushing |
| 104 | 503189282 | Bushing |
| 105 | 207605546 | Hex. Flange Screw M10 X 55 |
| 106 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
