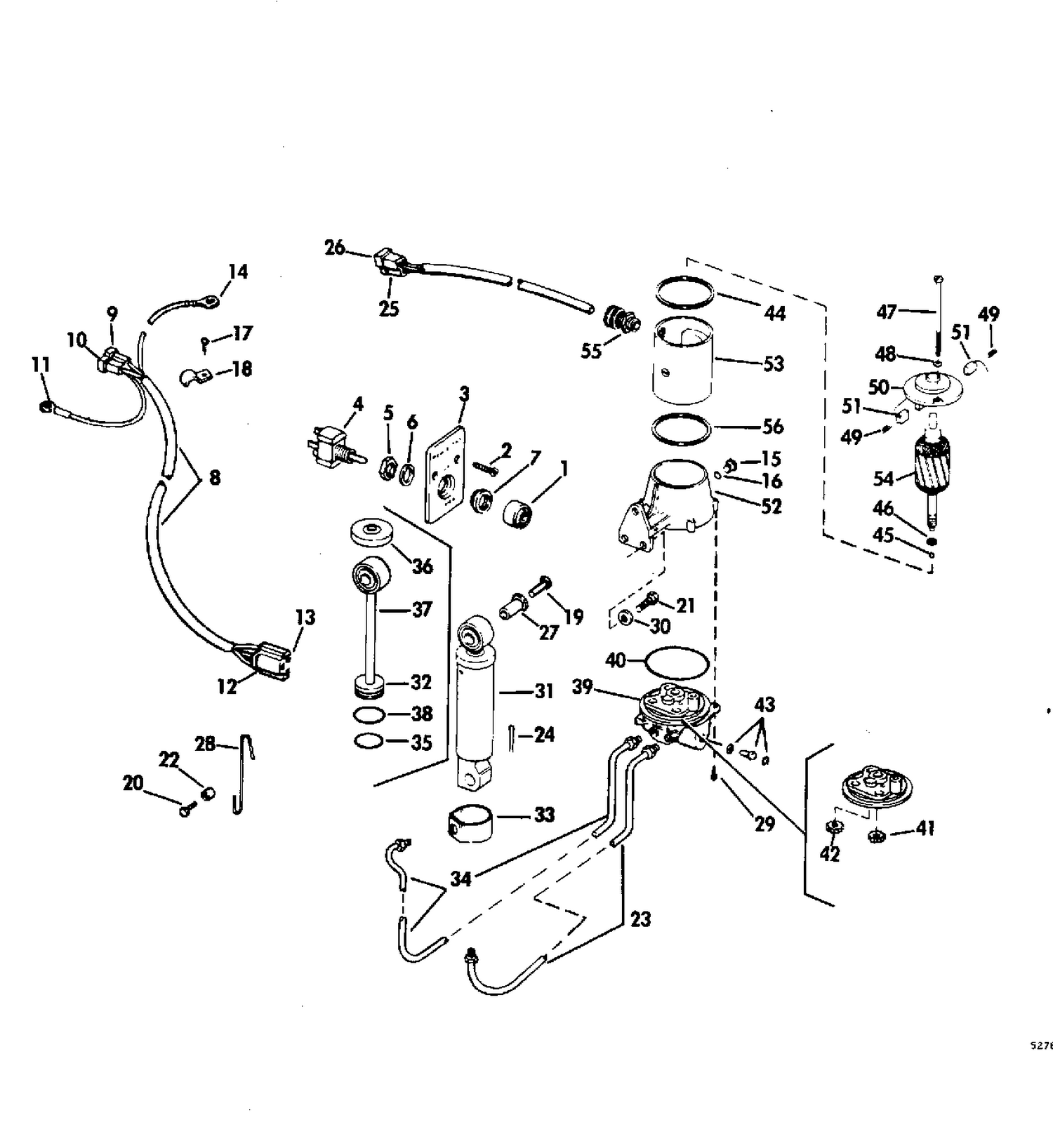

| Ref | Part Number | Description |
|---|
| 3 |
0311847 |
PLATE, Switch |
| 6 |
0900696 |
WASHER |
| 8 |
0172539 |
CABLE ASSEMBLY |
| 10 |
0825886 |
TERMINAL This part replaces 0510541. |
| 15 |
0309998 |
SCREW, Oil filter |
| 19 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 20 |
0904441 |
SCREW |
| 21 |
0329055 |
SCREW, Anode This part replaces 0552952. |
| 22 |
0122401 |
SPACER, Release rod |
| 23 |
0172544 |
LINE, Lower inlet |
| 24 |
0302804 |
COTTER IN |
| 25 |
0309357 |
CONNECTOR |
| 27 |
0122406 |
BUSHING, Rubber |
| 28 |
0122402 |
RELEASE ROD |
| 29 |
0309997 |
SCREW, Valve body |
| 31 |
0172594 |
POWER LIFT CYL ASSY |
| 32 |
0172596 |
PISTON ASSEMBLY |
| 33 |
0172595 |
CYLINDER BAND & NUT |
| 34 |
0172545 |
RETURN LINE ASSY |
| 36 |
0172391 |
END HEAD ASSEMBLY |
| 37 |
0172597 |
PISTON ROD |
| 39 |
0172592 |
VALVE BODY ASSEMBLY |
| 41 |
0122472 |
GEAR, Drive |
| 42 |
0122473 |
GEAR, Idler |
| 48 |
0312013 |
HOUSING |
| 50 |
0172600 |
HEAD ASSEMBLY, Commutator end |
| 52 |
0382949 |
RESERVOIR AND BRACKET ASSEMBLY |
| 53 |
0172599 |
FRAME AND FIELD COIL ASSEMBLY |
| 54 |
0172598 |
ARMATURE ASSY |
| 0172509 |
0172509 |
POWER TILT KIT, Complete |
