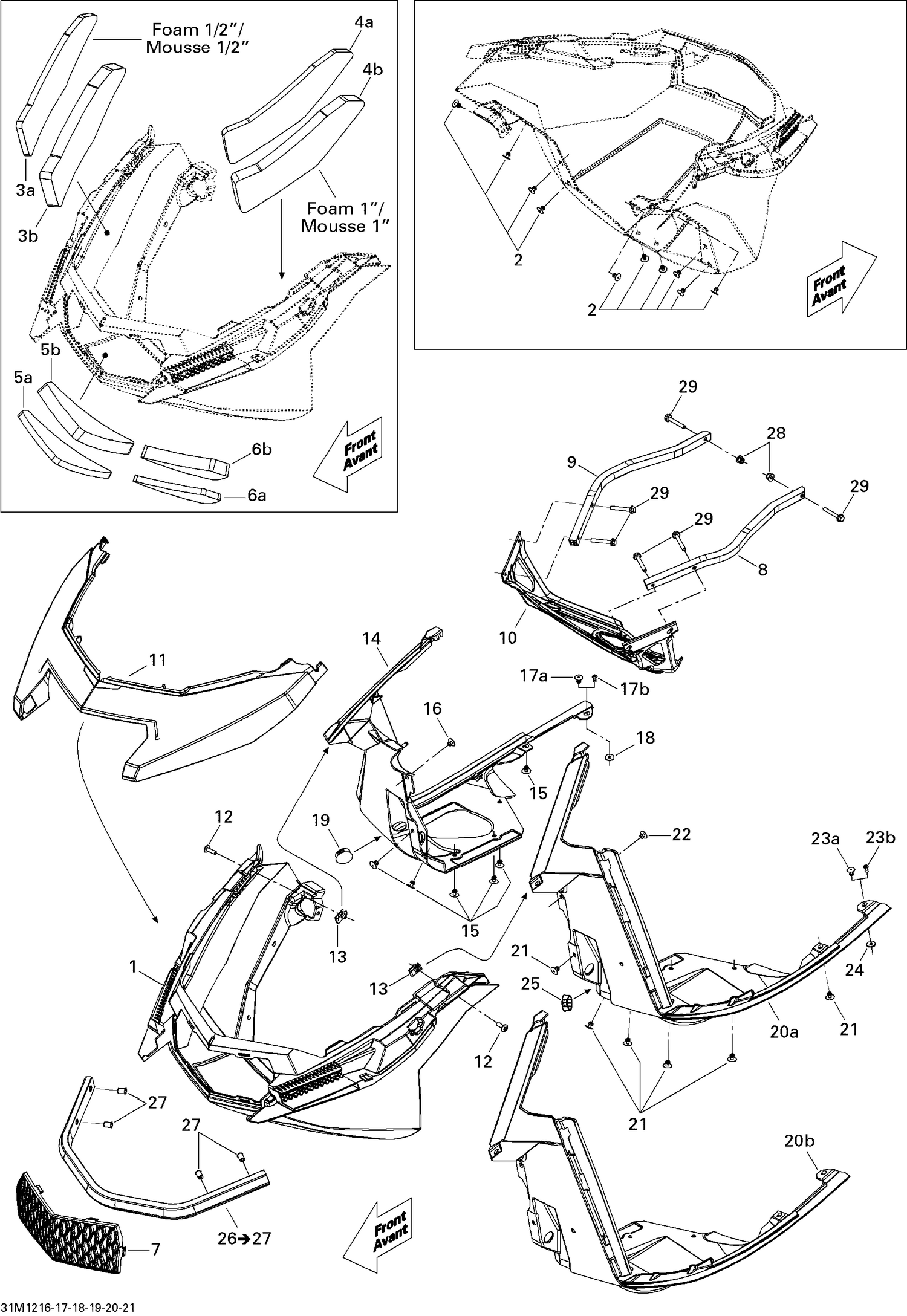

| Ref | Part Number | Description |
|---|
| 1 |
502006873 |
Deep Black Front Bottom Pan |
| 2 |
293150104 |
Pop Rivet 3/16" |
| 3a |
502007216 |
RH UPPER HULL FOAM - Call your local BRP dealership |
| 3b |
XXX |
Not Available As Spare Parts |
| 4a |
502007218 |
LH UPPER HULL FOAM - Call your local BRP dealership |
| 4b |
XXX |
Not Available As Spare Parts |
| 5a |
502007221 |
RH MIDDLE HULL FOAM - Call your local BRP dealership |
| 5b |
XXX |
Not Available As Spare Parts |
| 6a |
502007222 |
LH MIDDLE HULL FOAM - Call your local BRP dealership |
| 6b |
XXX |
Not Available As Spare Parts |
| 7 |
502006887 |
Botton Pan Grille |
| 8 |
502007357 |
LH Support This part replaces 502006925. |
| 9 |
502006926 |
RH Support |
| 10 |
502006938 |
Bracket |
| 11 |
502006898 |
Black Bottom Pan Cap |
| 12 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 13 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 |
502006877 |
RH BOTTOM PAN - Call your local BRP dealership |
| 15 |
293150104 |
Pop Rivet 3/16" |
| 16 |
293150103 |
Pop Rivet 3/16" |
| 17a |
293150104 |
Pop Rivet 3/16" |
| 17b |
XXX |
Not Available As Spare Parts |
| 18 |
517124300 |
Washer |
| 19 |
414916600 |
Black, Nylon Cap |
| 20a |
502006878 |
LH BOTTOM PAN - Call your local BRP dealership |
| 20b |
XXX |
Not Available As Spare Parts |
| 21 |
293150104 |
Pop Rivet 3/16" |
| 22 |
293150103 |
Pop Rivet 3/16" |
| 23a |
293150104 |
Pop Rivet 3/16" |
| 23b |
XXX |
Not Available As Spare Parts |
| 24 |
517124300 |
Washer |
| 25 |
414916600 |
Black, Nylon Cap |
| 27 |
293450275 |
Insert This part replaces 415107300. |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
