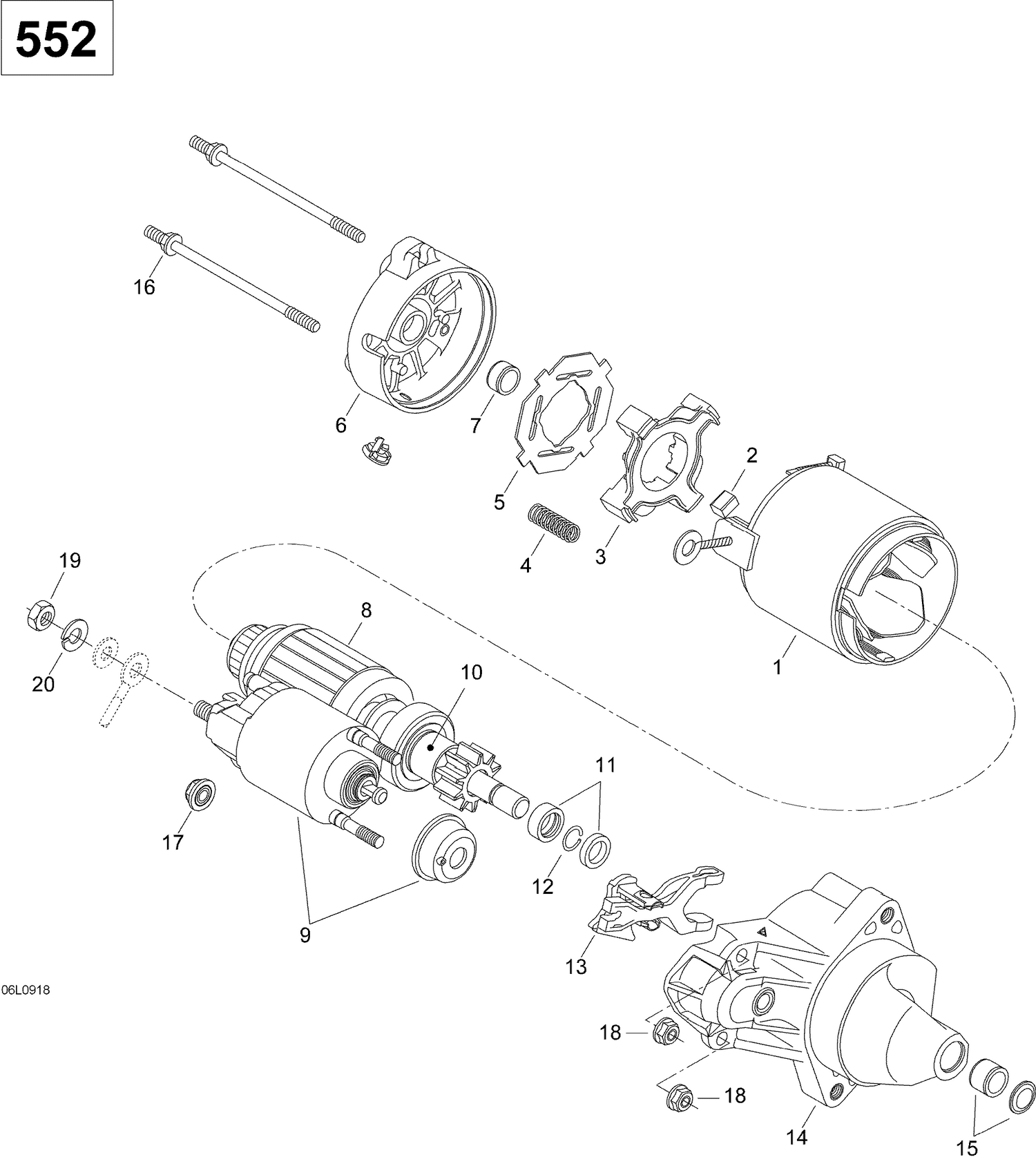

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Housing starter |
| 2 |
410213107 |
BRUSH KIT - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Brush holder |
| 4 |
410209800 |
BRUSH SPRING - Call your local BRP dealership |
| 5 |
410209900 |
INSULATOR - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Housing |
| 7 |
Not |
Available As Spare Part - Bushing brass |
| 8 |
410210200 |
Armature ass'y |
| 9 |
410210300 |
SWITCH ASSY. - Call your local BRP dealership |
| 10 |
410210400 |
STARTER CLUTCH - Call your local BRP dealership |
| 11 |
410212500 |
NUT - Call your local BRP dealership |
| 12 |
410212600 |
CIRCLIP - Call your local BRP dealership |
| 13 |
410213109 |
Lever |
| 14 |
410213113 |
Housing |
| 15 |
410210900 |
BRASS BUSHING - Call your local BRP dealership |
| 16 |
410212000 |
BOLT - Call your local BRP dealership |
| 17 |
410211100 |
NUT - Call your local BRP dealership |
| 18 |
410211200 |
NUT - Call your local BRP dealership |
| 19 |
33003 |
Nut M8 |
