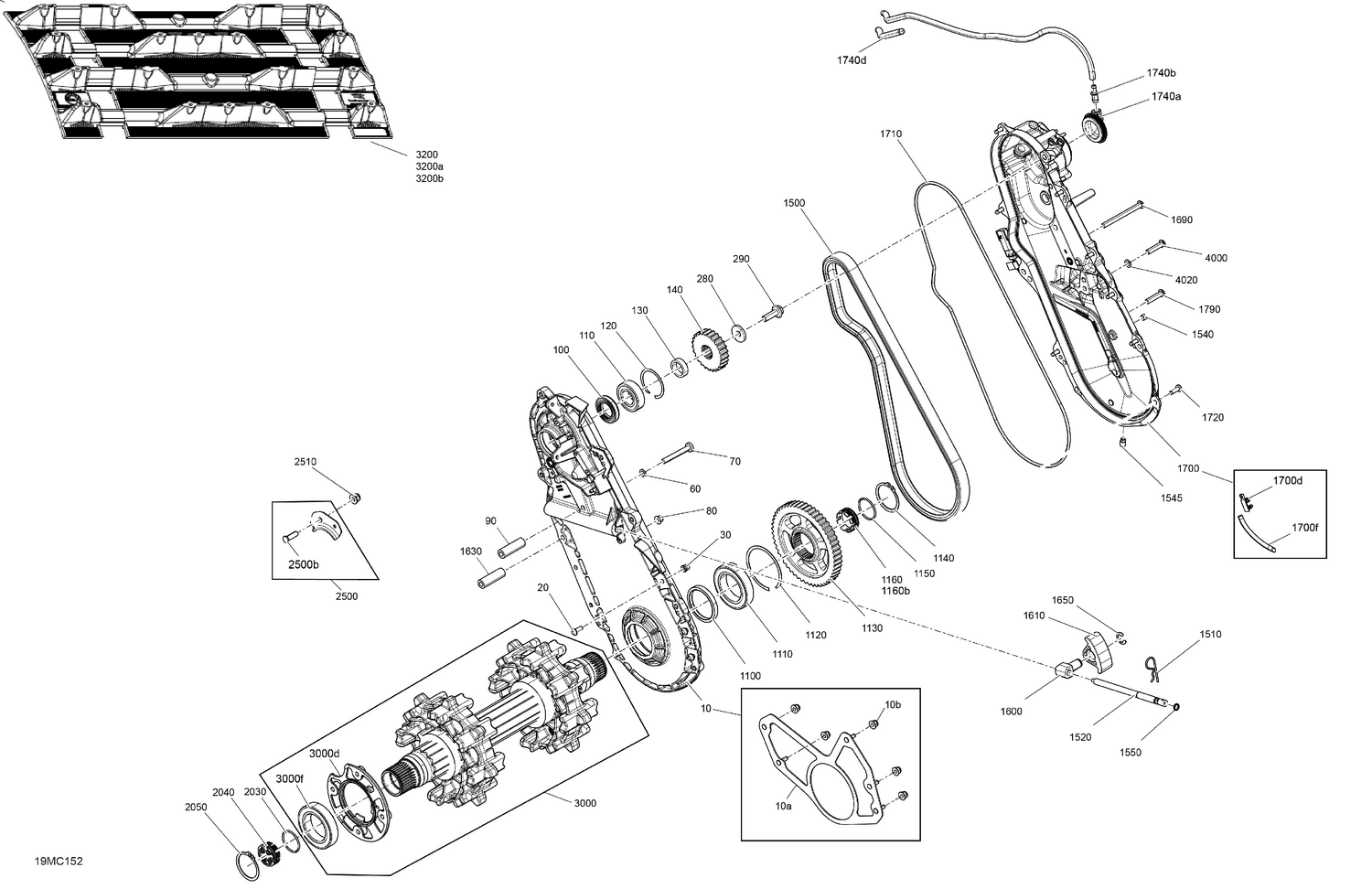

04- Drive - System
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 504153560 | Plate Ass'y |
| 10b | 233261434 | Flange Elastic Nut M6 |
| 20 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 30 | 293150149 | Collar Huck Magna-Grip 6.4 |
| 60 | 504082900 | Washer |
| 70 | 250001052 | Torx Screw Button Head M8 x 70 |
| 80 | 233261434 | Flange Elastic Nut M6 |
| 90 | 504153929 | Spacer |
| 100 | 293200168 | Oil Seal |
| 110 | 293350153 | Ball Bearing |
| 120 | 504152576 | Circlip |
| 130 | 504152628 | Shim |
| 140 | 504153909 | Sprocket 19 Teeth |
| 280 | 504152784 | Spring Washer M10 |
| 290 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 1100 | 293200159 | Oil Seal |
| 1110 | 293350059 | Ball Bearing |
| 1120 | 504152582 | Circlip |
| 1130 | 504153998 | Sprocket 53 Teeth |
| 1140 | 504152572 | Circlip |
| 1150 | 293300201 | O-Ring |
| 1160b | 504154043 | Cap |
| 1500 | 504153397 | Drive Chain 116 Links |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153760 | Adjustment Screw |
| 1540 | 250500013 | Hex. Countersunk Drain Plug |
| 1545 | 250500013 | Hex. Countersunk Drain Plug |
| 1550 | 293300202 | O-Ring |
| 1600 | 504154577 | Chain Tensioner |
| 1610 | 504153312 | Slider Chain |
| 1630 | 504154305 | Spacer |
| 1650 | 293370105 | Circlip |
| 1690 | 207588544 | Hex. Flange Screw M8 X 85, Scotch Grip |
| 1700d | 515178223 | Clip Connector |
| 1700f | 415130141 | Braided Sleeve |
| 1710 | 293300200 | O-Ring |
| 1720 | 250001153 | Hex. Flange Screw M6X20 |
| 1740a | 504152930 | Cap This part replaces 504154304. |
| 1740b | 293710180 | Straight Pipe Fitting |
| 1740d | 515179201 | Heat Shield |
| 1790 | 250001015 | Hex. Flange Screw M6 X 35 |
| 2030 | 293300201 | O-Ring |
| 2040 | 504154043 | Cap |
| 2050 | 504152572 | Circlip |
| 2500b | 250300028 | Clinch Stud, M8 X 25 |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3000d | 504154417 | Retaining Ring |
| 3000f | 293350059 | Ball Bearing |
| 3200a | 415129528 | Track Guide |
| 3200b | 504152651 | Cleat |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
