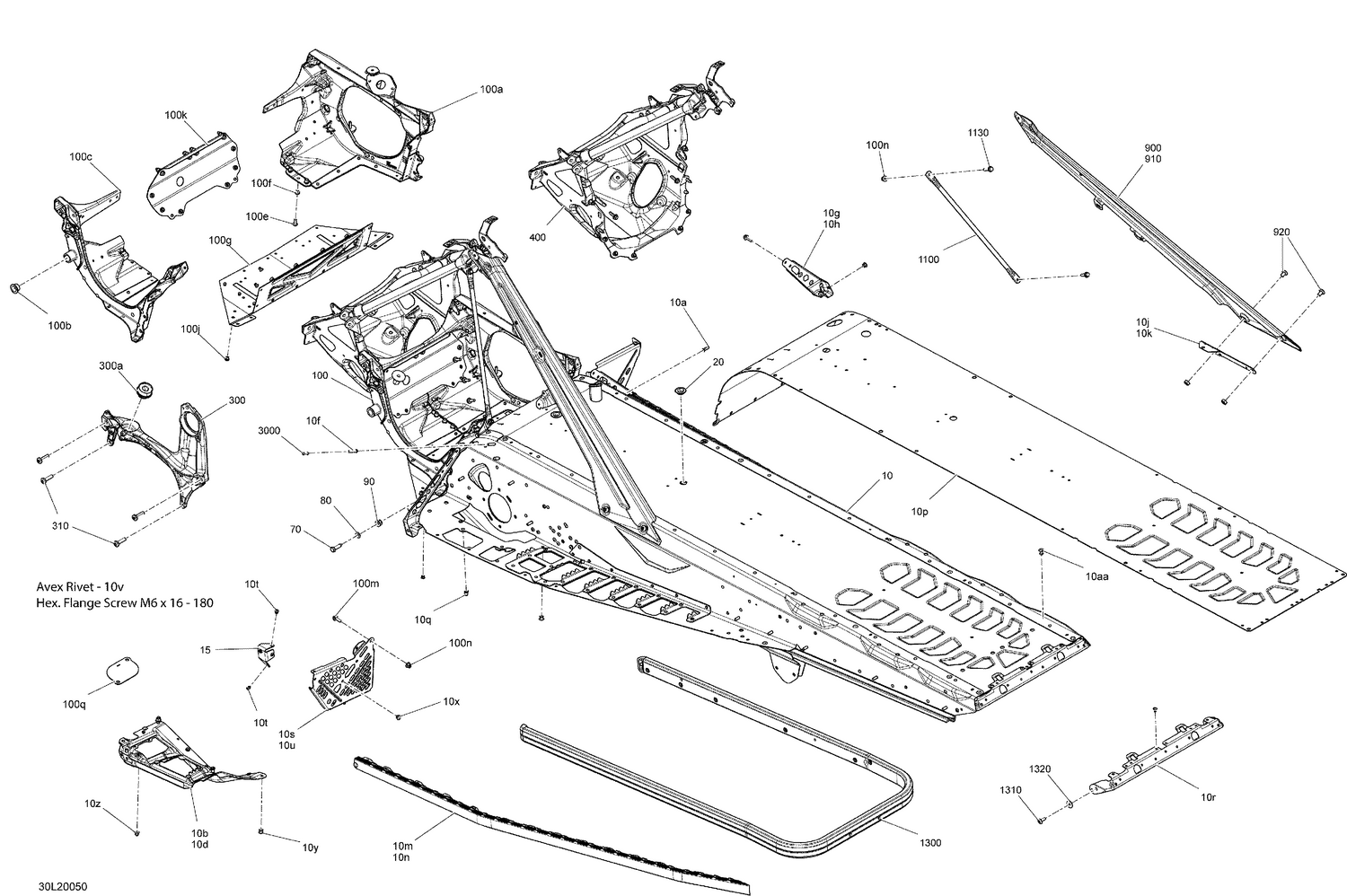

09- Frame - System
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 250300027 | Clinch Stud M6 X 20 |
| 10aa | 293150266 | Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 10f | 250300031 | Clinch Stud M6 X 30 |
| 10g | 518331253 | Stirrup Reinforcement |
| 10h | 518331560 | Deep Black, LH Chasssis Reinforcement |
| 10j | 518330299 | LH Member Fixation Plate |
| 10k | 518331745 | RH Under Chassis Reinforcement This part replaces 518330300. |
| 10m | 518330282 | RH Roller |
| 10n | 518330281 | LH Roller |
| 10p | 518332555 | Radiator Tunnel 165 This part replaces 415130289. |
| 10q | 605636003 | Clinch Nut M6 Hexsert |
| 10r | 518328990 | Rear Cap |
| 10t | 390909200 | Avex Rivet |
| 10u | 518330550 | LH Footrest 400mm |
| 10v | 390909100 | Avex Rivet |
| 10x | 293150096 | Hemlock Rivet, 6.5 mm |
| 10y | 293150119 | Hemlock Rivet, 6.5 mm |
| 10z | 293150174 | Hemlock Rivet, 6.5 mm |
| 15 | 518330998 | LH Front Chassis Reinforcement |
| 20 | 293730052 | Black, Plug |
| 70 | 250000942 | Hex Screw M8 X 30 |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100b | 505073317 | Leg Cushion |
| 100e | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 100f | 293150149 | Collar Huck Magna-Grip 6.4 |
| 100g | 518329342 | Bottom Plate |
| 100j | 293450268 | Insert M5 X 0.8 |
| 100k | 518330100 | Front Member |
| 100m | 207662046 | Hex. Flange Screw M6 X 20 |
| 100n | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100q | 518329454 | Oil Plate |
| 180 | 207661646 | Hex. Flange Screw M6 X 16 |
| 300a | 512061516 | Vibration Damper This part replaces 512060295. |
| 310 | 250001060 | Pan Screw HD.Torx M8X30 |
| 400 | 518334551 | Chassis Suspension Module Ass'y This part replaces 518330570. |
| 910 | 518331040 | RIGHT MEMBER WHITE |
| 920 | 250000887 | Pan Head Torx Screw M8 X 12 |
| 1100 | 518329370 | Upper Colomn Support |
| 1130 | 207662544 | Hex. Flange Screw M6 X 25 |
| 1300 | 860201424 | Bumper Hitch 165 |
| 1310 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1320 | 224061201 | Flat Washer |
