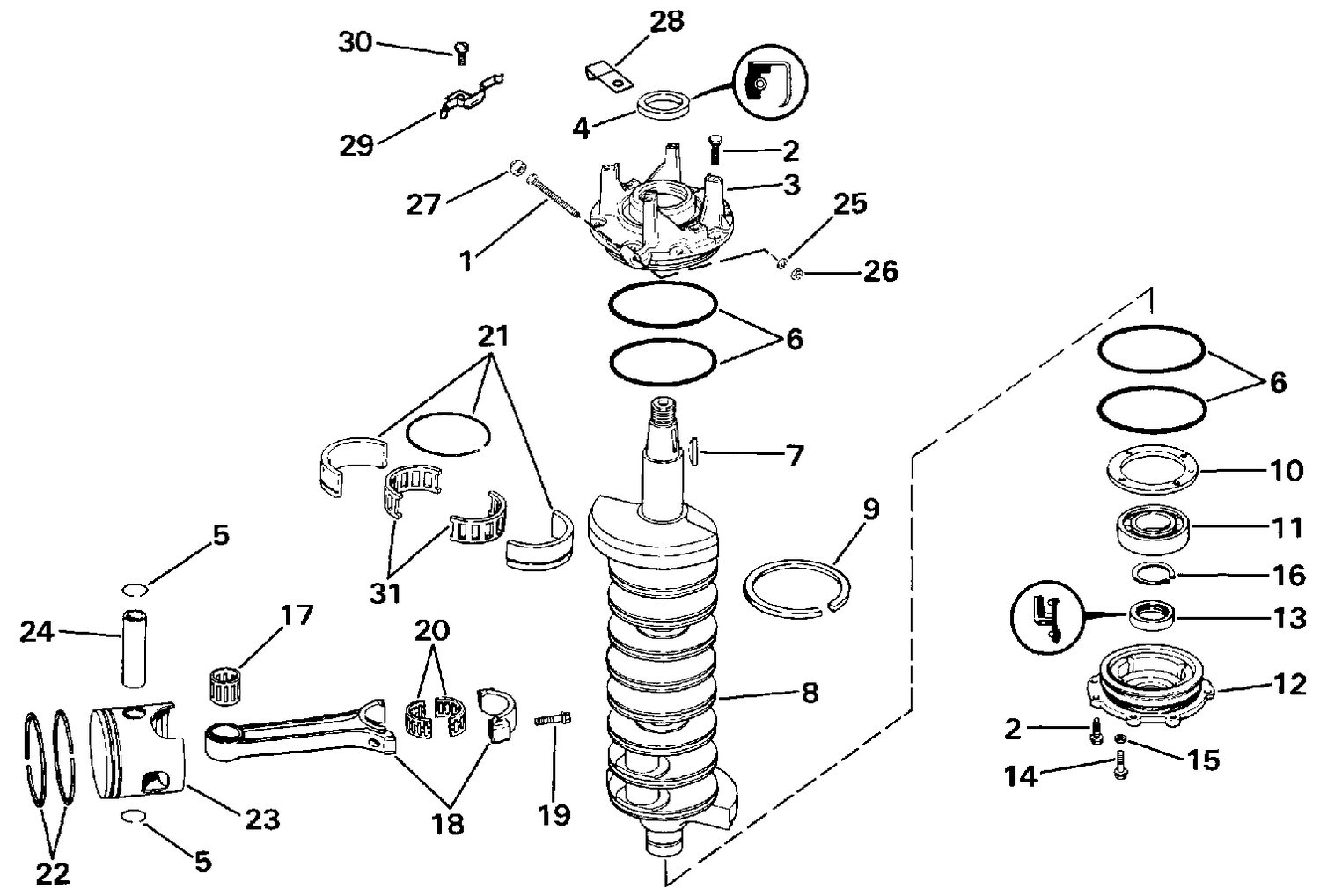

| Ref | Part Number | Description |
|---|
| 3 |
5000574 |
CRANKCASE HEAD & BRG. ASSY. This part replaces 0396668. |
| 8 |
0330906 |
CRANKSHAFT ASSY |
| 9 |
0326749 |
SEAL RING |
| 12 |
5007695 |
CRANKCASE HEAD Assembly, Lower This part replaces 0393613. |
| 16 |
0326047 |
Retaining Ring |
| 17 |
0434844 |
BEARING, Wrist pin This part replaces 0391480. |
| 18 |
0394488 |
CONNECTING RD ASSY. |
| 20 |
0396041 |
BEARING, Connecting rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
0394930 |
RING SET, Standard |
| 22 |
0396504 |
RING SET, .030 O.S |
| 23 |
0391481 |
PISTON Stbd., Std. |
| 23 |
0391653 |
PISTON Stbd., .030 O.S. |
| 23 |
5006659 |
Pstn&Ring Kit-Std This part replaces 0393566. |
| 23 |
5006660 |
Pstn&Ring Kit-.030 This part replaces 0393612. |
| 27 |
0314416 |
BUMBER, Advance screw |
