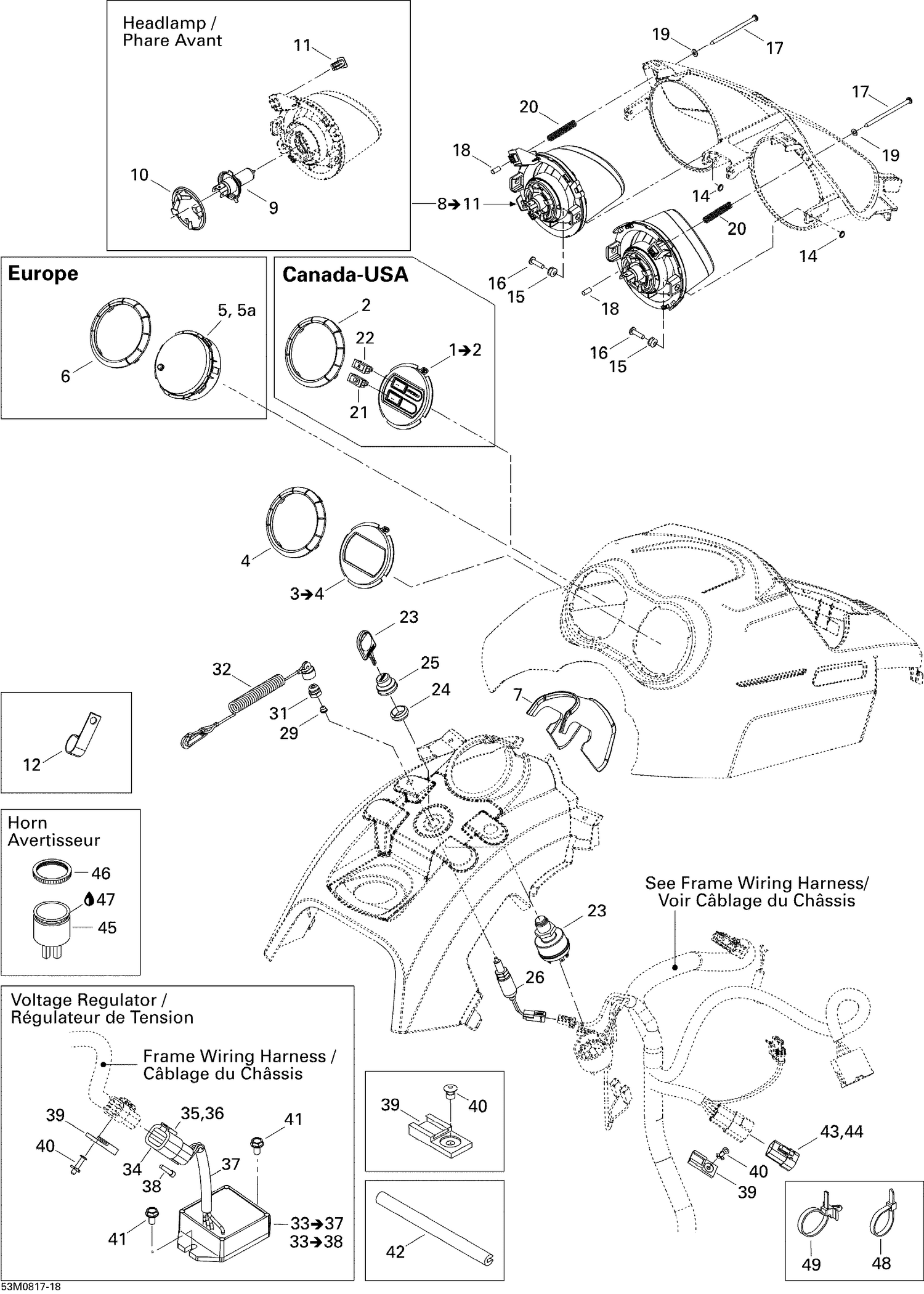

| Ref | Part Number | Description |
|---|
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 4 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
XXX |
Not Available As Spare Parts |
| 7 |
515176321 |
PROTECTOR - Call your local BRP dealership |
| 9 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 10 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 11 |
515176339 |
Plastic Insert |
| 12 |
515176457 |
Clamp |
| 14 |
389804300 |
Push Nut |
| 15 |
515176289 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 16 |
390906200 |
FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 17 |
250000244 |
PHILLIPS SCREW #8 X 3 - Call your local BRP dealership |
| 18 |
515176370 |
Cap |
| 19 |
234051600 |
Flat Washer M5, Stainless |
| 20 |
515176353 |
SPRING - Call your local BRP dealership |
| 21 |
515175726 |
PILOT LAMP, HEADLAMP - Call your local BRP dealership |
| 22 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 23 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership |
| 24 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 25 |
570013700 |
Switch Boot |
| 26 |
515175653 |
Brake Switch |
| 29 |
570151100 |
Plunger Cap |
| 31 |
515145900 |
Switch Nut |
| 32 |
515178283 |
Cap Ass'y This part replaces 515176463. |
| 34 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 35 |
515175568 |
Male Terminal |
| 36 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 37 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 38 |
XXX |
Not Available As Spare Parts |
| 39 |
270000141 |
Clip This part replaces 515175917. |
| 40 |
293150037 |
Avdel Rivet 3/16" |
| 41 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 42 |
509000263 |
TRIM - Call your local BRP dealership |
| 43 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 44 |
278001474 |
Female Lock, 4 Circuits |
| 45 |
515176035 |
HORN - Call your local BRP dealership |
| 46 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 47 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 48 |
293750002 |
Tie Wrap 142 mm |
| 48 |
293750008 |
Tie Wrap 368 mm |
| 48 |
414115200 |
Tie-Rap 180 mm |
