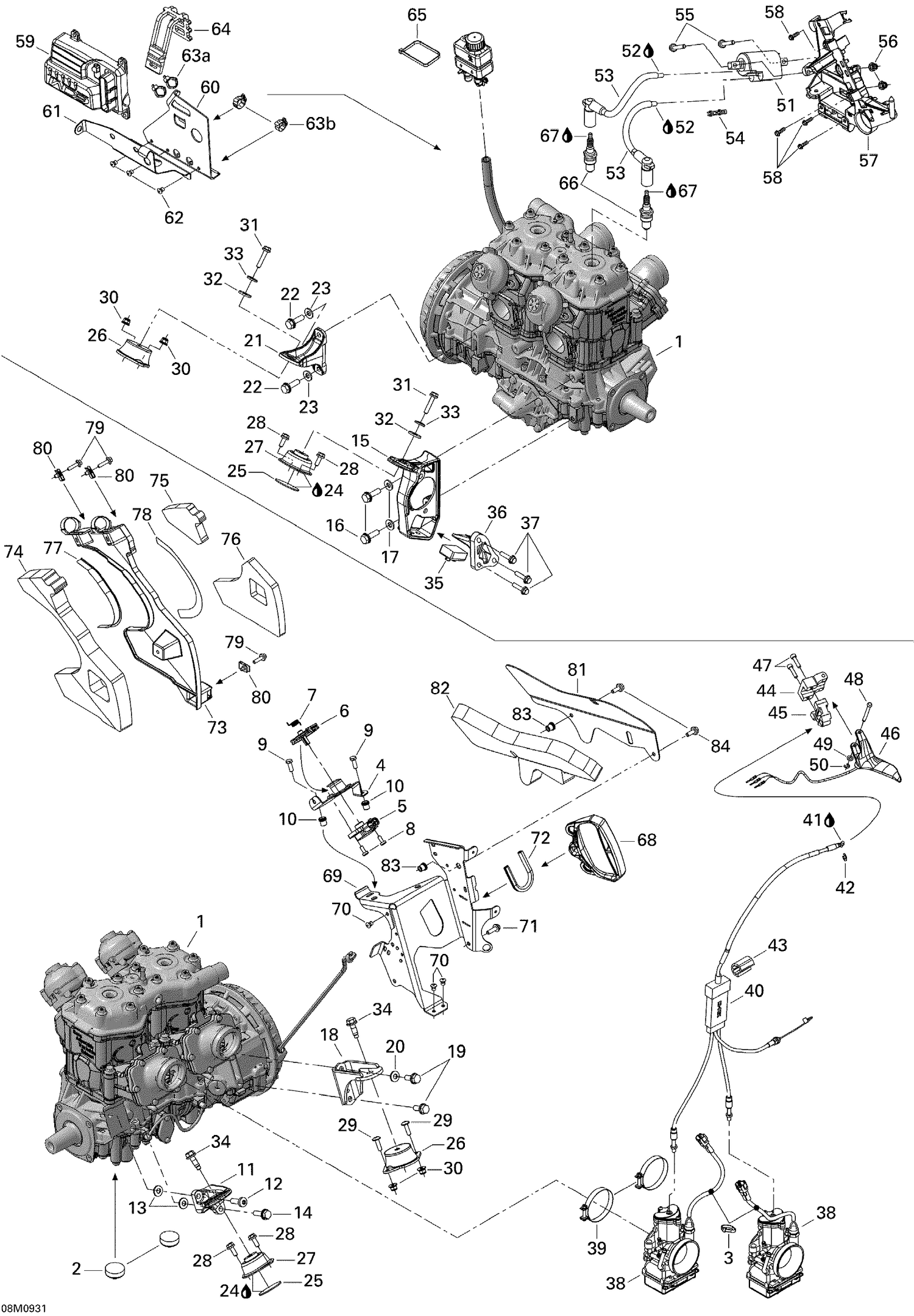

| Ref | Part Number | Description |
|---|
| 1 |
400604037 |
Engine 593 RS |
| 2 |
512059738 |
Stopper |
| 3 |
414115200 |
Tie-Rap 180 mm |
| 4 |
512060336 |
TPS SUPPORT - Call your local BRP dealership |
| 5 |
404162079 |
Sensor Ass'y |
| 6 |
512060335 |
CAP CAM - Call your local BRP dealership |
| 7 |
512060351 |
CAM SPRING - Call your local BRP dealership |
| 8 |
208651241 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 9 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 10 |
293450275 |
Insert This part replaces 415107300. |
| 11 |
512060478 |
Rear Support, PTO This part replaces 512060173. |
| 12 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 13 |
234281474 |
Conical Spring Washer M8 |
| 14 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 15 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060203. |
| 16 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 17 |
234281474 |
Conical Spring Washer M8 |
| 18 |
512060495 |
REAR MAG SUPPORT - Call your local BRP dealership |
| 19 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 20 |
234281474 |
Conical Spring Washer M8 |
| 21 |
512060108 |
FRONT SUPPORT, MAG - Call your local BRP dealership |
| 22 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 23 |
234281474 |
Conical Spring Washer M8 |
| 24 |
293800021 |
ADHESIVE LOCTITE 495 - Call your local BRP dealership |
| 25 |
512060410 |
RUBBER WASHER - Call your local BRP dealership |
| 26 |
512060360 |
Rubber Mount |
| 27 |
512060385 |
Rubber Mount |
| 28 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 29 |
250000770 |
Hex. Socket Screw M6 X 20 This part replaces 250000335. |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 31 |
207583086 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 32 |
503183200 |
Yellow, Washer |
| 33 |
234281474 |
Conical Spring Washer M8 |
| 34 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000361. |
| 35 |
512060179 |
STOPPER - Call your local BRP dealership |
| 36 |
512060576 |
Stopper Support This part replaces 512060489. |
| 37 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 38 |
403138808 |
CARBURATOR TMX38-69 - Call your local BRP dealership |
| 39 |
512059835 |
Gemi Clamp |
| 40 |
512060550 |
THROTTLE CABLE - Call your local BRP dealership This part replaces 512060487. |
| 41 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 42 |
414274500 |
Circlip |
| 43 |
512060313 |
Protector |
| 44 |
512059538 |
UPPER HOUSING - Call your local BRP dealership |
| 45 |
512059537 |
Lower Housing |
| 46 |
512060431 |
HANDLE ASS'Y - Call your local BRP dealership |
| 47 |
205052544 |
Socket Screw M5 X 25 |
| 48 |
414438700 |
Lever Pin |
| 49 |
234051600 |
Flat Washer M5, Stainless |
| 50 |
293370050 |
Circlip |
| 51 |
512059968 |
Ignition Coil |
| 52 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 53 |
512060291 |
Cable |
| 54 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 55 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 56 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 57 |
512060925 |
COILS SUPPORT - Call your local BRP dealership This part replaces 512060350. |
| 58 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 59 |
512060443 |
Calibrated Module |
| 60 |
512060337 |
ECM SUPPORT - Call your local BRP dealership |
| 61 |
512060379 |
TANK SUPPORT - Call your local BRP dealership |
| 62 |
390909200 |
Avex Rivet |
| 63a |
414115200 |
Tie-Rap 180 mm |
| 63b |
293650172 |
Tridon Gear Clamp |
| 64 |
570069700 |
LATCH - Call your local BRP dealership |
| 65 |
414115200 |
Tie-Rap 180 mm |
| 66 |
512059552 |
Spark Plug NGK BR9ECS-5 |
| 67 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 68 |
512060136 |
Starter Grip |
| 69 |
512060491 |
Grip Support - Call Your Local BRP Dealership |
| 70 |
390909200 |
Avex Rivet |
| 71 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 72 |
219704405 |
TRIM 30000MM LONG - Call your local BRP dealership |
| 73 |
512060339 |
NOISE SHIELD - Call your local BRP dealership |
| 74 |
512060343 |
Interior Noise Foam |
| 75 |
512060344 |
Upper Exterior Noise Foam |
| 76 |
512060362 |
LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership |
| 77 |
512060574 |
Heat Shield This part replaces 512060358. |
| 78 |
512060575 |
Heat Shield This part replaces 512060371. |
| 79 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 80 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 81 |
512060492 |
REAR NOISE SHIELD - Call your local BRP dealership |
| 82 |
512060381 |
Rear Noise Foam |
| 83 |
293450275 |
Insert This part replaces 415107300. |
