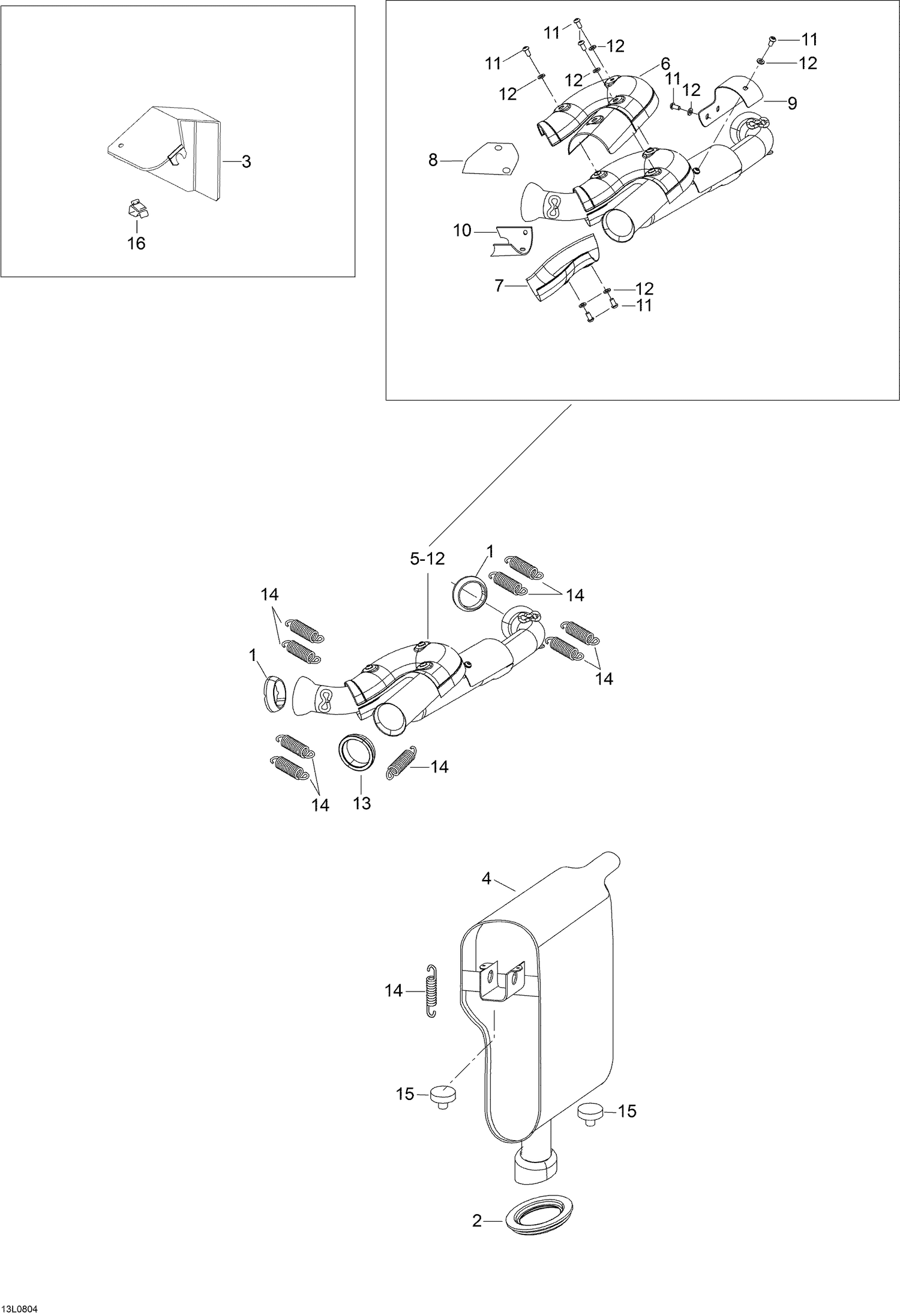

| Ref | Part Number | Description |
|---|
| 1 |
514054174 |
Exhaust Gasket |
| 2 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 3 |
605352345 |
Heat Protector |
| 4 |
605252818 |
MUFFLER_EXHAUST - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Heat protector |
| 7 |
Not |
Available As Spare Part - Heat protector |
| 8 |
Not |
Available As Spare Part - Heat protector |
| 9 |
Not |
Available As Spare Part - Heat protector |
| 10 |
Not |
Available As Spare Part - Heat protector |
| 11 |
250000436 |
Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 12 |
M20032 |
WASHER - Call your local BRP dealership |
| 13 |
514054174 |
Exhaust Gasket |
| 14 |
415107100 |
Spring |
| 15 |
514053654 |
Rubber Bumper |
