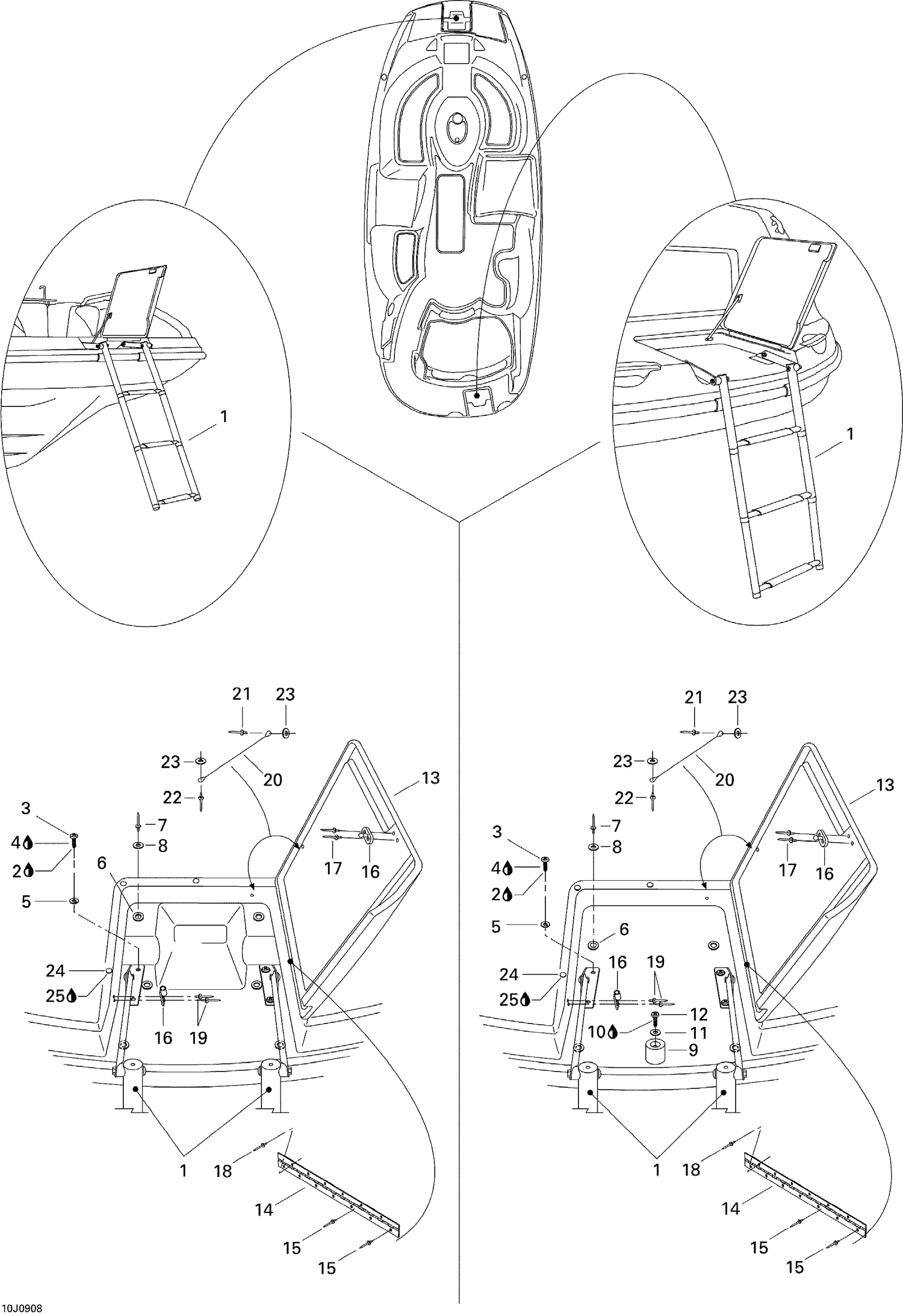

| Ref | Part Number | Description |
|---|
| 1 |
204071530 |
LADDER, 3 STEPS - Call your local BRP dealership |
| 2 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 3 |
208663060 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
234161601 |
Lock Washer Helical M6 |
| 6 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
| 7 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 8 |
234041600 |
Flat Washer 4 mm, Stainless |
| 9 |
204071720 |
RUBBER BUMPER - Call your local BRP dealership |
| 10 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 11 |
234042600 |
Flat Washer 4 mm, Stainless |
| 12 |
209643860 |
TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership |
| 13 |
204072580 |
Ladder Door |
| 14 |
204071811 |
LADDER DOOR HINGE - Call your local BRP dealership |
| 15 |
293150008 |
Pop Rivet 3/16" |
| 16 |
204070759 |
Door Catch |
| 17 |
293150015 |
Pop Rivet 1/8” |
| 18 |
293150088 |
Pop Rivet 3/16" |
| 19 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 20 |
204071498 |
RETAINER CABLE - Call your local BRP dealership |
| 21 |
293150039 |
Pop Rivet 3/16" |
| 22 |
293150043 |
Pop Rivet 3/16" |
| 23 |
234051600 |
Flat Washer M5, Stainless |
| 24 |
204070940 |
BUMPER - Call your local BRP dealership |
