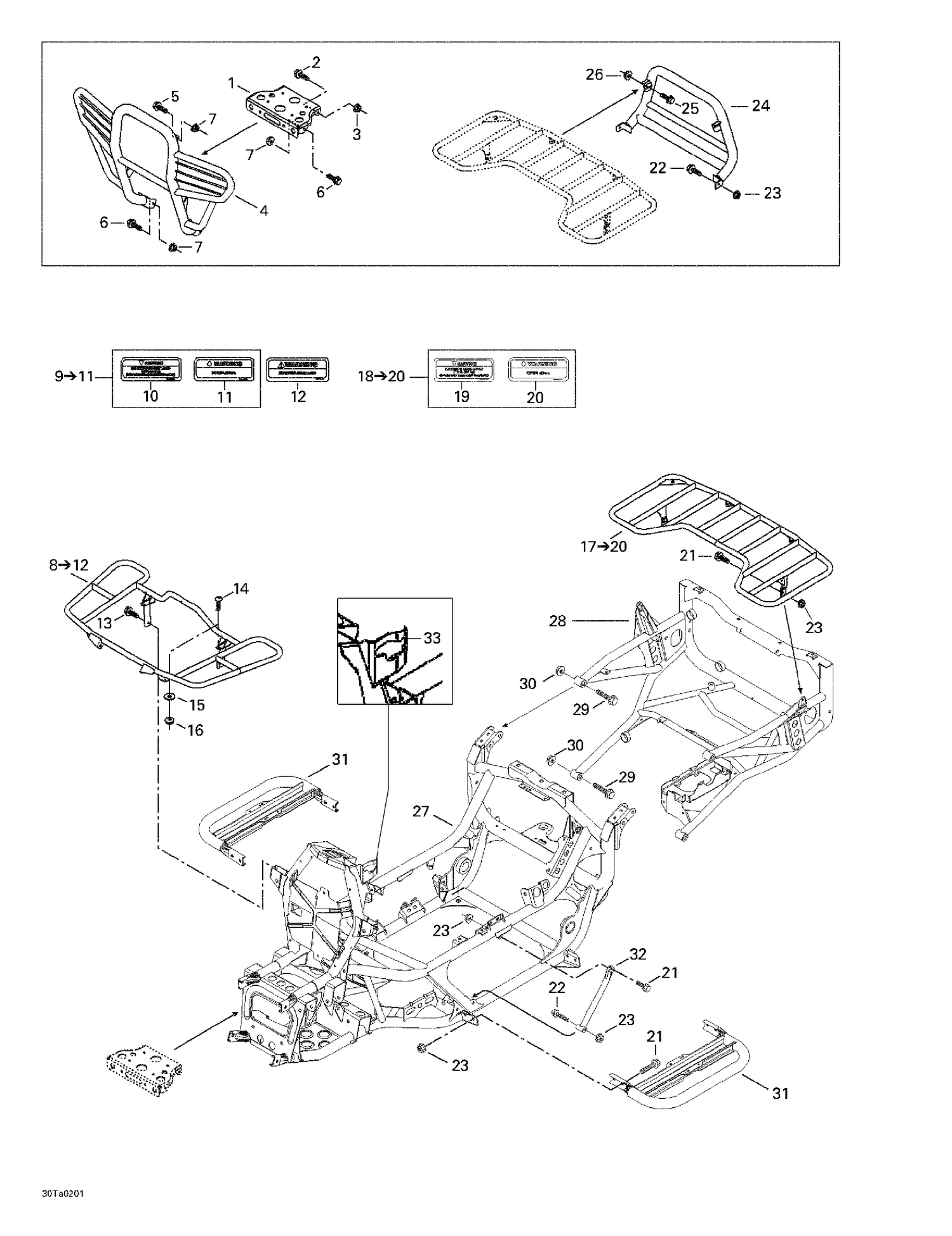

09- Frame And Luggage Racks
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705200196 | WINCH LATCH, BLACK - Call your local BRP dealership |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 705000175 | Front Bumper |
| 5 | 207682044 | Hex. Flange Screw M8 X 20 |
| 6 | 207682544 | Hex. Flange Screw M8 X 25 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 250000035 | TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 15 | 224060201 | Flat Washer |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 207682044 | Hex. Flange Screw M8 X 20 |
| 22 | 207685044 | Hex. Flange Screw M8 X 50 |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 705000166 | Rear Bumper |
| 25 | 207682046 | Hex. Flange Screw M8 X 20 |
| 26 | 233281416 | Hex. Elastic Flange Nut M8 |
| 27 | 705200411 | Frame |
| 28 | 705200254 | Frame Extention |
| 29 | 207605544 | Hex. Flange Screw M10 X 55 |
| 30 | 233201414 | Hex. Flange Elastic Nut M10 |
| 31 | 705000008 | Footrest (silver) |
| 32 | 705200143 | Removable Brace, Black |
