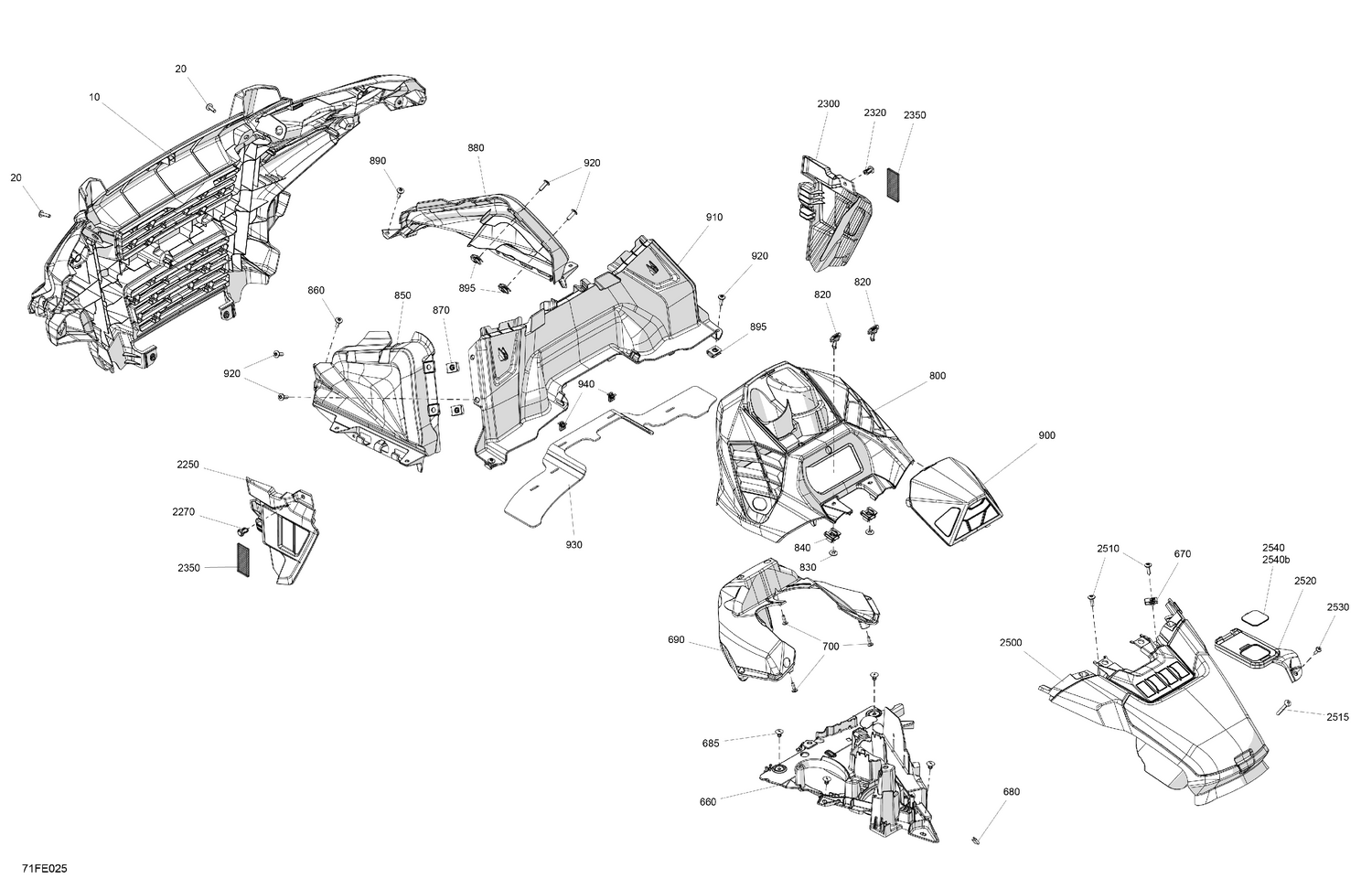

07- Body - Front Section
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705013201 | Front Grille |
| 20 | 250001257 | Screw Torx M6 X 20 |
| 660 | 705018661 | Multi Purpose Support |
| 670 | 250100198 | Panel Nut M6 X 1.0 |
| 680 | 414479100 | Clip |
| 685 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 690 | 705015046 | Dashboard Support |
| 700 | 250000720 | Torx Screw K50 X 16 |
| 800 | 705014246 | Dashboard |
| 820 | 708400278 | Quarter Turn |
| 830 | 708400286 | Washer |
| 840 | 708400285 | Clip |
| 850 | 705014883 | LH Radiator Guard |
| 860 | 250001257 | Screw Torx M6 X 20 |
| 870 | 250100208 | Panel Nut M6 X 1.0 |
| 880 | 705014884 | RH Radiator Guard |
| 890 | 250001257 | Screw Torx M6 X 20 |
| 895 | 250100208 | Panel Nut M6 X 1.0 |
| 900 | 705014967 | Filter |
| 910 | 709200935 | Rear Panel |
| 920 | 250001257 | Screw Torx M6 X 20 |
| 930 | 705017621 | Deflector |
| 940 | 517302785 | Edge Clip |
| 2250 | 705015256 | LH Front Radiator Deflector |
| 2270 | 293150230 | Tuflok Plastic Rivet |
| 2300 | 705015257 | RH Front Radiator Deflector |
| 2320 | 293150230 | Tuflok Plastic Rivet |
| 2350 | 520002680 | Amber, Reflector |
| 2510 | 250000712 | Torx Screw M6 X 20 |
| 2515 | 250000749 | Torx Truss Screw M6 X 50 |
| 2530 | 250000720 | Torx Screw K50 X 16 |
