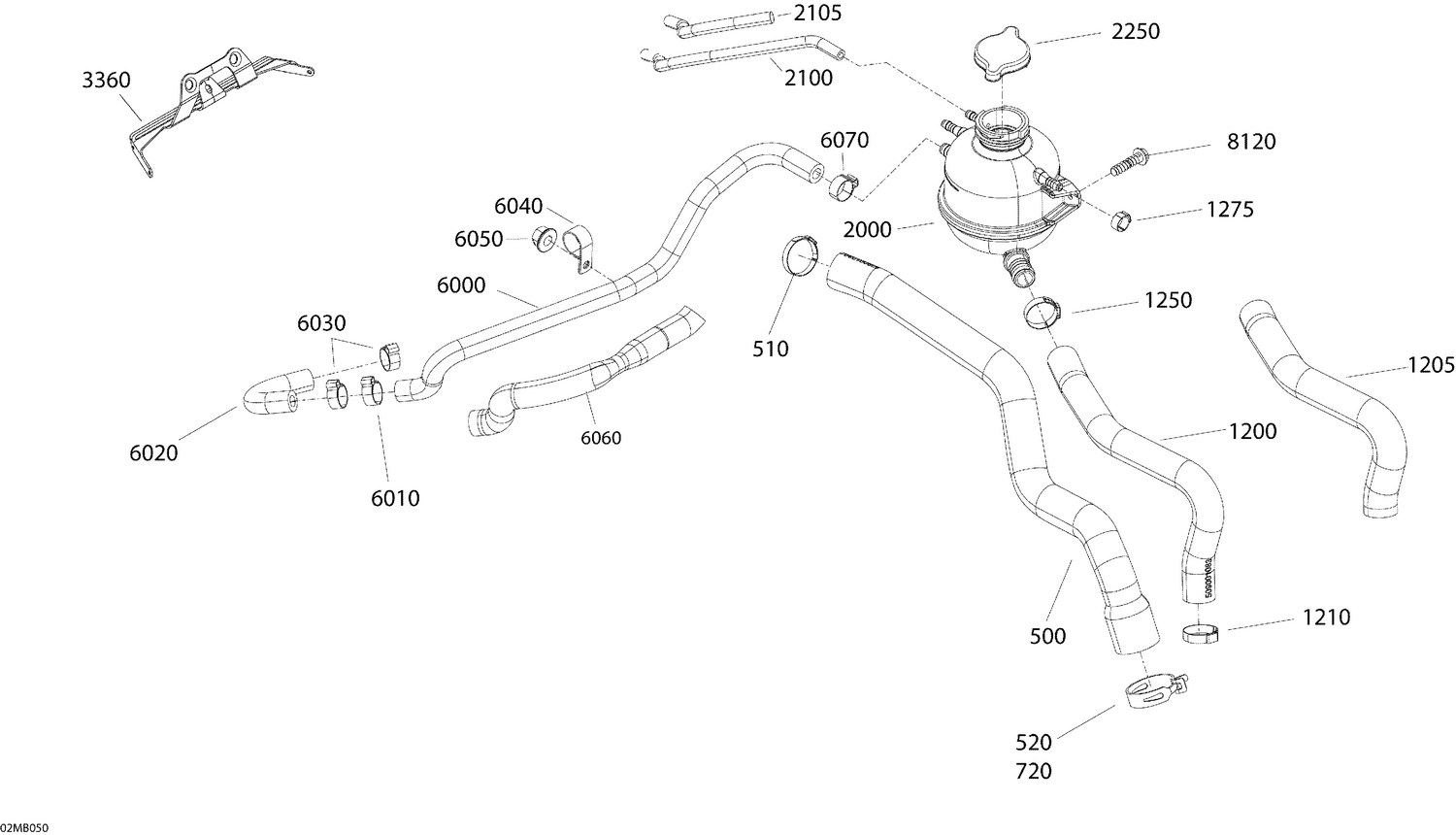

02- Engine - Cooling
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001079 | Hose Radiator In |
| 510 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 520 | 293650264 | Norma Spring Clamp |
| 720 | 293650264 | Norma Spring Clamp |
| 1200 | 509001083 | Coolant Tank Hose |
| 1205 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1210 | 293650099 | Crimp Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2000 | 509001012 | Cooling Tank |
| 2100 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 2105 | 503195447 | Protector Tube |
| 2250 | 509000180 | Radiator Pressure Cap |
| 6000 | 509001092 | Hose |
| 6010 | 293650011 | Oetiker Clamp |
| 6020 | 509001090 | Hose |
| 6030 | 293650011 | Oetiker Clamp |
| 6040 | 512061265 | Clamp |
| 6050 | 233061414 | Hex. Flange Nut M6 |
| 6060 | 219704350 | Tube 25Mm 1000Mm Long |
| 6070 | 293650011 | Oetiker Clamp |
