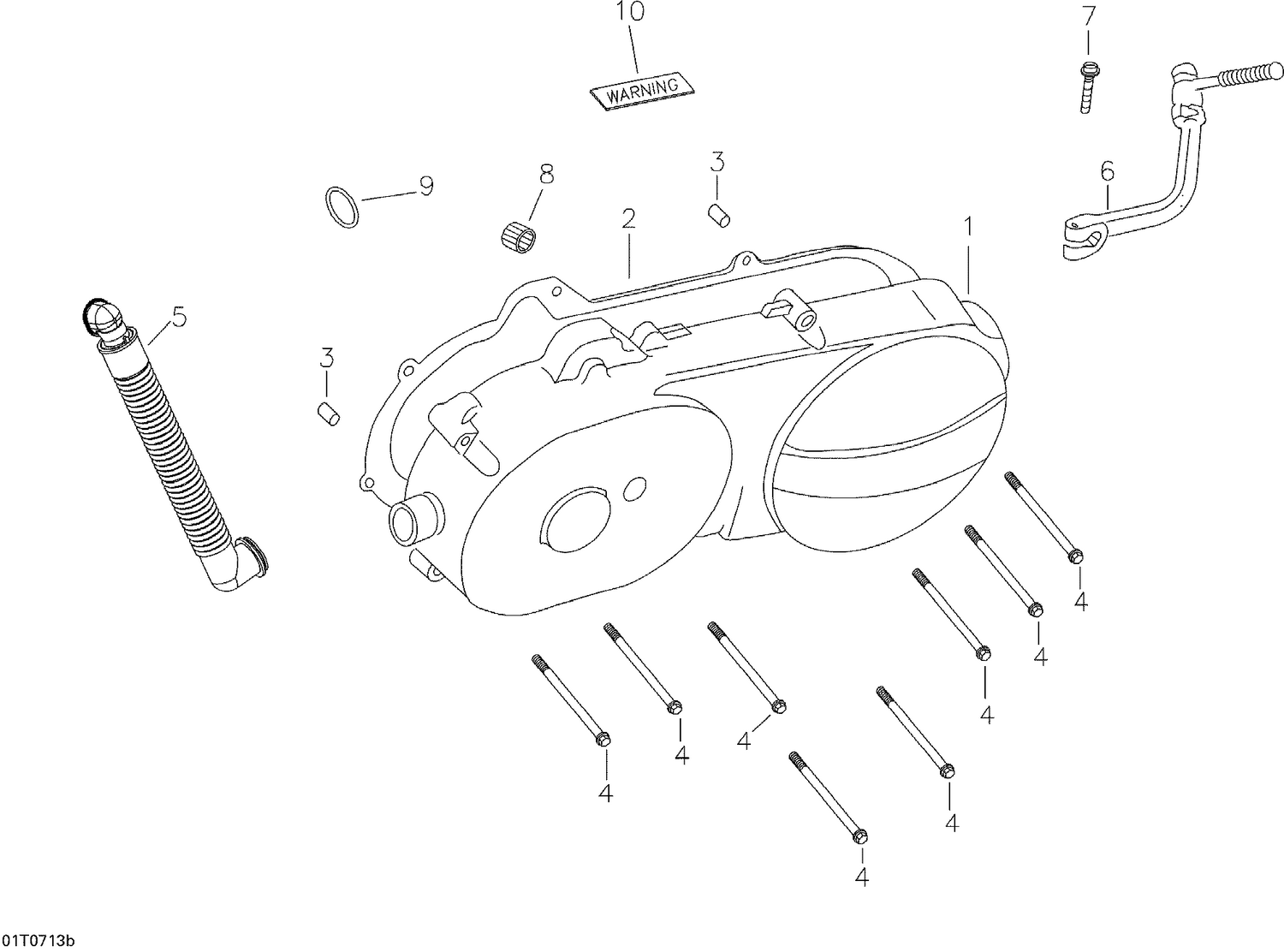

| Ref | Part Number | Description |
|---|
| 1 |
A11341175000 |
COVER LH - Call your local BRP dealership |
| 2 |
A11359133000 |
COVER GASKET - Call your local BRP dealership |
| 3 |
A9430108140 |
Dowel Pin |
| 4 |
A960000603508 |
HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership |
| 5 |
A11345238000 |
DUCT COVER LH - Call your local BRP dealership |
| 6 |
A28300175000 |
KICK STARTER ARM ASSY. - Call your local BRP dealership |
| 7 |
A960000602510 |
Hex. Washer Face Bolt M6 X 25 |
| 8 |
A96200081210 |
NEEDLE BEARING, HK8 X 12 X 10 - Call your local BRP dealership |
| 9 |
A9451031000 |
CLIP - Call your local BRP dealership |
