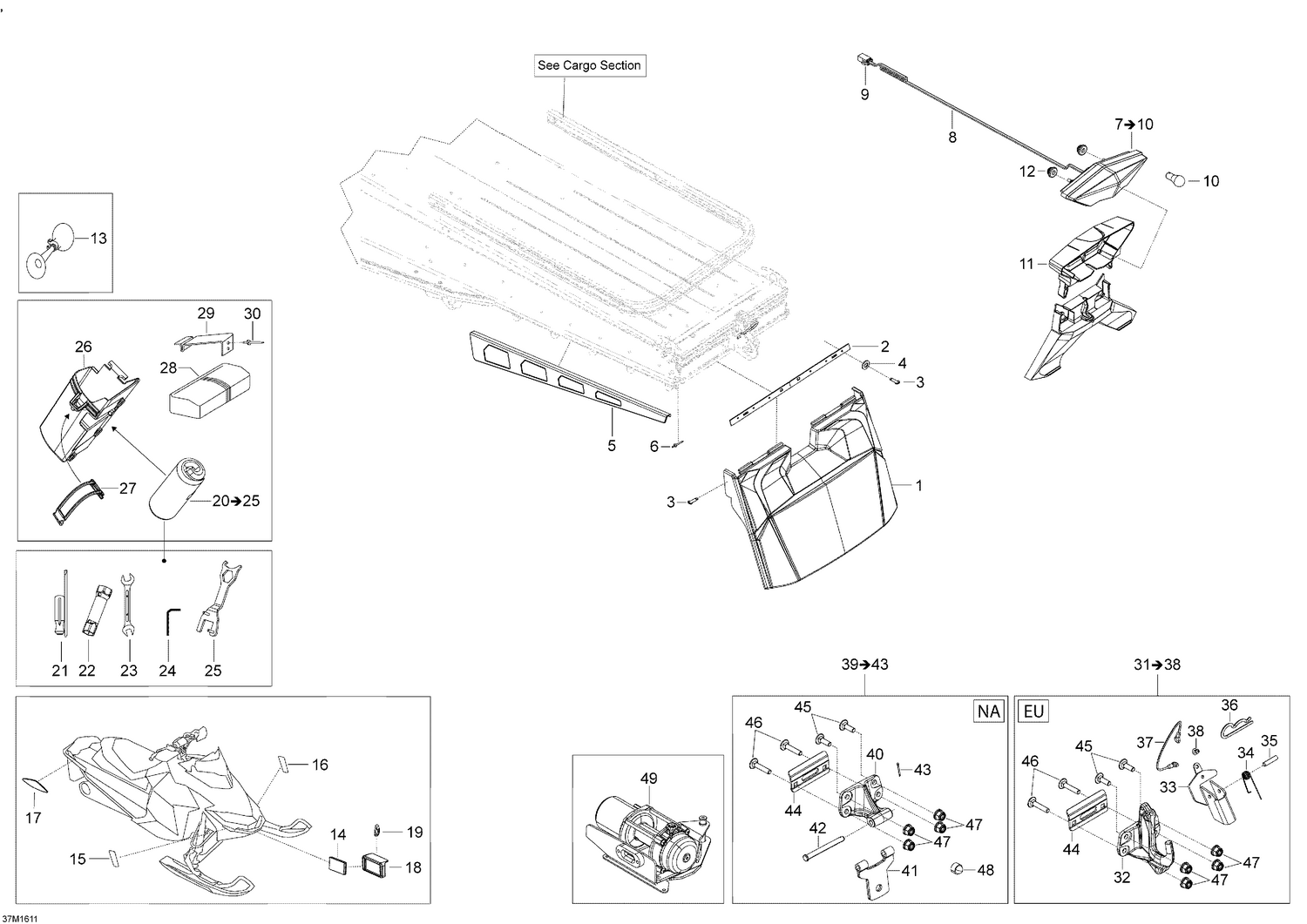

09- Utilities
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 520001021 | Plate |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 8 | 520000849 | Rear Wiring Harness |
| 9 | 515175494 | Male Housing, 3 Circuits |
| 10 | 520000758 | Bulb |
| 11 | 511000764 | Rear Light Cover |
| 12 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 15 | 520001600 | Yellow, RH Reflector |
| 16 | 520001601 | Yellow, LH Reflector |
| 21 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 22 | 529000046 | Set Key, 16/21 mm |
| 23 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 24 | 520001142 | Spacing Tool |
| 25 | 520001442 | Wrench |
| 32 | Not | Available As Spare Part - Hook |
| 33 | Not | Available As Spare Part - Locking Plate |
| 34 | Not | Available As Spare Part - Spring |
| 35 | 41012 | Pin |
| 36 | 41029 | Hair pin |
| 37 | Not | Available As Spare Part - Retainer Cable |
| 38 | 390909100 | Avex Rivet |
| 40 | Not | Available As Spare Part - Tongue Body |
| 41 | Not | Available As Spare Part - Tongue |
| 42 | 560309200 | PIN-RETAINER - Call your local BRP dealership |
| 43 | 41031 | Cotter Pin |
| 44 | 520000727 | Plate |
| 45 | 207782544 | Carriage Bolt, M8 X 25 |
| 46 | 207784044 | Bolt Carriage M8 X 40 |
| 47 | 233281414 | Hex. Flange Elastic Nut M8 |
